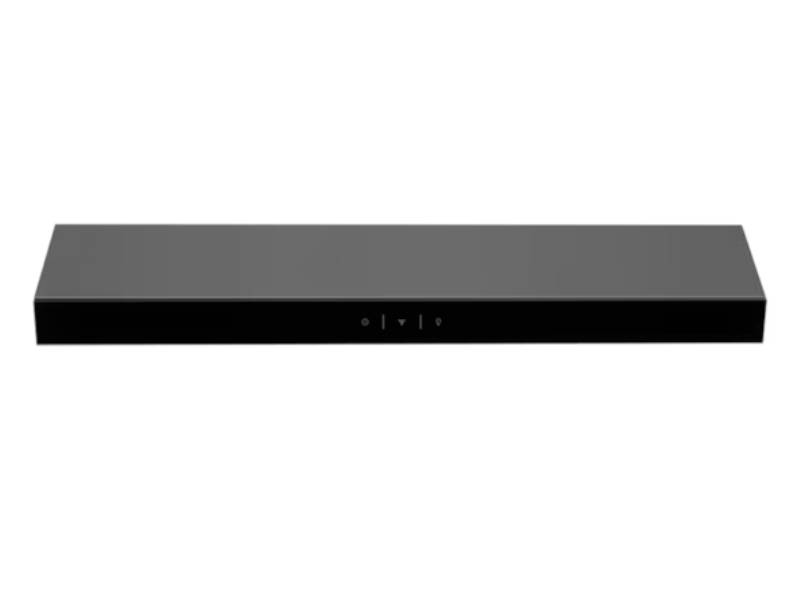

30" Frigidaire UnderCabinet Ventilation Hood - FCVW3062AD

30" Frigidaire Undercabinet Ventilation Hood - FCVW3062AS

30" Frigidaire UnderCabinet Ventilation Hood - FCVW3062AD

Authorized Dealer Price Match Guarantee
Price Match Guarantee
The Power Centre offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.
Price$629.00
Savings$80.00
Our Price $549.00 CAD

Or as low as $183.00/month over 3 months. Apply Now

Price$579.00
Savings$80
Our Price $499.00 CAD

Or as low as $166.33/month over 3 months. Apply Now

Price$629.00
Savings$80
Our Price $549.00 CAD

Or as low as $183.00/month over 3 months. Apply Now


Availability
Call for availability

Availability
Call for availability

Availability
Call for availability

More options
Literature

Features

Filter Indicator Light

Keep your range hood running smoothly with the indicator light that reminds you when it's time to change your carbon charcoal filter.

Carbon Charcoal Filter Included

Enjoy fresher air with the replaceable carbon charcoal recirculation filter, which captures odors and helps filter recirculated air from the exhaust fan.

Powerful Three Speed Ventilation Fan

Quickly move odors and steam away from the cooktop's surface with three levels of ventilation that recirculate air up to 330 CFM.

Bright LED Lighting

Get a clearer view of your cooktop with two LED lighting modes that illuminate the cooking surface.

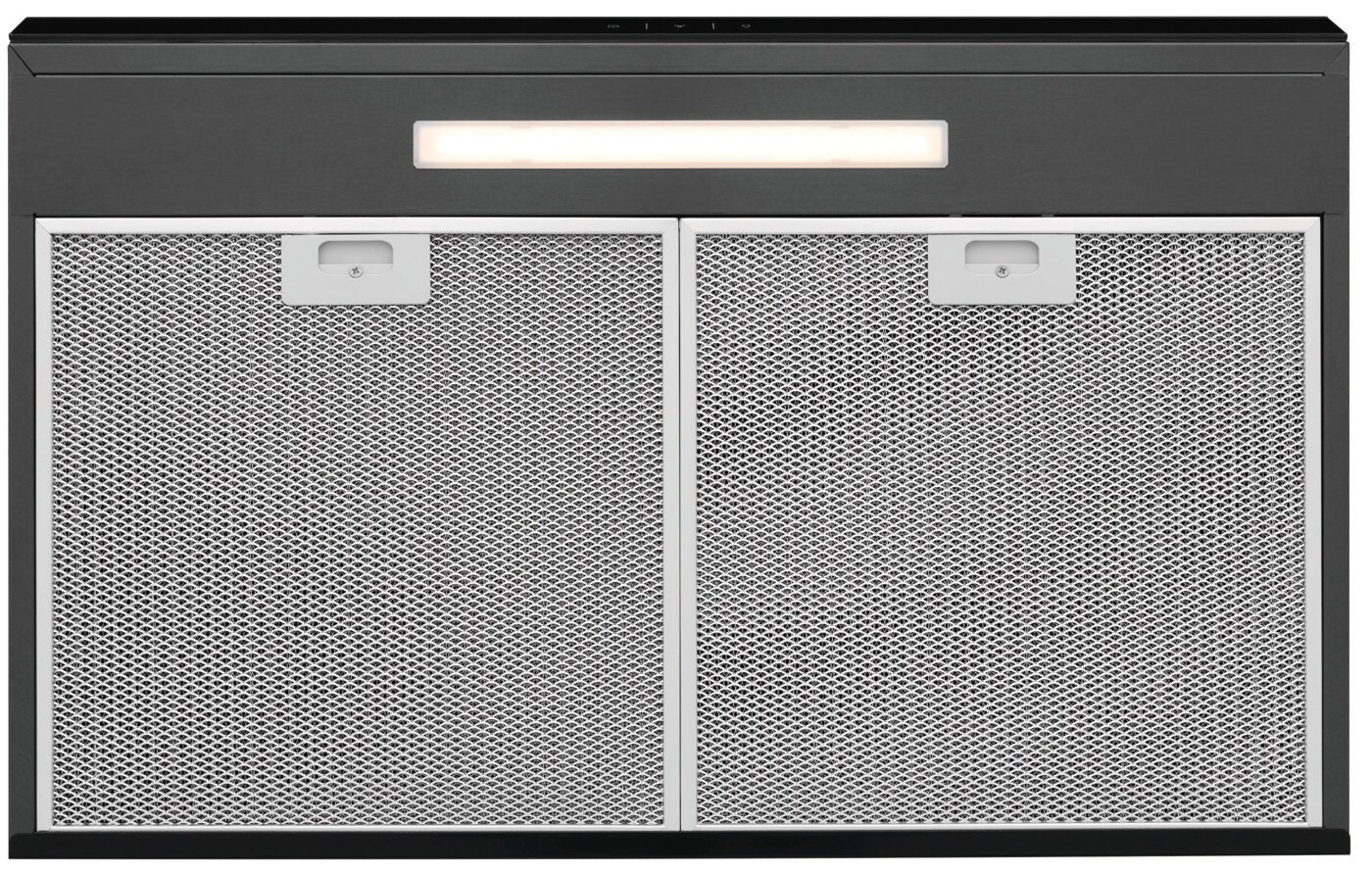

Dishwasher Safe Grease Filter

Easily clean the aluminum grease filter by putting it in the dishwasher.

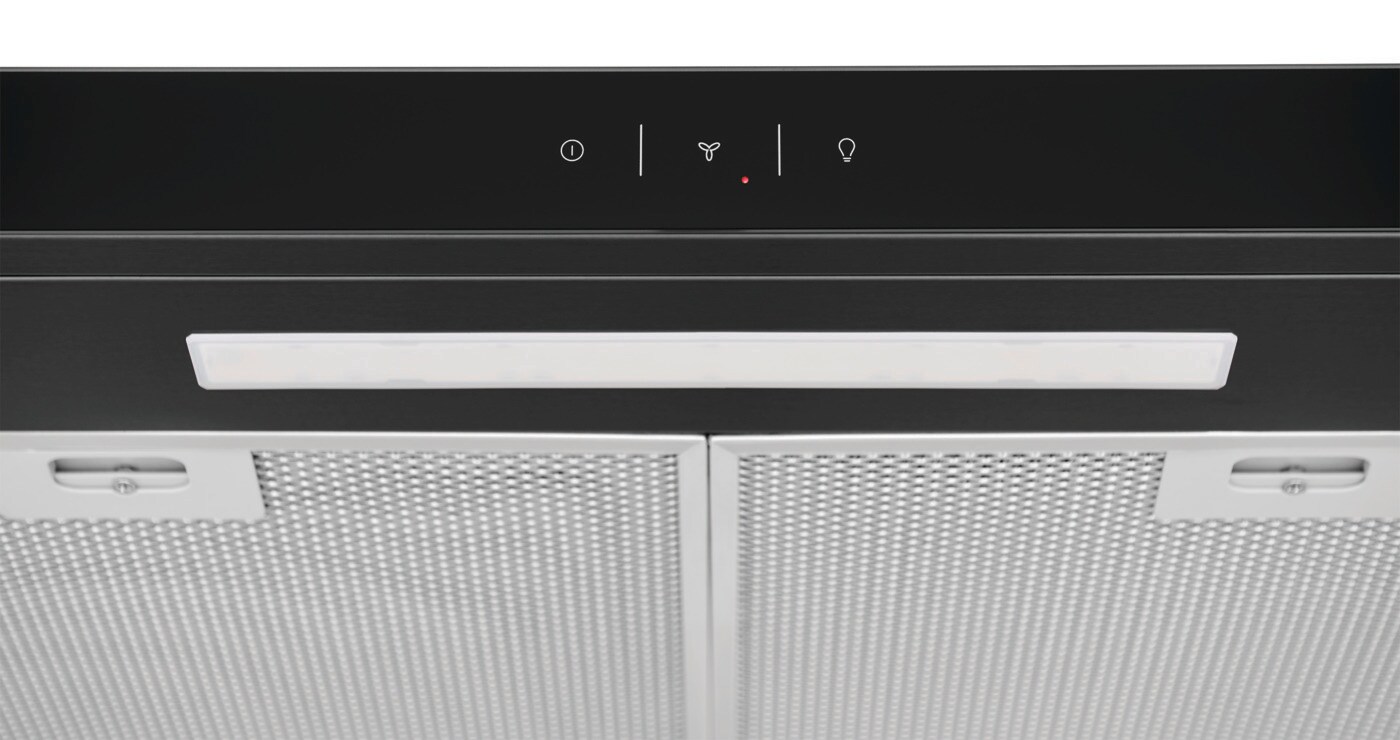

Capacitive Touch Control Panel

Easily adjust fan speed and lighting with responsive capacitive touch controls.

Convertible Design for Ducted or Ductless Installation

Designed to fit a variety of installation needs, this convertible range hood can be configured for ducted or ductless venting.

Convenient Operation with Power Button

Easily turn on/off the fan and light with the press of a button.

Stylish Built-in Look

Achieve a built-in look with this undercabinet vent made to coordinate with your existing range or cooktop.

VENTILATION SYSTEM
Ventilation Options Convertible
Grease Filter Dishwasher Safe Yes
Charcoal Filter Included Yes
Grease Filter Quantity 2
Grease Filter Type Aluminum Mesh
Grease Filter Included Yes
Minimum Sones Rating 1.7 sone
Minimum Air Flow Capacity 110 CFM
Maximum Sones Rating 10.1 sone
Maximum Air Flow Capacity 330 CFM
Exhaust Fan Speeds 3
Ductless Vent Yes - Out of the Box
Ducted Vent Optional (See Manual)
General Specifications
Warranty - Parts 1 Year
Warranty - Labor 1 Year
Prop 65 Label Yes
Product Weight 13 lbs
Installation
Power Supply Connection Type Hard Wired
Hardwired Yes
Duct Exit Location Top
ELECTRICAL SPECIFICATIONS
Watts @ 120 Volts 114 Watts
Voltage Rating 120 V
Dimensions and Volume
Depth 19 3/4
Width 30
Height 4 15/16
Surface Light System
Number of Light Settings 3
Number of Lights 1
Lighting Type LED Strip
CONTROLS
Filter Change Indicator Yes
Control Type Glass Touch
VENTILATION SYSTEM
Charcoal Filter Quantity 2
Certifications and Approvals
HVI Listed Yes
UL Listed Yes
cUL Listed Yes
