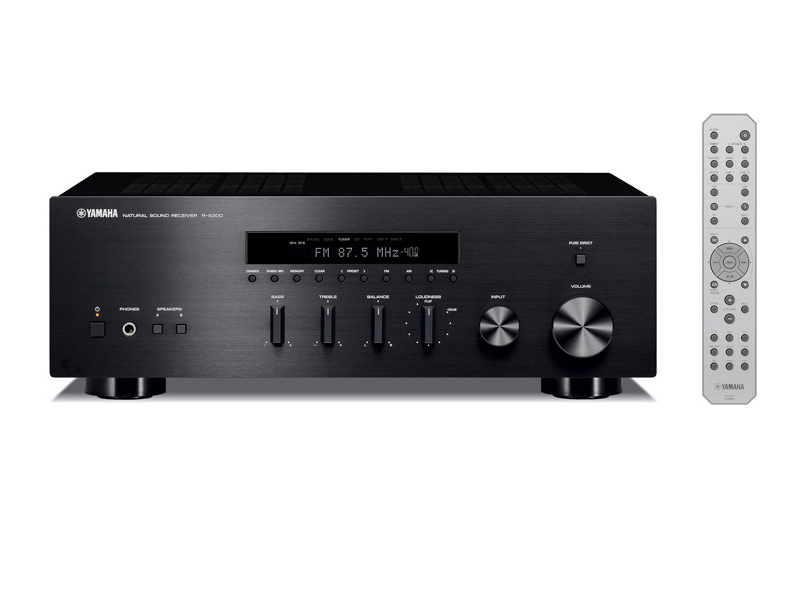

Yamaha Stereo Receiver With Aluminium-extruded Front Panel - RS300B

Authorized Dealer Price Match Guarantee
Price Match Guarantee
The Power Centre offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.
Our Price $499.95 CAD

Or as low as $166.65/month over 3 months. Apply Now


Availability
Call for availability

Literature

Overview

  • 55W x 2 (max), 50W x 2 (RMS) high power output
  • ART base chassis to minimise noise and vibration
  • Pure Direct for short and direct signal path
  • Aluminium-extruded front panel
  • Continuous Variable Loudness Control
  • Subwoofer out
  • Speaker A, B or A+B selection
  • 40-station FM/AM preset tuning

The Look and Texture of Quality

Offers the look and feel of the top-class A-S2000, with elegant aluminium front panel and silky touch volume/selector knobs. You can feel Yamaha’s commitment to quality when you touch the knobs.

Pure Direct

Music signals travel the shortest possible route, bypassing the buffer amp and tone, loudness and balance controls to virtually eliminate any signal degradation for the purest sound quality.

Highest Quality Parts

The quality of each individual part, as well as how they work together, basically determines the sound quality of any component. Yamaha uses only very high quality parts, carefully selected and tested.

New Speaker Terminals

These high grade speaker terminals have silver plating for best connection and outstanding durability. The pitch between jacks is wider for easier insertion.

Continuously Variable Loudness Control

Our ears lose sensitivity to high and low frequencies at low volume levels. This control lets you turn down the volume while maintaining the optimum frequency response.

Subwoofer Out

Subwoofer Out lets you connect a subwoofer for stronger bass and better overall sound quality.

Power management (Auto power off)

Auto Power Off automatically turns off the power after a certain amount of time to save energy.

New Remote Controls

The R-S300 come supplied with a slim remote unit whose button layout is both easy to understand and use.

Specifications
Maximum Power (4 ohms, 1kHz, 0.7% THD, for Europe)55 W + 55 W
Minimum RMS Output Power (8 ohms, 20 Hz-20 kHz)50 W + 50 W (0.04% THD)
High Dynamic Power/Channel (8/6/4/2 ohms)70/77/89/100 W
Total Harmonic Distortion (CD to Sp Out, 20 Hz-20 kHz)0.015% (25 W/ 8ohms)
Frequency Response10 Hz-100 kHz ±1 dB
Power Management (Auto Power Standby)Yes (4/6/12 hours)
Signal-to-Noise Ratio (CD)100 dB (Pure Direct On, 200 mV)
Audio In / Out5 / 2
FM Signal-to-Noise Ratio (Mono/Stereo)74 dB / 70 dB
Subwoofer OutYes
FM 50dB Quieting Sensitivity (IHF, 1 kHz, 100% Mod., Mono)3 µV (20.8 dBf)
Pure DirectYes
Standby Power Consumption0.5 W
Dimensions (W x H x D)435 x 151 x 387 mm
Weight8.8 kg
