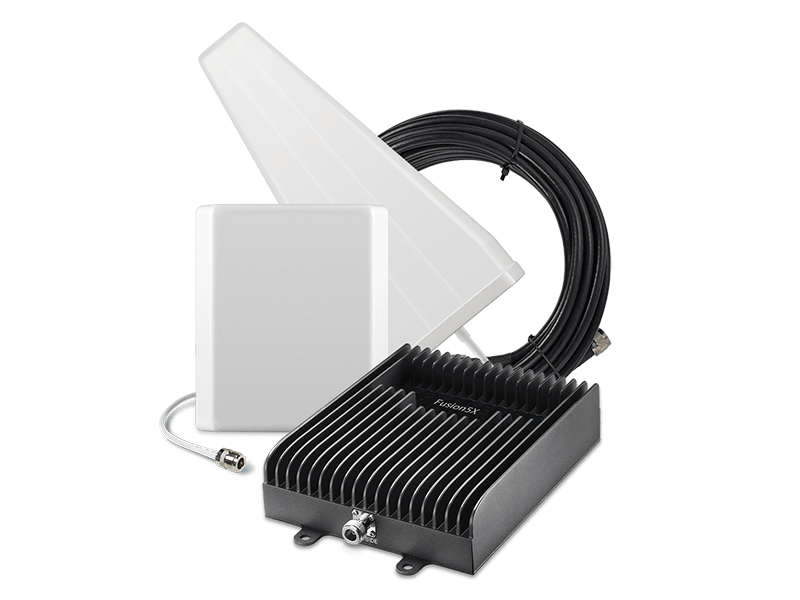

SureCall Fusion5X 2.0 Signal Booster - Fusion5X 2.0
Authorized Dealer
Price Match Guarantee
Voice, Text & 4G LTE Cell Phone Signal Booster for Large Residences and Mid-Sized Commercial Buildings
Large Home or Office Use
Boosts 3G & 4G LTE Signal
Auto-Adjusting Gain
SureIQ Technology
Designed for mid-sized commercial buildings and large residences, Fusion5X 2.0™ increases voice, text and 4G LTE signals for all Canadian cell carriers and mobile devices. Configurable for all indoor environments, Fusion5X 2.0 reduces dropped & missed calls and improves 4G LTE data speeds to ensure everyone has a reliable connection to their mobile device.
Fusion5X 2.0 is the industry’s most powerful cellular signal booster in its class, covering up to 2X more area than the closest competitor. Its the chosen solution for mid- to large-size applications that need access to reliable voice, text, and data signals.
Maximum Coverage Area: +16 dBm downlink power for 2X more coverage area than the closest competitor.
SureIQ™ Technology balances incoming signals, preventing shutdown and maximizing performance in strong signal environments.
Remote Monitoring: Fusion5X 2.0 is compatible with SureCall Sentry™ which allows users and installers to monitor the booster’s performance, set up alert notifications via the app and adjust settings from anywhere, anytime.
24/7 Peak Performance: Auto-adjusting gain and SureIQ work together to ensure 24/7 uptime at peak performance.
- Boosts voice, text and 4G LTE signals for all Canadian cell carriers
- Reduces dropped & missed calls and extends battery life for all cellular devices
- 5G Phone Compatible - Boosts voice and 4G LTE data signals on 5G phones and devices
- Multiple kitting options offer the flexibility to customize installation in any building or floor plan
- Industry best 3-year warranty
| Specifications | |
|---|---|
| Uplink Frequency Range (MHz) | 698-716 / 776-787 / 824-849 / 1850-1915 / 1710-1755 (G Block Included) |
| Downlink Frequency Range (MHz) | 728-746 / 746-757 / 869-894 / 1930-1995 / 2110-2155 (G Block Included) |
| Supported Standards | CDMA, WCDMA, GSM, EDGE, HSPA+, EVDO, LTE and all cellular standards |
| Input/Output Impedance | 50 Ohm |
| Maximum Gain | 72 dB |
| Noise Figure | 8 dB |
| VSWR | ≤2.0 |
| AC Input | Input AC 110 V, 60 Hz / Output DC 12 V |
| Maximum Output Power | 1 Watt EIRP |
| Downlink Power | +16 dBm |
| Cable | SC-400 |
| RF Connectors | N-Female (both ends) |
| Power Consumption | <25W |
| Operating Temperature | -4ºF to +158ºF |
| Dimensions | 9.25" x 6.375" x 1.375" |
| Weight | 4 lb 4 oz |
