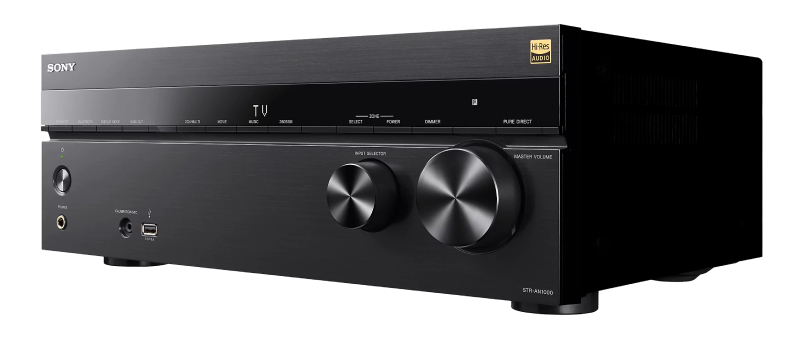

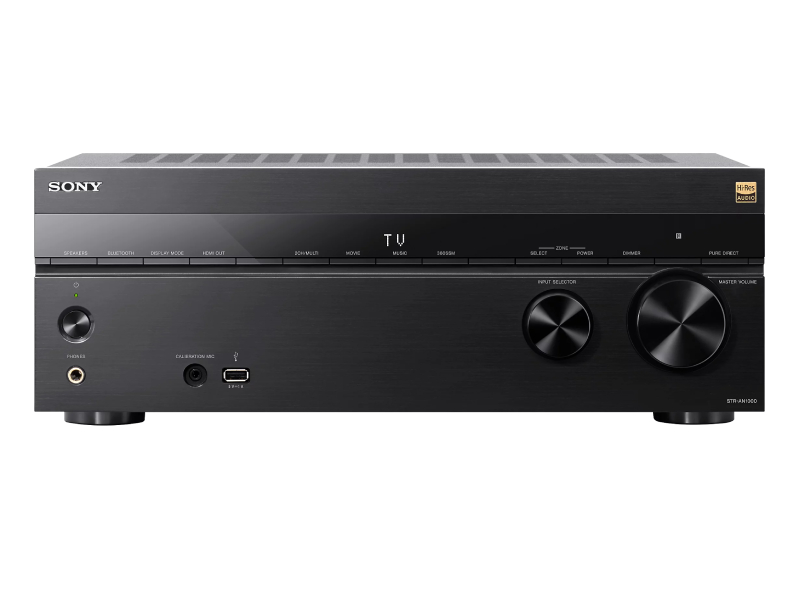

Featuring 360 Spatial Sound Mapping technology, the AN1000 gives you an immersive surround experience that is enabled by multiple phantom speakers.1 With D.C.A.C. IX Auto Calibration, it’s always optimized for the best sound setting for your room, resulting in a breathtaking cinematic sound experience at home. And thanks to DTS:X and Dolby Atmos support, the AN1000 delivers mighty, cinematic surround, right alongside stunning high-resolution music, streaming and smart integration.
360 Spatial Sound that adapts to your environment
D.C.A.C. IX ingeniously measures the height and position of each speaker with a calibration microphone.

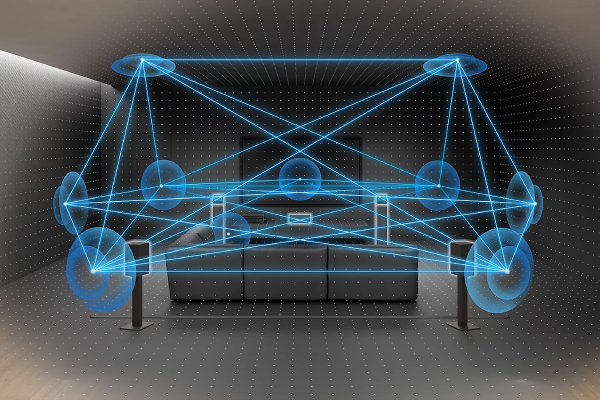

The AN1000 features 360 Spatial Sound Mapping technology to draw you into your entertainment like never before. Based on the positional information measured by D.C.A.C. IX, and multiple phantom speakers1 are generated all around you, for an entirely new sound sensation, so you can experience all the drama of Dolby Atmos® and DTS:X® alongside every breath, step and word like you’re right inside the film.
See vivid scenes full of real-life colour and depth. All of the original picture quality is preserved when played through the AN1000, so you’ll be completely immersed in movies. Gaming is also much more thrilling and realistic, with support for the latest formats, such as Variable Refresh Rate (VRR) and Auto Low Latency Mode (ALLM) in HDMI 2.1.
High quality sound
Enjoy music the way the artists truly intended with High-Resolution Audio for crystal-clear precision. Or discover a new way of listening with
360 Reality Audio5 for a truly immersive live concert or studio session experience. With the AN1000, your music comes to life like never before. It also supports DSD (Direct Stream Digital) native playback, with no conversion involved so DSD content can be fully enjoyed without losing any of the original quality.
Best with Sony TVs

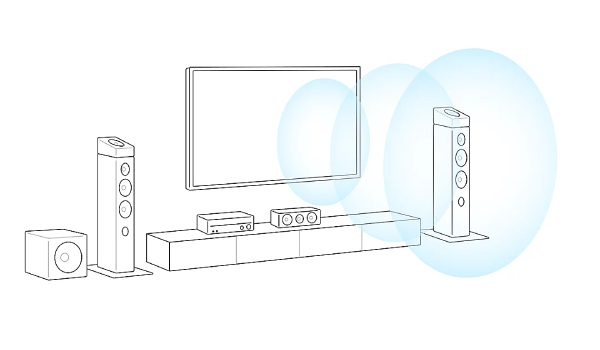

When connected to a BRAVIA TV with Acoustic Centre Sync3 4, both the audio system and the TV become the centre speaker in your home cinema system. With Acoustic Centre Sync, you’ll hear dialogue from the screen. Action and sound are precisely aligned so your viewing becomes much more immersive
High Quality Visuals
High Quality Sound
Best with Sony TVs
Designed for any TV
Easy access to music
Voice Assistant(works with)
360 Spatial Sound Mapping technology creates multiple phantom speakers from the real speakers with Dolby Atmos® and DTS:X.
The supplied calibration microphone and latest-generation D.C.A.C. IX auto calibration allows the AN1000 to measure 3D position of the speakers.
All of the original picture quality is preserved when played through the AN1000.
Immerse yourself in supreme music quality with support of 360 Reality Audio and High-Resolution Audio.
When connected to a BRAVIA TV with Acoustic Centre Sync, both the audio system and the TV become the centre speaker in your home cinema system.
Compatible with Sony’s wireless subwoofer and rear speakers.
|Size & Weight|
|Weight (kg)||9.4 kg|
|Dimensions (Wx Hx D mm)||430 x 156 x 331 mm|
|Dimensions (Wx Hx D inches)||17 x 6.25 x 13.13|
|Weight (pound)||20 lb ,12 oz|
|GUI (Graphical User Interface)||Yes|
|Power Requirement||120V 60Hz|
|Number of Amp. Channels||7ch|
|Number of Decodable channels||7.1ch|
|Power Output||120W + 120W (6 ohms ,1Khz , THD 0.9%)|

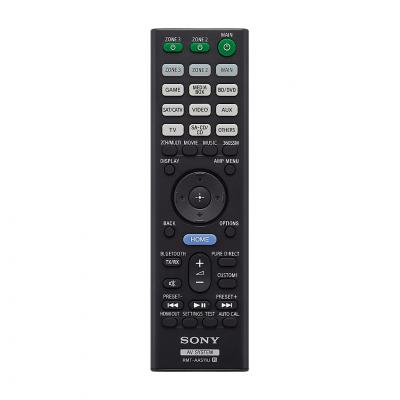

|What's in the box||Calibration microphone(Stereo) , Calibration mic stand , FM wire antenna , Remote control ,R03 (size AAA) batteries|
|Sound Field||2ch Stereo, Direct, Auto Format Decoding, Multi Stereo, Auto Format Decoding for Movie, Dolby Mode, DTS:X Mode, Audio Enhancer, Headphone(2ch)|
|Sound Enhancement technologies||Acoustic Centre Sync, DSEE Ultimate, DSD Native Playback, Pure Direct, In-Ceiling Speaker Mode, Centre Speaker Lift Up|
|Virtual Surround Technology||360 Spatial Sound Mapping, Phantom Surround Back, Speaker Relocation|
|360 Reality Audio||Yes|
|High Resolution Audio||Yes|
|High Resolution Audio Wireless||Yes|
|Decoding Format for HDMI||DSD, LPCM, Dolby Atmos, Dolby TrueHD, Dolby Digital Plus, Dolby Digital, DTS: X, DTS HD MA / DTS HD HR, DTS|
|Hi-Res Format||DSDIFF (DSD): Up to 11.2 MHz, DSF: Up to 11.2 MHz, WAV (LPCM), AIFF (LPCM), FLAC, ALAC|
|Calibration Features||D.C.A.C. IX, Automatic Phase Matching|
|4K 120 support||Yes (GAME, MEDIA BOX)|
|8K 60 Support||Yes (GAME, MEDIA BOX)|
|HDMI® Pass Through||Yes (HDR10, Hybrid Log Gamma, Dolby Vision)|
|Video Up Scaler||Yes (up to 4K/8K)|
|A/V SYNC||Yes (Variable)|
|Audio Return Channel||Yes (eARC/ARC)|
|BRAVIA® SYNC™ (CEC Control)||Yes|
|HDMI Pass through||Yes|
|Features Specified in HDMI||VRR , ALLM|
|Features for PlayStation®5|
|AUTO HDR TONE MAPPING COMPATIBLE (PASS-THROUGH)||Yes|
|AUTO GENRE PICTURE MODE COMPATIBLE (PASS-THROUGH)||Yes|
|Preset Channel(FM/AM)||TTL30 (30/0)|
|Custom Install and Control Features|
|Zone3 Audio||Speaker (variable)/ Line (variable,Fixed)|
|IR Repeat (IN/OUT)||Yes(1/1)|

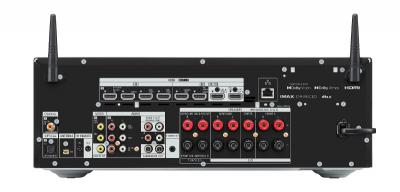

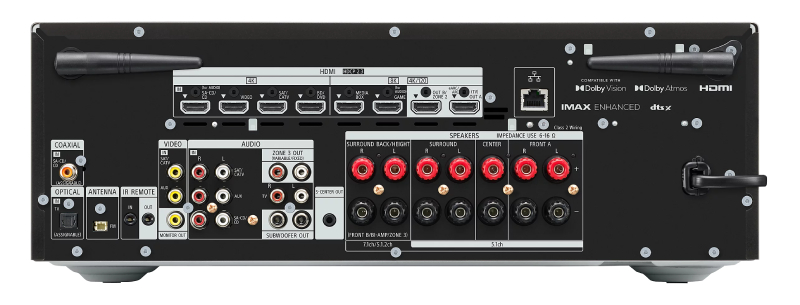

|Audio Input||Opt: 1, Coax: 1, Analogue Audio In: 4|
|Audio Output||Headphone Out, Pre Out (Subwoofer): 2, S-Centre out for Acoustic Centre Sync|
|Speaker Output Terminals||Front A, Centre, Surround, Surround Back / Height (Front B / Bi-AMP / Zone 3)|
|Video Input||HDMI: 6, Composite: 2|
|Voice Control||Yes(Works with Google home)|
|Works with Sonos||Yes|
|DLNA||DMP , DMR|
|Video Output||HDMI: 2, Composite Monitor Out: 1|
|HDMI™ HDCP version||HDCP2.3|
|Other Input/Output||Wireless speakers option, Bluetooth Receiver, Bluetooth Transmitter, Wi-Fi, Ethernet Port: 1, USB: 1|
