Paradigm CI Home Series LCR In-Wall Speaker - CI Home H55-LCR v2

Authorized Dealer Price Match Guarantee
Price Match Guarantee
The Power Centre offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.
Our Price $399.99 CAD / Each

Availability
Call for availability

Literature

The Affordable Audiophile Collection. Your "Go-To" Custom Install Speaker. The CI HOME series address the important considerations when selecting custom installation speakers: truly superior sound, trickle-down technologies, easy installation, and a bezel-free micro-perf grille with an incredibly discreet aesthetic.



Paradigm's Exclusive Perforated Phase-Aligning (PPA™) Tweeter Lens

protects the delicate tweeter dome. PPA™ technology acts as the Phase Plug, blocking out-of-phase frequencies for smoother, extended high frequencies with incredible detail and higher output. Ferro-fluid damped and cooled to ensure smooth high-frequency performance with amazing clarity across a wide listening area.



Dual Directional Soundfield™

30°-Angled Guided Soundfield™



Dual-Directional Soundfield™ & 30°-Angled Guided Soundfield™ Models

Our Stereo/Mono (SM) systems offer rich pure-fidelity dual-channel L/R sound from a single speaker. The Dual Directional Soundfield™ provides wider-than-normal dispersion making the systems ideal in small rooms that are less suited to a stereo pair, or where a single speaker is preferred.

Drivers in our 30°-Angled Guided Soundfield™ sit at a 30° angle from the ceiling, enabling you to adjust the direction of the sound, without compromising the curial sound dispersion pattern between drivers and baffle, thereby preserving sonic integrity. 30°-Angled Guided Soundfield™ systems are ideal as front speakers and as surround and/or rear speakers in a home theatre system.



Superior Mineral-filled Polypropylene Bass/ Midrange Cones: Oversized computer optimized ferrite magnets and high-power motor structures deliver detailed midrange performance with clean, extended bass.



Easy-access binding posts: High-quality binding posts feature a larger wire access hole and connect via banana plug, pin or bare wire.



Magnetically attached grilles: neodymium magnets hold grilles firmly in place.

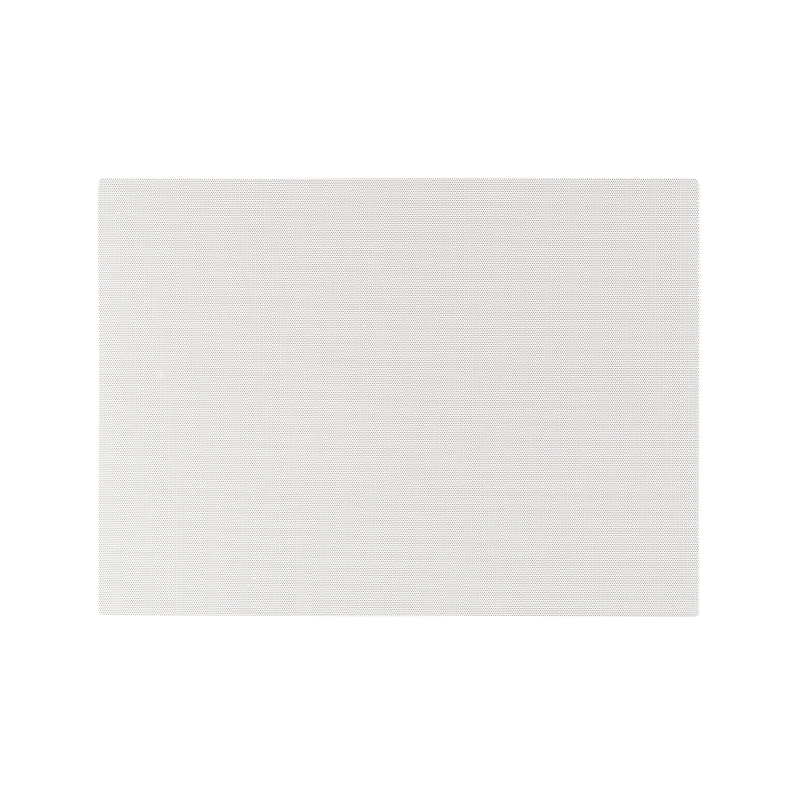

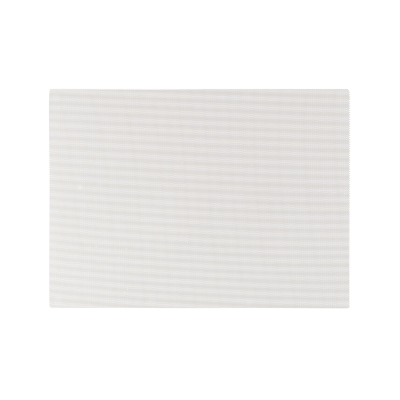

Bezel-Free, Micro-Perf Grilles allow you to mix and match CI Home, CI Pro and CI Elite Series for a seamless aesthetic from room-to-room!


Specifications
DESIGN3-driver, 2-way in-wall left/center/right, ABS chassis & mounting clamps
CROSSOVER2nd-order electro- acoustic at 2.5 kHz
FREQUENCY RESPONSE ON-AXIS±2 dB from 75 Hz - 20 kHz
HIGH FREQUENCY DRIVER3/4" (1.9cm) Exclusive Perforated Phase-Aligning (PPA™) Tweeter Lens
MID/BASS FREQUENCY DRIVERTwo 5.5" (13.9cm) Mineral-filled Polypropylene Cone
LOW FREQUENCY EXTENSION60 Hz
SENSITIVITY ROOM / ANECHOIC89 dB / 85 dB
FREQUENCY RESPONSE 30° OFF-AXIS±2 dB from 75 Hz - 15 kHz
SUITABLE AMPLIFIER POWER RANGE15-100 W
MAXIMUM INPUT POWER70 W
IMPEDANCECompatible with 8 ohms
WEIGHT5.9 lbs (2.7 kg)
FINISHESWhite, paintable grille, black speaker
ACCESSORIES (INCLUDED)PB-8X12N
CUT-OUT DIMENSIONS8-1/4" x 11-5/8" (20.9cm x 29.5cm)
MINIMUM MOUNTING DEPTH (DEPTH REQUIRED IS THE DISTANCE BETWEEN 1/2" DRYWALL, OR SIMILAR MATERIAL.)2-3/4" (7cm)
DIMENSIONS HXWXD (INCLUDES GRILLE).12-5/8" x 9-1/4" x 3-1/2" (32.1cm x 23.5cm x 8.8cm)
