The all-new HOOK Reveal makes fishing easier, delivering powerful performance with proven fish-finding tools including, Autotuning Sonar, SideScan and DownScan Imaging™ and now FishReveal™, which makes fish easier to see by combining the benefits of Lowrance CHIRP sonar and DownScan Imaging™ on one screen. Whether you’re fishing a local spot or unfamiliar water, find the best fishing areas with preloaded US Inland mapping or map uncharted water – in real time – with Genesis Live.

The all-new HOOK Reveal makes fishing easier, delivering powerful performance with proven fish-finding tools.

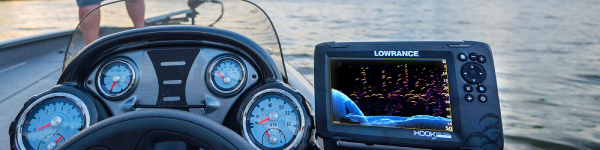

FishReveal

Fish are easier to find and easier to identify with FishReveal, which combines on one screen the proven performance of Lowrance CHIRP sonar and the high-resolution images of fish-holding structure from DownScan Imaging. Fish targets light up your display.

Genesis Live Real-Time Mapping

Create custom ½-foot contour maps of your local lake or uncharted water – in real time – on the display of your HOOK Reveal with Genesis Live.

Autotuning Sonar

Spend more time fishing and less time reworking your sonar settings with HOOK Reveal Autotuning sonar, which ensures you get the best sonar image every time by automatically adjusting settings as fishing conditions change.

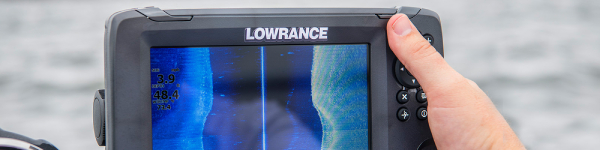

TripleShot™ High CHIRP Sonar with SideScan and DownScan Imaging™

Perfect for anglers who want all their sonar from a single transducer, TripleShot™ features the fish-finding capability of wide-angle high CHIRP sonar and the high-resolution images of fish-holding structure from SideScan and DownScan Imaging™.

SplitShot High CHIRP Sonar and DownScan Imaging™

Perfect for anglers who want the best views below the boat, SplitShot features the fish-finding capability of wide-angle high CHIRP sonar and the high-resolution images of fish-holding structure from DownScan Imaging™.

SolarMAX™ Display

Enjoy crisp and clear views of your display no matter the conditions – even in direct sunlight – with excellent clarity and daylight visibility of HOOK Reveal’s SolarMAX display.

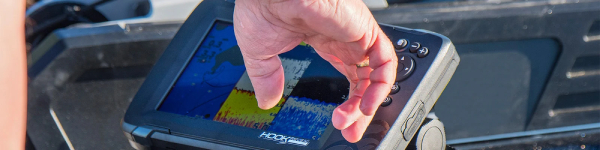

Easiest-to-use Menu Operation and Dedicated Keypad

Easily navigate through menus, select options and access key functions with HOOK Reveal’s simple menu layout and dedicated keypad.

Key Features

  • FishReveal™
  • Genesis Live Real-Time Mapping
  • Autotuning sonar
  • Double the sonar coverage of other fishfinders
  • Tripleshot™ transducer with High CHIRP, SideScan and DownScan Imaging™
  • Preloaded C-MAP US Inland mapping
  • SolarMAX™ Display
  • New fish-finding color palettes
  • Optimized keypad with one-touch access to key features
  • Mapping options include C-MAP, C-MAP Genesis, Navionics® and more
  • microSD card slot
  • Easy front-dash or gimbal-bracket mount
Specifications
Screen Brightness>1000 NITS
Weight1.90 lb (0.86 kg)
Power Consumption max1.50A @ 13VDC with backlight on full
Power Consumption typical1.50A @ 13VDC with backlight on full
Power Consumption min1.50A @ 13VDC with backlight on full
GPS1 Hz GPSGLONASSWAASEGNOSMSAS
Warranty Period1 Year + 4 additional years ofupgrade optionsTotaling 5 years
Shock Vibration100,000 cycles of 20 G
Compass Safe12" (300mm)
Supply Voltage12v DC (10.8-17VDC)
Waypoints, Routes, Tracks3000 Waypoints100 Routes100 Trails
Time to First Fix30s
Storage Temperature Range4°F to 140°F (-20°C to 60°C )
Operating Temperature Range5°F to 131°F (-15°C to 55°C )
Recommended Fuse Rating5A
Humidity60°C, 95% relative humidity (RH) for 18 hours
Dimensions W x H x D10.92" (277.3 mm) x 6.90 (175.2 mm) x 4.42" (112.3 mm)
Viewing Angles80° top/bottom, 85° left/right
Display Resolution800 x 480
Charts supportedC-MAP Lake Insight HDC-MAP Insight ProC-MAP (MAX N, MAX N+)C-MAP GenesisGenesis LiveC-MAP Precision Contour HD (AMER ONLY)Navionics (Gold, NAV+ Platinum+)Insight (Pro and HD)Lowrance Regional Mapping Partners(No Photo/Satellite Overlay)
Cartography includedC-Map US Inland Charting
CorrectionDGPS, WAAS
Approvals ComplianceFCC, Industry Canada, Radio Equipment Directive, ACMA, RSM
Mounting TypeGimbal BracketFront Dash Flush Mount
Sonar CompatibilityIntegrated:CHIRPBroadbandDownScan
WaterproofratingIPX7 with card door closed
InterfaceKeypad:8-way directional keypadZoom +/-ExitEnter/MenuWaypoint/CursorPower/LightPages
SD Card StorageMicro SD Card(32 gb Max)
Backlight ColorPure White LED
LanguagesStandard Language Pack: Afrikaans/Afrikaans, Danish/Dansk, German/Deutsch, English (US), English (UK), Spanish/Español, Finnish/Suomi, French/Français, Greek/Ελληνικά, Icelandic/íslenska, Italian/Italiano, Dutch/Nederlands, Norwegian/Norsk, Portugese (Brazil)/Português (BR), Portugese (Portugal)/Português (PT), Swedish/SvenskaAsian Language Pack: English (US), English (UK), Japanese/日本語, Korean/한국어, Thai/ภาษาไทย, Chinese - (simplified) China/简体中文, Chinese - (traditional) Taiwan/繁體中文Eastern European Language Pack:Bulgarian/Български, German/Deutsch, Estonian/Eesti, English (US), English (UK), Spanish/Español, French/Français, Hebrew/ عبری , Croatian/ Hrvatski, Hungarian/ Magyar, Italian/Italiano, Lithuanian/Lietuvos, Latvian/ Latvijas, Polish/Polski, Slovak/ Slovensky, Turkish/TürkçeRussia/Ukraine Language pack: German/Deutsch, English (US), English (UK), Spanish/Español, Italian/Italiano, Russian/Русский, Ukraine/ УкраїнськаMiddle Eastern Language Pack: Arabic (UAE)/ العربية , German/Deutsch, English (US), English (UK), Farsi/ فارسی , French/Français, Italian/Italiano
