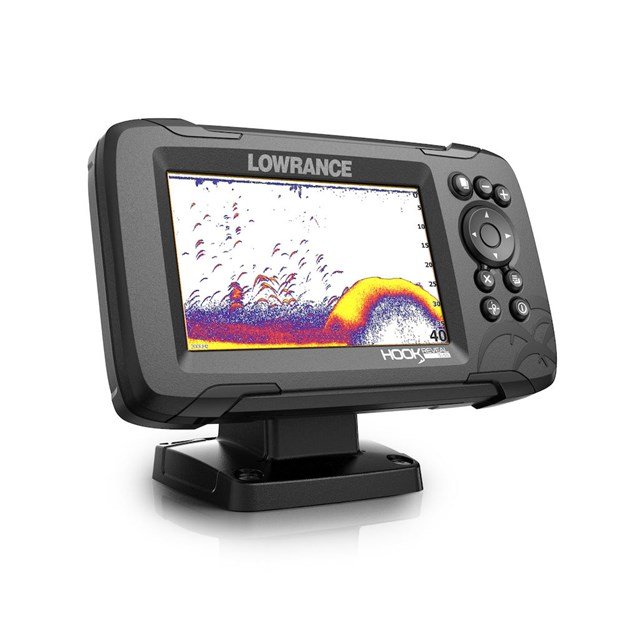

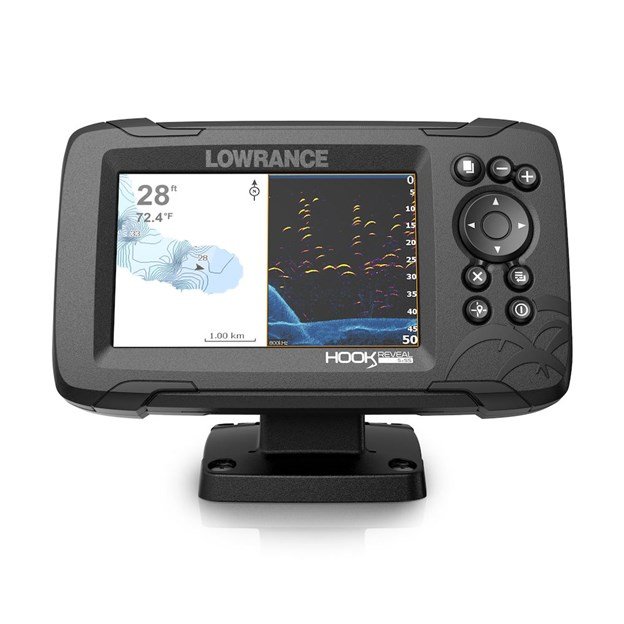

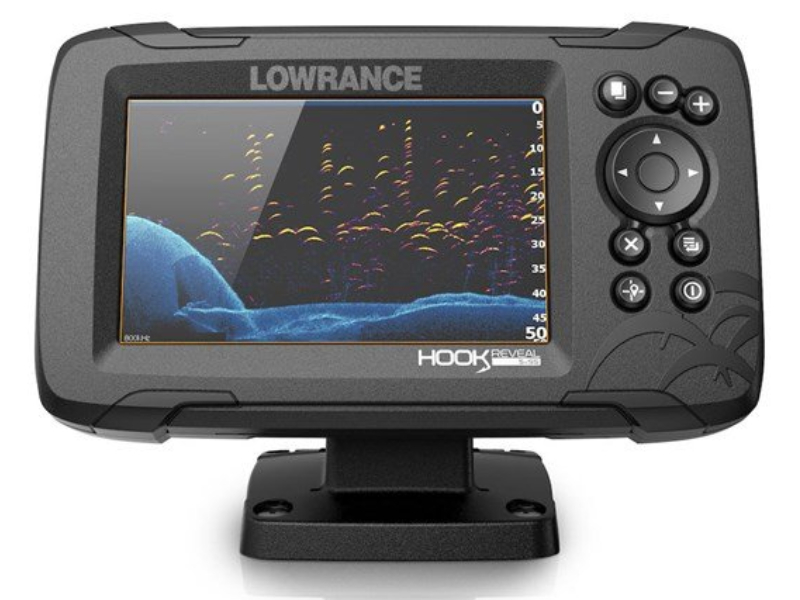

Lowrance Hook Reveal 5x SplitShot With Chirp, DownScan And GPS Plotter - 000-15503-001

Authorized Dealer Price Match Guarantee
Price Match Guarantee
The Power Centre offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.
Our Price $450.00 CAD

Or as low as $150.00/month over 3 months. Apply Now


Availability
Call for availability

More options
5 7
Literature

The all-new HOOK Reveal makes fishing easier, delivering powerful performance with proven fish-finding tools including, Autotuning Sonar, DownScan Imaging™ and now FishReveal™, which makes fish easier to see by combining the benefits of Lowrance CHIRP sonar and DownScan Imaging™ on one screen. Navigating to your favorite fishing spot is simple with the GPS Plotter, which makes route, trail and waypoint navigation is easy.

The all-new HOOK Reveal makes fishing easier, delivering powerful performance with proven fish-finding tools.

FishReveal

Fish are easier to find and easier to identify with FishReveal, which combines on one screen the proven performance of Lowrance CHIRP sonar and the high-resolution images of fish-holding structure from DownScan Imaging. Fish targets light up your display.

C-MAP® Contour+ Card & Genesis Live

Spend more time trying to catch fish and less time trying to find them with the high-resolution detail of C-MAP® Contour+ inland and coastal charts. From finding key fishing areas, like ledges, drop-offs and ditches to navigating with precision to fish-holding areas, you will have more success on the water with high resolution, bathymetric 1-foot contours on 15,000+ U.S. Lakes and 9,400+ lakes in Canada. Comes as a separate card. Plus create custom ½-foot contour maps of your local lake or uncharted water – in real time - with Genesis Live.

Autotuning Sonar

Spend more time fishing and less time reworking your sonar settings with HOOK Reveal Autotuning sonar, which ensures you get the best sonar image every time by automatically adjusting settings as fishing conditions change.

TripleShot™ High CHIRP Sonar with SideScan and DownScan Imaging™

Perfect for anglers who want all their sonar from a single transducer, TripleShot™ features the fish-finding capability of wide-angle high CHIRP sonar and the high-resolution images of fish-holding structure from SideScan and DownScan Imaging™.

SplitShot High CHIRP Sonar and DownScan Imaging™

Perfect for anglers who want the best views below the boat, SplitShot features the fish-finding capability of wide-angle high CHIRP sonar and the high-resolution images of fish-holding structure from DownScan Imaging™.

SolarMAX™ Display

Enjoy crisp and clear views of your display no matter the conditions – even in direct sunlight – with excellent clarity and daylight visibility of HOOK Reveal’s SolarMAX display.

Easiest-to-use Menu Operation and Dedicated Keypad

Easily navigate through menus, select options and access key functions with HOOK Reveal’s simple menu layout and dedicated keypad.

Key Features

  • FishReveal™
  • Autotuning sonar
  • Double the sonar coverage of other fishfinders
  • SplitShot transducer with High CHIRP and DownScan Imaging™
  • GPS Plotter
  • 5-inch SolarMAX™ Display
  • New fish-finding color palettes
  • Optimized keypad with one-touch access to key features
  • Easy front-dash or gimbal-bracket mount
Specifications
Screen Brightness>1000 NITS
GPS1 Hz GPSGLONASSWAASEGNOSMSAS
Warranty Period1 Year + 4 additional years ofupgrade optionsTotaling 5 years
Weight0.90 lb. (0.41 kg)
Power Consumption max0.9A @ 13VDC with backlight on full
Power Consumption typical0.9A @ 13VDC with backlight on full
Power Consumption min0.9A @ 13VDC with backlight on full
Shock Vibration100,000 cycles of 20 G
Compass Safe12" (300mm)
Supply Voltage12v DC (10.8-17VDC)
Waypoints, Routes, Tracks3000 Waypoints100 Routes100 Trails
Time to First Fix30s
Storage Temperature Range4°F to 140°F (-20°C to 60°C )
Operating Temperature Range5°F to 131°F (-15°C to 55°C )
Recommended Fuse Rating5A
Humidity60°C, 95% relative humidity (RH) for 18 hours
Viewing Angles80° top/bottom, 85° left/right
Display Resolution800 x 480
Dimensions W x H x D7.31" (185.7 mm) x 4.32" (109.8 mm) x 4.53" (115.0 mm)
CorrectionDGPS, WAAS
Approvals ComplianceFCC, Industry Canada, Radio Equipment Directive, ACMA, RSM
Mounting TypeGimbal BracketFront Dash Flush Mount
Cartography includedGPS Plotter Only (No Charts)
Sonar CompatibilityIntegrated:CHIRPBroadbandDownScan
WaterproofratingIPX7 with card door closed
InterfaceKeypad:8-way directional keypadZoom +/-ExitEnter/MenuWaypoint/CursorPower/LightPages
SD Card StorageMicro SD Card(32 gb Max)
Charts supportedN/A
Backlight ColorPure White LED
LanguagesStandard Language Pack: Afrikaans/Afrikaans, Danish/Dansk, German/Deutsch, English (US), English (UK), Spanish/Español, Finnish/Suomi, French/Français, Greek/Ελληνικά, Icelandic/íslenska, Italian/Italiano, Dutch/Nederlands, Norwegian/Norsk, Portugese (Brazil)/Português (BR), Portugese (Portugal)/Português (PT), Swedish/SvenskaAsian Language Pack: English (US), English (UK), Japanese/日本語, Korean/한국어, Thai/ภาษาไทย, Chinese - (simplified) China/简体中文, Chinese - (traditional) Taiwan/繁體中文Eastern European Language Pack:Bulgarian/Български, German/Deutsch, Estonian/Eesti, English (US), English (UK), Spanish/Español, French/Français, Hebrew/ عبری , Croatian/ Hrvatski, Hungarian/ Magyar, Italian/Italiano, Lithuanian/Lietuvos, Latvian/ Latvijas, Polish/Polski, Slovak/ Slovensky, Turkish/TürkçeRussia/Ukraine Language pack: German/Deutsch, English (US), English (UK), Spanish/Español, Italian/Italiano, Russian/Русский, Ukraine/ УкраїнськаMiddle Eastern Language Pack: Arabic (UAE)/ العربية , German/Deutsch, English (US), English (UK), Farsi/ فارسی , French/Français, Italian/Italiano
