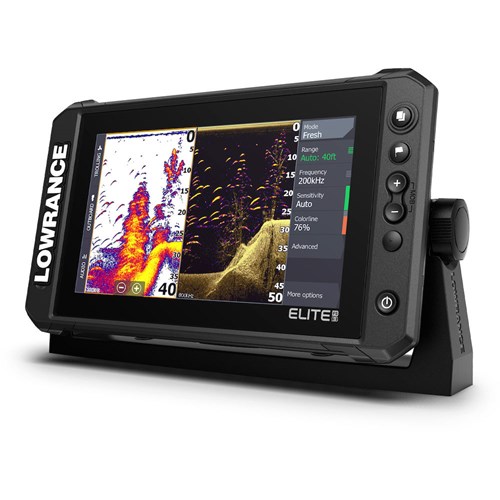

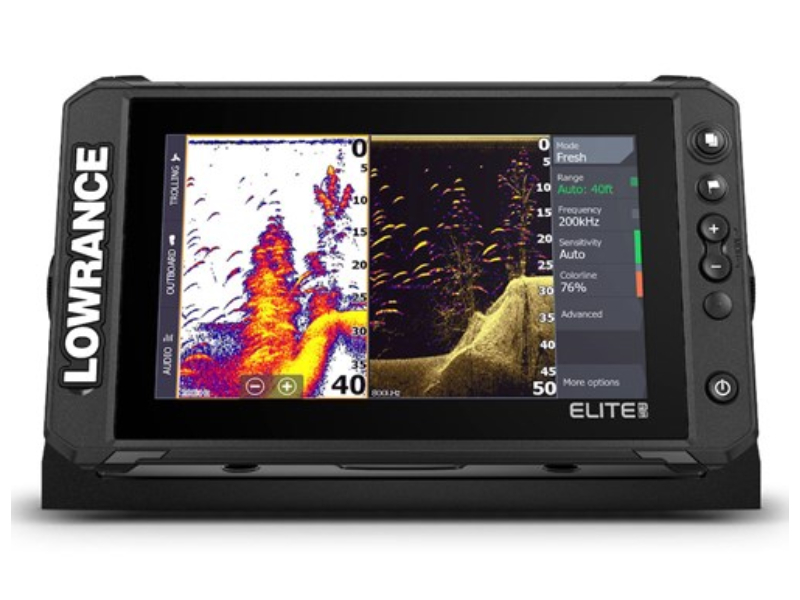

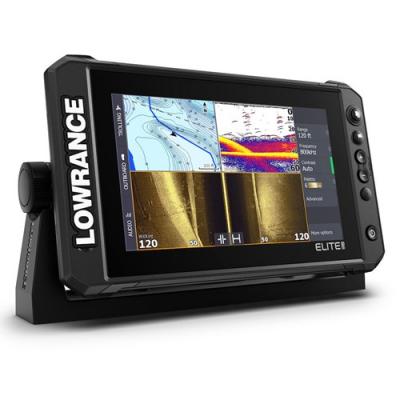

Lowrance Elite FS 9 With Active Imaging 3-in-1 - 000-15692-001

Authorized Dealer Price Match Guarantee
Price Match Guarantee
The Power Centre offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.
Our Price $1,299.99 CAD

Or as low as $144.44/month over 9 months. Apply Now


Availability
Call for availability

Literature

The new Elite™ Fishing System (FS) gives you access to the full line-up of Lowrance fishfinding tools – including ActiveTarget™ live sonar, Active Imaging™ and preloaded C-MAP® Contour™+ charts – to help you make the most of your time on the water.

The Elite Fishing System (FS) combines the power of Lowrance's proven and newest fishfinding tools with a more affordable display that's easier to use and install. From ActiveTarget™ live sonar and extreme high-resolution Active Imaging™ with Lowrance CHIRP sonar, SideScan and DownScan Imaging™ to preloaded C-MAP® Contour™+ Fishing Maps, Elite FS gives you all the tools you need to find and catch more fish.

Find More Fish with Proven Lowrance Sonar

See structure and cover with a new level of refined detail and at a range unmatched by any other structure imaging technology with Active Imaging™ 3-in-1 sonar featuring CHIRP, SideScan and DownScan with FishReveal™. Get the best of CHIRP sonar and DownScan Imaging™ on one screen with FishReveal, a Lowrance exclusive that helps you easily recognize fish from structure and cover on high-detailed DownScan images.

ACTIVE IMAGING

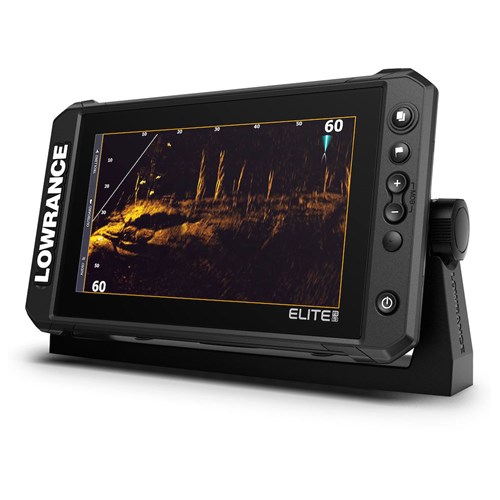

Target Fish Live with New ActiveTarget™ Live Sonar

Fish smarter when you know exactly what fish are doing – in real time – with ActiveTarget™ Live Sonar. Enjoy high-resolution views of fish movements, tracking them as they swim in and around cover. Watch their real-time response to your lure and you will know if your current technique is working or if it’s time to switch things up.

Find Key Fishing Areas with Contour+

Spend more time trying to catch fish and less time trying to find them with the high-resolution detail of C-MAP Contour+ inland and coastal charts built into Elite FS displays. From finding key fishing areas, like ledges, drop-offs and ditches to navigating with precision to fish-holding areas, you will have more success on the water with high-resolution

Key Features

  • ActiveTarget™ Live Sonar ready
  • Active Imaging 3-in-1 ready
  • FishReveal™
  • Preloaded C-MAP Contour+ with 1-foot contours on 8,900 lakes, plus mapping options including C-MAP, Navionics® and more
  • C-MAP® Easy Routing, Navionics® Autorouting capability
  • C-MAP Genesis Live onscreen mapping
  • High-resolution multi-touch touchscreen
  • Integrated wireless, NMEA 2000® and Ethernet connectivity
  • Full touchscreen control of Power Pole® anchors and Ghost® Trolling Motor
Specifications
Screen Brightness>1200 nits
SD Card Storage1 micro SD card up to 32GB
Ethernet Ports1 x 100Mbit
Warranty Period1 Year + 4 additional years ofupgrade optionsTotaling 5 years
Update rate10 Hz
GPS10 Hz Internal high-sensitivity WAAS + EGNOS + MSAS
Shock Vibration100,000 cycles of 20 G
Compass Safe12" (300mm)
Supply Voltage12v DC (10.8-17VDC)
GPS Receiver Channels16
NMEA 2000 Connectivity1x Micro-C
Power Consumption max2.0A @ 13VDC with backlight on full
Power Consumption typical2.0A @ 13VDC with backlight on full
Power Consumption min2.0A @ 13VDC with backlight on full
Weight2.7 lbs (1.2 kg)
Position Accuracy20m RMS
Waypoints, Routes, Tracks3000 Waypoints100 Routes100 Trails with up to 10,000 points per trail
Time to First Fix30s
Recommended Fuse Rating3A
Storage Temperature Range4°F to 140°F (-20°C to 60°C )
Radar compatibility4G (Broadband)3G (Broadband)Halo20 (Pulse Compression Dome Radar)Halo20+ (Pulse Compression Dome Radar)Halo24 (Pulse Compression Dome Radar)
Operating Temperature Range5°F to 131°F (-15°C to 55°C )
Viewing Angles50° top60°bottom70° left/right
Humidity60°C, 95% relative humidity (RH) for 18 hours
Display Resolution800x480
AISAIS Chart overlay. Target vessel details.
Charts supportedC-MAP (MAX N, MAX N+)C-MAP GenesisC-MAP Precision Contour HD (AMER ONLY)Navionics (Gold, NAV+ Platinum+)Insight (Pro and HD)Lowrance Regional Mapping Partners
Cartography includedC-MAP Contour +,Navionics basemap
CorrectionDGPS WAAS MSAS EGNOS GLONASS
Mounting TypeGimbal Bracket or Dash Flush Mount
BluetoothIntegrated Bluetooth 4.0 with support for Bluetooth Classic
Sonar CompatibilityIntegrated: CHIRPBroadbandActive Imaging DownScanActive Imaging SideScanCompatible with:SonarHubStructureScanStructurreScan 3DLiveSightActive Target
Item Connectivity WiFiInternal 802.11b/g/n
WaterproofratingIPX7 with card door closed
InterfaceMulti-Touch TouchscreenZoom +/-MOB = (+/- combined)PagesWaypointLight/Power
Internal StorageNone
PC ConnectivityNone
VideoNone
Digital SwitchingNone
AutopilotOutboard PilotGhost Trolling MotorMotorGuide Xi5/Xi3 Trolling Motor **requires Motorguide PinPoint Gateway
Backlight ColorPure White LED
WeatherSiriusXM via WM-4
MultimediaSonicHubSonicHub2FusionLink productsany NMEA 2000 compliant Marine Aduio products
LanguagesStandard Language Pack: Afrikaans/Afrikaans, Danish/Dansk, German/Deutsch, English (US), English (UK), Spanish/Español, Finnish/Suomi, French/Français, Greek/Ελληνικά, Icelandic/íslenska, Italian/Italiano, Dutch/Nederlands, Norwegian/Norsk, Portugese (Brazil)/Português (BR), Portugese (Portugal)/Português (PT), Swedish/SvenskaAsian Language Pack: English (US), English (UK), Japanese/日本語, Korean/한국어, Thai/ภาษาไทย, Chinese - (simplified) China/简体中文, Chinese - (traditional) Taiwan/繁體中文Eastern European Language Pack:Bulgarian/Български, German/Deutsch, Estonian/Eesti, English (US), English (UK), Spanish/Español, French/Français, Hebrew/ عبری , Croatian/ Hrvatski, Hungarian/ Magyar, Italian/Italiano, Lithuanian/Lietuvos, Latvian/ Latvijas, Polish/Polski, Slovak/ Slovensky, Turkish/TürkçeRussia/Ukraine Language pack: German/Deutsch, English (US), English (UK), Spanish/Español, Italian/Italiano, Russian/Русский, Ukraine/ УкраїнськаMiddle Eastern Language Pack: Arabic (UAE)/ العربية , German/Deutsch, English (US), English (UK), Farsi/ فارسی , French/Français, Italian/Italiano
