Lowrance Elite FS7 All Season Touch Screen/GPS Both Transducers - 000-15885-001

Authorized Dealer Price Match Guarantee

Price Match Guarantee

The Power Centre offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.

Our Price

$1,439.99 CAD

Or as low as $160.00/month over 9 months. Apply Now

Quote Request

Availability
Call for availability

Elite FS7 All Season Pack
Best Deal Promise

Literature

Description
Features

Bring the power of Lowrance CHIRP sonar, DownScan Imaging™ and FishReveal™ to the ice, a kayak or small boat with the Elite FS 7 All-Season Pack.

Product details

The Elite FS All-Season Pack comes with an Elite FS 7 fishfinder/chartplotter, power cable, ice transducer and HDI Skimmer® transducer, allowing anglers to use the display on the ice, a kayak or boat.

Key Features

ActiveTarget™ Live Sonar ready
Active Imaging 3-in-1 ready
FishReveal™
Preloaded C-MAP® Contour+ inland and coastal charts with high resolution, bathymetric 1-foot contours on 15,000+ U.S. lakes and 9,400+ lakes in Canada
Mapping options including C-MAP®, Navionics® and more
C-MAP® Easy Routing, Navionics® Autorouting capability
C-MAP Genesis Live onscreen mapping
High-resolution multi-touch touchscreen
Integrated wireless, NMEA 2000® and Ethernet connectivity
Full touchscreen control of Power Pole® anchors and Ghost® Trolling Motor

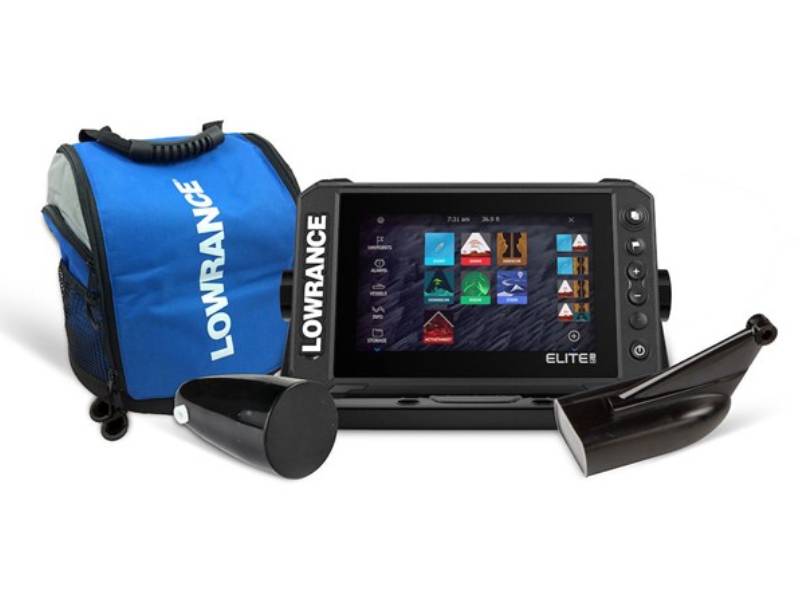

Kit includes: Elite FS 7, carrying bag, HDI skimmer transducer, suction cup mount, ice transducer, mounting platform, power cable, 12V battery and charger

Specifications
Screen Brightness	>1200 nits
SD Card Storage	1 micro SD card up to 32GB
Ethernet Ports	1 virtual ethernet port
Warranty Period	1 Year + 4 additional years ofupgrade optionsTotaling 5 years
Update rate	10 Hz
GPS	10 Hz Internal high-sensitivity WAAS + EGNOS + MSAS
Shock Vibration	100,000 cycles of 20 G
Compass Safe	12" (300mm)
Supply Voltage	12v DC (10.8-17VDC)
GPS Receiver Channels	16
NMEA 2000 Connectivity	1x Micro-C
Power Consumption max	2.0A @ 13VDC with backlight on full
Power Consumption typical	2.0A @ 13VDC with backlight on full
Power Consumption min	2.0A @ 13VDC with backlight on full
Weight	2.20 lbs (1.00 kg)
Position Accuracy	20m RMS
Waypoints, Routes, Tracks	3000 Waypoints100 Routes100 Trails with up to 10,000 points per trail
Time to First Fix	30s
Recommended Fuse Rating	3A
Storage Temperature Range	4°F to 140°F (-20°C to 60°C )
Radar compatibility	4G (Broadband)3G (Broadband)Halo20 (Pulse Compression Dome Radar)Halo20+ (Pulse Compression Dome Radar)Halo24 (Pulse Compression Dome Radar)
Operating Temperature Range	5°F to 131°F (-15°C to 55°C )
Viewing Angles	50° top60°bottom70° left/right
Humidity	60°C, 95% relative humidity (RH) for 18 hours
Display Resolution	800x480
AIS	AIS Chart overlay. Target vessel details.
Charts supported	C-MAP (MAX N, MAX N+)C-MAP GenesisC-MAP Precision Contour HD (AMER ONLY)Navionics (Gold, NAV+ Platinum+)Insight (Pro and HD)Lowrance Regional Mapping Partners
Cartography included	C-MAP Contour + (US models)Navionics basemap (AMER, AUS/NZ and ROW models)
Correction	DGPSWAASMSASEGNOSGLONASS
Mounting Type	Gimbal Bracket or Dash Flush Mount
Bluetooth	Integrated
Sonar Compatibility	Integrated: CHIRPBroadbandActive Imaging DownScanActive Imaging SideScanCompatible with:SonarHubStructureScanStructurreScan 3DLiveSightActive Target
Connectivity Wi Fi	Internal 802.11b/g/n
Waterproofrating	IPX7 with card door closed
Internal Storage	None
PC Connectivity	None
NMEA 0183 Sentences supported	None
Video	None
Multimedia	None
Digital Switching	None
Autopilot	Outboard PilotGhost Trolling MotorMotorGuide Xi5/Xi3 Trolling Motor **requires Motorguide PinPoint Gateway
Backlight Color	Pure White LED
N2K PG Ns	Receive only65240 ISO Commanded Address, 127245 Rudder, 127251 Rate of Turn, 127257 Attitude, 127488 Engine Parameters, Rapid Update, 127489 Engine Parameters, Dynamic, 127493 Transmission Parameters, Dynamic, 127505 Fluid Level, 127508 Battery Status, 129033 Time and Date, 129038 AIS Class A Position Report, 129039 AIS Class B Position Report, 129040 AIS Class B Extended Position Report, 129794 AIS Class A Static and Voyage Related Data, 129801 AIS Address Safety Related Message, 129802 AIS Safety Related Broadcast Message, 129808 DSC Call Information, 130313 Humidity, 130314 Actual Pressure, 130576 Small Craft Status, 65285 Temperature with Instance, 65325 Reprogramming Status, 65480 Parameter Reply, 130817 Product Information, 130820 Reprogramming Status, 130832 Fuel Used – High Resolution, 130834 Engine and Tank Configuration, 130838 Fluid Level Warning, 130842 AIS and VHF Message Transport, 130843 Sonar Status – Frequency and DSP VoltageTransmit and Receive:59392 ISO Acknowledgement, 59904 ISO Request, 60160 ISO Transport Protocol, Data Transfer, 60416 ISO Transport Protocol, Connection Management, 60928 ISO Address Claim, 126208 NMEA Group Function, 126464 Receive/Transmit PGN’s group function, 126992 System Time, 126996 Product Information, 127237 Heading/Track Control, 127250 Vessel Heading, 127258 Magnetic Variation, 128259 Speed, 128267 Water Depth, 128275 Distance Log, 129025 Position, Rapid Update, 120296 COG and SOG, Rapid Update, 129029 GNSS Position Data, 129283 Cross Track Error, 129284 Navigation Data, 129539 GNSS DOPs, 129540 GNSS Sats In View, 130074 Route and WP Service – WP List - WP Name and Position, 130310 Environmental Parameters, 130311 Environmental Parameters, 130312 Temperature, 130577 Direction Data, 61184 Parameter Command, 65292 Clear Fluid Level Warnings, 65293 LGC-2000 Configuration, 65323 Data User Group Request, 130831 EP-20 Suzuki Engine and EP-50 Storage Device Configuration, 130835 Set Engine and Tank Configuration, 130839 EP-45 Pressure Configuration, 130840 Data User Group Configuration, 130845 Parameter Handle, 130850 Event Command, 130851 Event ReplyTransmit only65287 Temperature Sensor Configuration, 65289 Trim Tab Configuration, 65290 Paddle Wheel Speed Configuration, 130818 Reprogramming Data, 130819 Request Reprogram, 130828 Set Serial Number, 130836 Fluid Level Configuration, 130837 Fuel Flow Turbine Configuration
Weather	SiriusXM via WM-4
Languages	Standard Language Pack: Afrikaans/Afrikaans, Danish/Dansk, German/Deutsch, English (US), English (UK), Spanish/Español, Finnish/Suomi, French/Français, Greek/Ελληνικά, Icelandic/íslenska, Italian/Italiano, Dutch/Nederlands, Norwegian/Norsk, Portugese (Brazil)/Português (BR), Portugese (Portugal)/Português (PT), Swedish/SvenskaAsian Language Pack: English (US), English (UK), Japanese/日本語, Korean/한국어, Thai/ภาษาไทย, Chinese - (simplified) China/简体中文, Chinese - (traditional) Taiwan/繁體中文Eastern European Language Pack:Bulgarian/Български, German/Deutsch, Estonian/Eesti, English (US), English (UK), Spanish/Español, French/Français, Hebrew/ عبری , Croatian/ Hrvatski, Hungarian/ Magyar, Italian/Italiano, Lithuanian/Lietuvos, Latvian/ Latvijas, Polish/Polski, Slovak/ Slovensky, Turkish/TürkçeRussia/Ukraine Language pack: German/Deutsch, English (US), English (UK), Spanish/Español, Italian/Italiano, Russian/Русский, Ukraine/ УкраїнськаMiddle Eastern Language Pack: Arabic (UAE)/ العربية , German/Deutsch, English (US), English (UK), Farsi/ فارسی , French/Français, Italian/Italiano
Interface	TouchscreenZoom +/-MOB = (+/- combined)PagesWaypointLight/Power
