Lowrance Elite Fishing System 7 With HDI Transducer - 000-15696-001
Authorized Dealer
Price Match Guarantee
| Our Price | $1,039.99 CAD |
Or as low as $115.55/month over 9 months. Apply Now

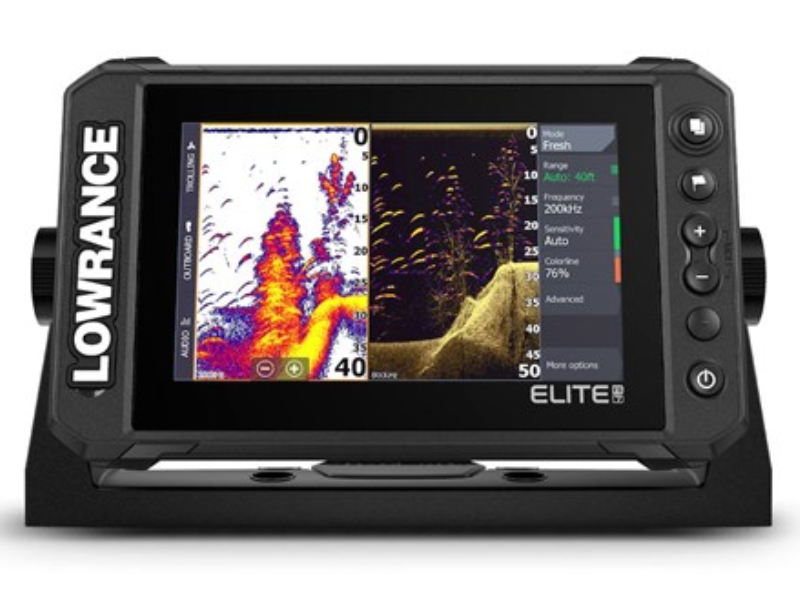

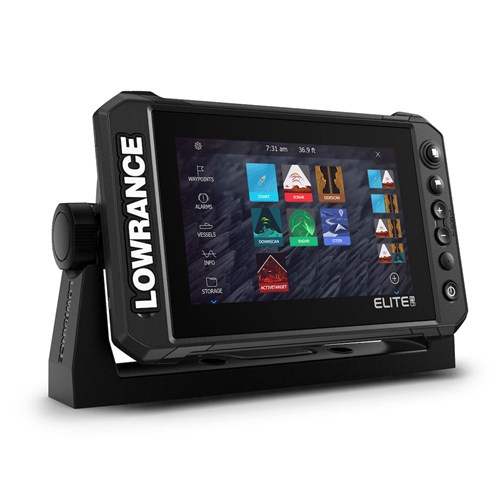

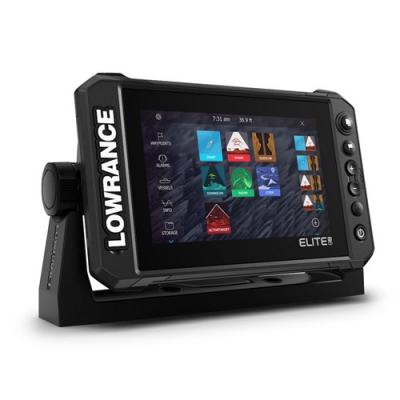

Lowrance Elite Fishing System 7 With HDI Transducer - 000-15696-001

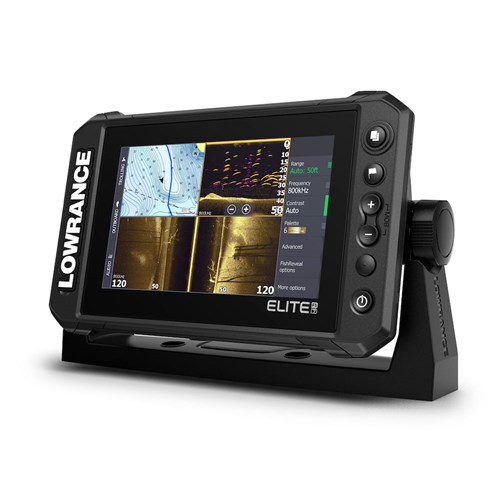

Elite FS 7 - With HDI Transducer
The new Elite Fishing System (FS) with HDI Transducer gives you Lowrance CHIRP sonar and DownScan Imaging™, plus support for the full line-up of Lowrance fishfinding tools – including ActiveTarget™ Live Sonar, Active Imaging™ and preloaded C-MAP Contour+ charts – to help you make the most of your time on the water.
The Elite Fishing System (FS) combines the power of Lowrance's proven and newest fishfinding tools with a more affordable display that's easier to use and install. From ActiveTarget™ live sonar and extreme high-resolution Active Imaging™ with Lowrance CHIRP sonar, SideScan and DownScan Imaging™ to preloaded C-MAP® Contour™+ Fishing Maps, Elite FS gives you all the tools you need to find and catch more fish.

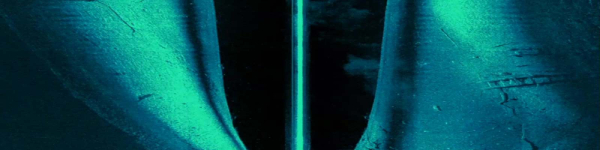

Find More Fish with Proven Lowrance Sonar

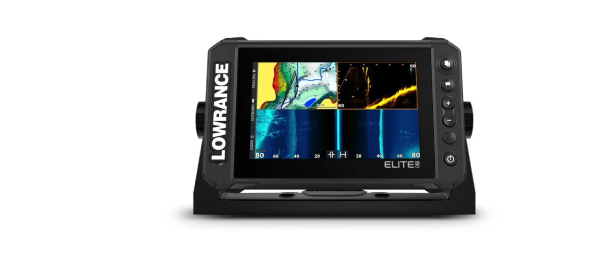

See structure and cover with a new level of refined detail and at a range unmatched by any other structure imaging technology with Active Imaging™ 3-in-1 sonar featuring CHIRP, SideScan and DownScan with FishReveal™. Get the best of CHIRP sonar and DownScan Imaging™ on one screen with FishReveal, a Lowrance exclusive that helps you easily recognize fish from structure and cover on high-detailed DownScan images.
ACTIVE IMAGING

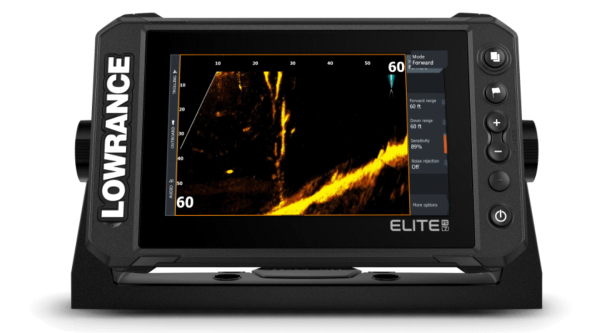

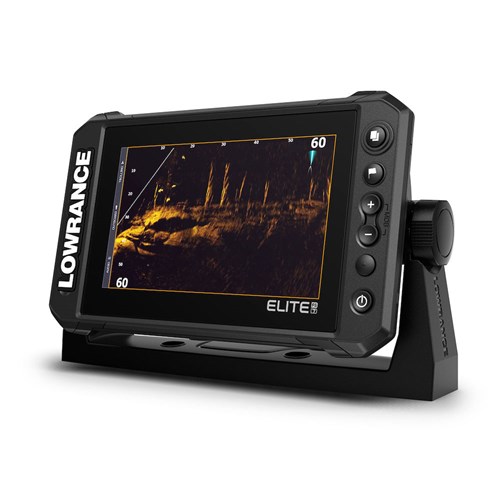

Target Fish Live with New ActiveTarget™ Live Sonar
Fish smarter when you know exactly what fish are doing – in real time – with ActiveTarget™ Live Sonar. Enjoy high-resolution views of fish movements, tracking them as they swim in and around cover. Watch their real-time response to your lure and you will know if your current technique is working or if it’s time to switch things up.

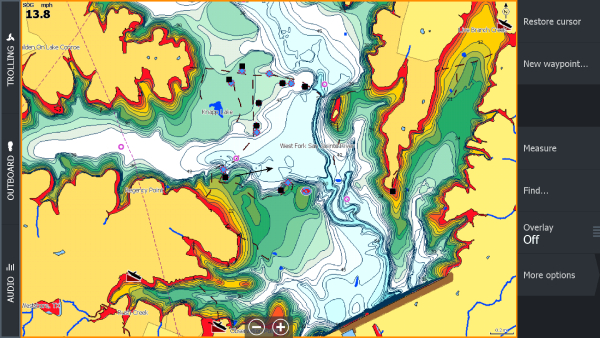

Find Key Fishing Areas with Contour+
Spend more time trying to catch fish and less time trying to find them with the high-resolution detail of C-MAP Contour+ inland and coastal charts built into Elite FS displays. From finding key fishing areas, like ledges, drop-offs and ditches to navigating with precision to fish-holding areas, you will have more success on the water with high-resolution
Key Features
- ActiveTarget™ Live Sonar ready
- Active Imaging 3-in-1 ready
- Includes HDI transducer with Lowrance CHIRP sonar and DownScan Imaging™
- FishReveal™
- Preloaded C-MAP Contour+ with 1-foot contours on 8,900 lakes, plus mapping options including C-MAP, Navionics® and more
- C-MAP® Easy Routing, Navionics® Autorouting capability
- C-MAP Genesis Live onscreen mapping
- High-resolution multi-touch touchscreen
- Integrated wireless, NMEA 2000® and Ethernet connectivity
- Full touchscreen control of Power Pole® anchors and Ghost® Trolling Motor
| Specifications | |
|---|---|
| Screen Brightness | >1200 nits |
| SD Card Storage | 1 micro SD card up to 32GB |
| Ethernet Ports | 1 x 100Mbit |
| Warranty Period | 1 Year + 4 additional years ofupgrade optionsTotaling 5 years |
| Weight | 1.90 lbs (0.90 kg) |
| Update rate | 10 Hz |
| GPS | 10 Hz Internal high-sensitivity WAAS + EGNOS + MSAS |
| Shock Vibration | 100,000 cycles of 20 G |
| Compass Safe | 12" (300mm) |
| Supply Voltage | 12v DC (10.8-17VDC) |
| GPS Receiver Channels | 16 |
| NMEA 2000 Connectivity | 1x Micro-C |
| Power Consumption max | 2.0A @ 13VDC with backlight on full |
| Power Consumption typical | 2.0A @ 13VDC with backlight on full |
| Power Consumption min | 2.0A @ 13VDC with backlight on full |
| Position Accuracy | 20m RMS |
| Waypoints, Routes, Tracks | 3000 Waypoints100 Routes100 Trails with up to 10,000 points per trail |
| Time to First Fix | 30s |
| Recommended Fuse Rating | 3A |
| Storage Temperature Range | 4°F to 140°F (-20°C to 60°C ) |
| Radar compatibility | 4G (Broadband)3G (Broadband)Halo20 (Pulse Compression Dome Radar)Halo20+ (Pulse Compression Dome Radar)Halo24 (Pulse Compression Dome Radar) |
| Operating Temperature Range | 5°F to 131°F (-15°C to 55°C ) |
| Viewing Angles | 50° top60°bottom70° left/right |
| Humidity | 60°C, 95% relative humidity (RH) for 18 hours |
| Display Resolution | 800x480 |
| AIS | AIS Chart overlay. Target vessel details. |
| Charts supported | C-MAP (MAX N, MAX N+)C-MAP GenesisC-MAP Precision Contour HD (AMER ONLY)Navionics (Gold, NAV+ Platinum+)Insight (Pro and HD)Lowrance Regional Mapping Partners |
| Mounting Type | Gimbal Bracket or Dash Flush Mount |
| Bluetooth | Integrated Bluetooth 4.0 with support for Bluetooth Classic |
| Sonar Compatibility | Integrated: CHIRPBroadbandActive Imaging DownScanActive Imaging SideScanCompatible with:SonarHubStructureScanStructurreScan 3DLiveSightActive Target |
| Item Connectivity WiFi | Internal 802.11b/g/n |
| Waterproofrating | IPX7 with card door closed |
| Interface | Multi-Touch TouchscreenZoom +/-MOB = (+/- combined)PagesWaypointLight/Power |
| Internal Storage | None |
| PC Connectivity | None |
| Video | None |
| Digital Switching | None |
| Autopilot | Outboard PilotGhost Trolling MotorMotorGuide Xi5/Xi3 Trolling Motor **requires Motorguide PinPoint Gateway |
| Backlight Color | Pure White LED |
| Multimedia | SonicHubSonicHub2FusionLink productsany NMEA 2000 compliant Marine Aduio products |
| Languages | Standard Language Pack: Afrikaans/Afrikaans, Danish/Dansk, German/Deutsch, English (US), English (UK), Spanish/Español, Finnish/Suomi, French/Français, Greek/Ελληνικά, Icelandic/íslenska, Italian/Italiano, Dutch/Nederlands, Norwegian/Norsk, Portugese (Brazil)/Português (BR), Portugese (Portugal)/Português (PT), Swedish/SvenskaAsian Language Pack: English (US), English (UK), Japanese/日本語, Korean/한국어, Thai/ภาษาไทย, Chinese - (simplified) China/简体中文, Chinese - (traditional) Taiwan/繁體中文Eastern European Language Pack:Bulgarian/Български, German/Deutsch, Estonian/Eesti, English (US), English (UK), Spanish/Español, French/Français, Hebrew/ عبری , Croatian/ Hrvatski, Hungarian/ Magyar, Italian/Italiano, Lithuanian/Lietuvos, Latvian/ Latvijas, Polish/Polski, Slovak/ Slovensky, Turkish/TürkçeRussia/Ukraine Language pack: German/Deutsch, English (US), English (UK), Spanish/Español, Italian/Italiano, Russian/Русский, Ukraine/ УкраїнськаMiddle Eastern Language Pack: Arabic (UAE)/ العربية , German/Deutsch, English (US), English (UK), Farsi/ فارسی , French/Français, Italian/Italiano |
