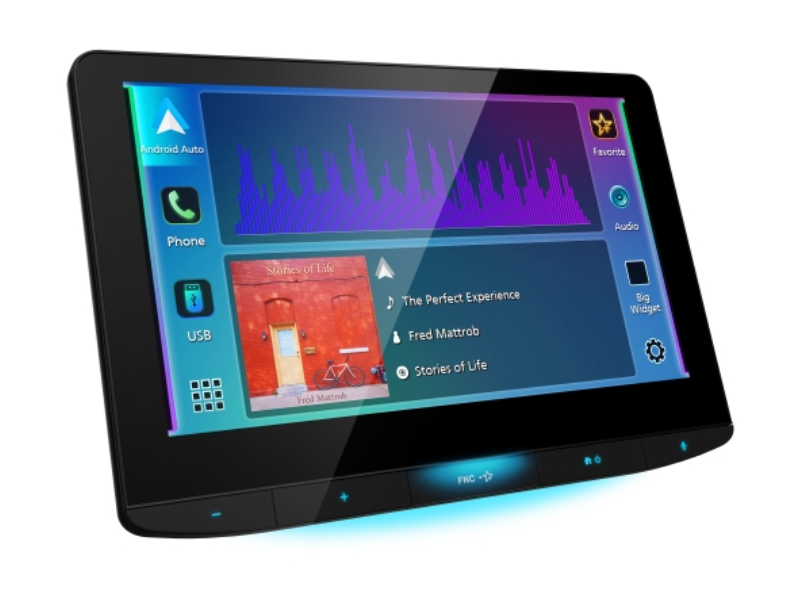

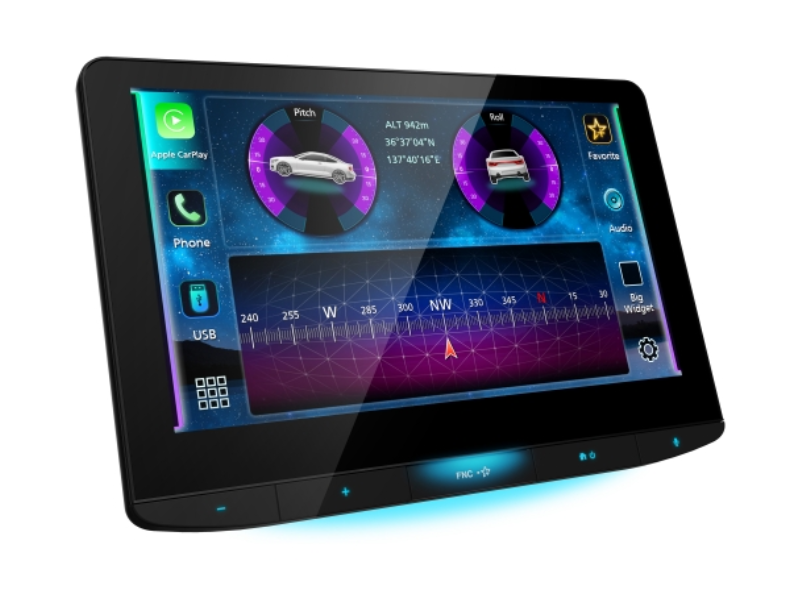

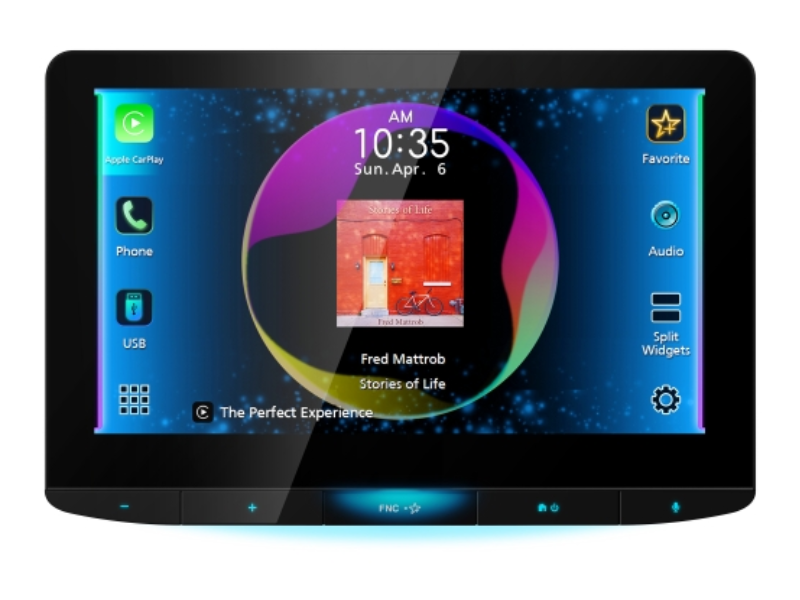

10.1" JVC Digital Media Receiver featuring Apple CarPlay Android Auto Bluetooth - KW-Z1001W

Authorized Dealer Price Match Guarantee
Price Match Guarantee
The Power Centre offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.

Availability
Call for availability

Literature

Digital Media Receiver featuring 10.1" HD Screen / Apple CarPlay® (Wireless, Wired) / Android Auto™ (Wireless, Wired) / HDMI Input / 4-Cam Input / HD Camera Input / High-Resolution Audio / SiriusXM Ready / iDatalink Maestro Ready / Built-in HD Radio Tuner / Bluetooth®

KW-Z1001W_1



SMARTPHONE INTEGRATION


KW-Z1001W_2

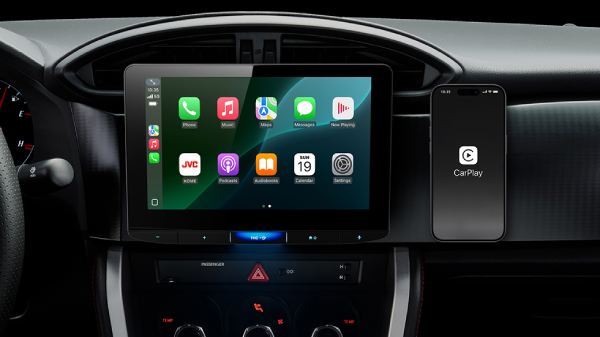

Apple CarPlay – CONNECT WIRELESSLY OR VIA USB

A smarter, safer and more fun way to use your iPhone in the car. Apple CarPlay gives iPhone users an intuitive way to make calls, use Maps, and listen to music with just a word or a touch.


KW-Z1001W_3

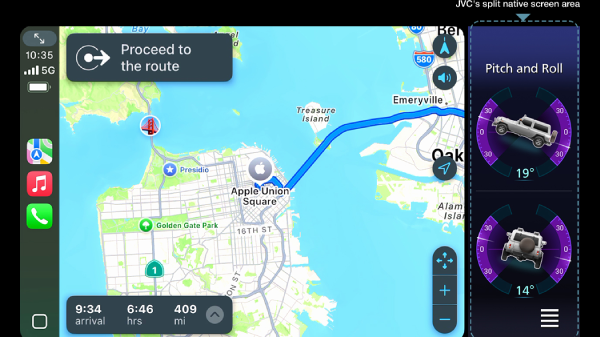

Apple CarPlay – SPLIT SCREEN SUPPORT

You can view and operate both Apple CarPlay and JVC source in the same screen.


KW-Z1001W_4

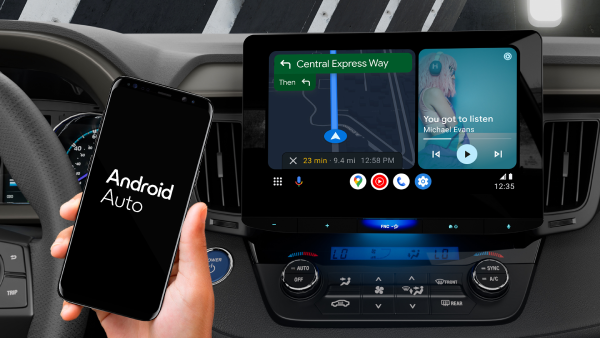

Android Auto™ – CONNECT WIRELESSLY OR VIA USB

Android Auto was designed with safety in mind. With larger touch targets, a split-screen interface, and easy-to-use voice actions, it's designed to minimize distraction so you can stay focused on the road

*Compatible Android phone and compatible active data plan required. *Some features and devices may not be available in all countries. Subject to availability.

KW-Z1001W_5

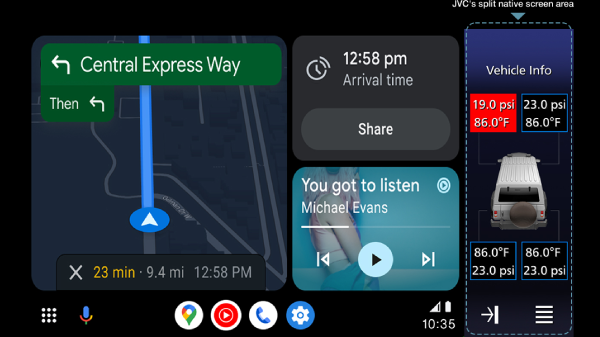

Android Auto – SPLIT SCREEN SUPPORT

You can view and operate both Android Auto and JVC source in the same screen.


KW-Z1001W_6

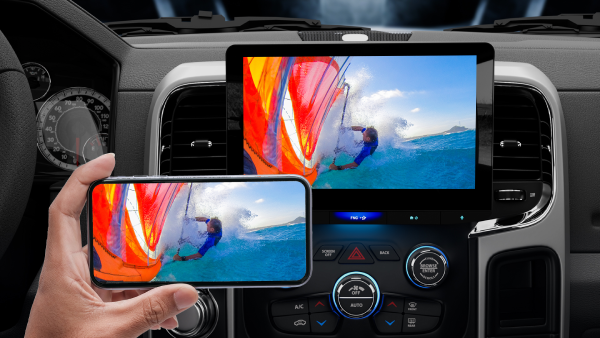

WIRELESS MIRRORING FOR COMPATIBLE SMARTPHONES

Wireless Mirroring for Android Solution for seamlessly displaying and controlling your smartphone apps on a screen without cables on select Android devices.

*Selected models only

KW-Z1001W_7

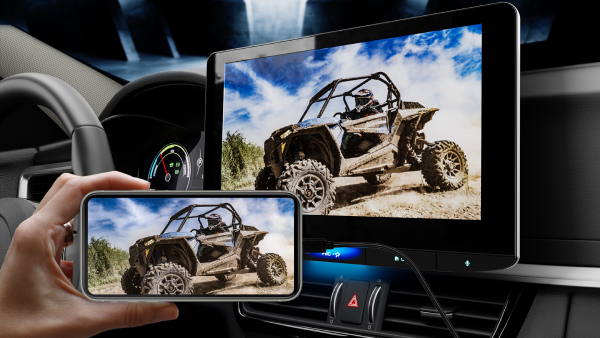

HDMI™ MIRRORING FOR COMPATIBLE SMARTPHONES

Display your smartphone screen on the KW-Z1001W’s display via an HDMI cable and third party adapter.

*KS-U70, optional HDMI cable and smartphone specific third party adapter are required (sold separately).


DISPLAY


KW-Z1001W_8

HIGH DEFINITION DISPLAY (1280 x 720)

The large-screen 10.1” HD display is about 2.4 times higher resolution than the conventional WVGA panel. With this display, jagged edges are eliminated in the displayed image, providing sharp and vivid images. In addition, the color development increases, and the individual colors of the image become clear, so you can enjoy high-definition images.


KW-Z1001W_9

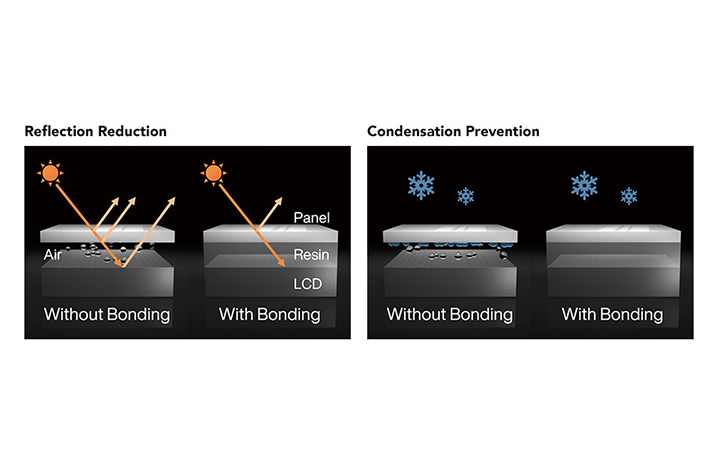

OPTICAL BONDING TECHNOLOGY

The optical bonding technology minimizes the refractive light index by bonding the liquid crystal module and clear panel. It suppresses the reflection of the screen and maintains high visibility. In addition, since optical bonding does not have an air layer between the liquid crystal module and the clear panel, display visibility is not impaired by internal condensation, further enhancing its durability.



Dynamic GUI

Various information including time, photos, album art images, or iDatalink Maestro™ and more, can be displayed on the home screen in a big, easy-to-view way. Swiping the monitor with two fingers lets you split the screen or change the information window.



LIVE WALLPAPER

Synchronize background visual and color with music.



ADJUSTABLE 4-WAY DISPLAY POSITION

Fully adjustable display allows you to change the height, angle, and depth for easy vehicle fitment.

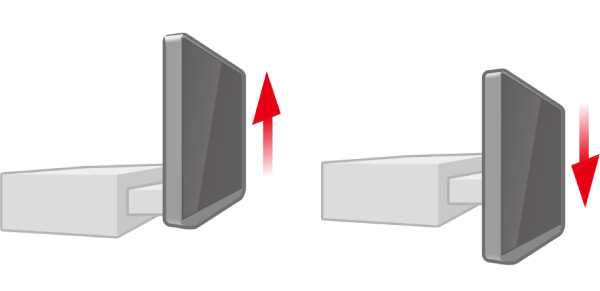

Height: 4 steps(0, 33/64, 1-1/32, 1-17/32 inch)

KW-Z1001W_10

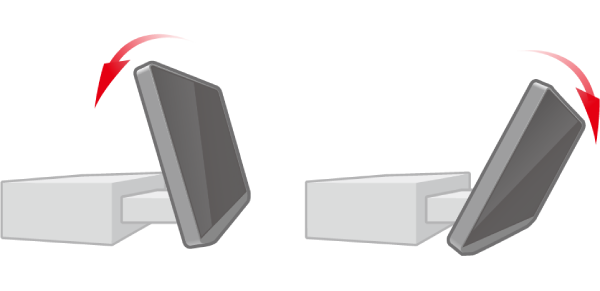

Tilt: -10° ~ +45°

KW-Z1001W_11

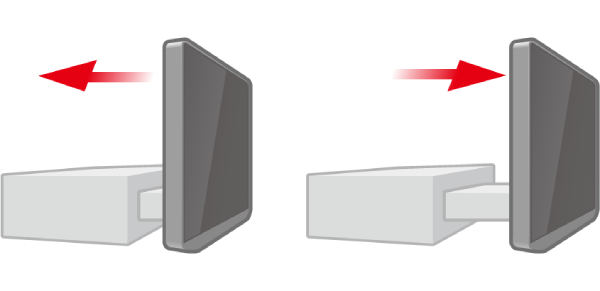

Depth: 2 steps(0, 25/32 inch)

KW-Z1001W_12

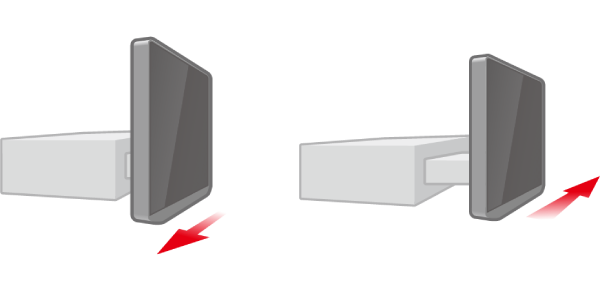

Left / Right : 3 steps(-1-3/16, 0, 1-3/16 inch)

KW-Z1001W_13


SAFE DRIVING


KW-Z1001W_14

iDatalink Maestro – ADVANCED VEHICLE INTEGRATION

iDatalink Maestro RR/RR2 (sold separately) enables the retention of the factory steering wheel audio controls, factory amplifier, secondary displays, and can even display vehicle information (performance data, climate controls, battery voltage, etc.) when connected to compatible vehicles. Radar detector information can also be displayed on the screen when used with a compatible K40 radar detector system (sold separately).

*Available features may vary depending on the vehicle. The iDatalink Maestro RR is sold separately by Automotive

KW-Z1001W_15

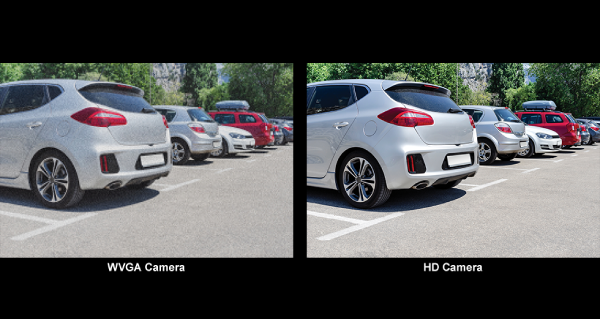

HD FRONT / REAR CAMERA INPUT

An optional High Definition camera can be connected to the receiver’s front and/or rear camera input, displaying the image in true 1280 x 720 (720P) High Definition on compatible receivers. The camera’s built in High Dynamic Range technology further helps to overcome the negative effects of dark or bright conditions, making it the safest front or rear camera option available.


KW-Z1001W_16

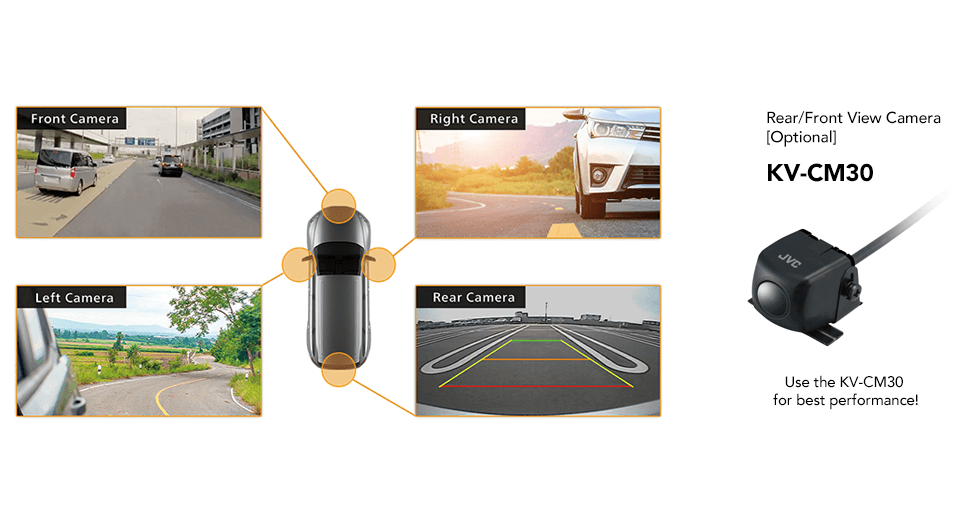

4-CAMERA INPUT

Enables users to add a reverse (rear facing) camera, front camera and an additional 2 blindspot cameras, further enhancing driver safety and convenience.



SOUND OPTIMAZATION


KW-Z1001W_17

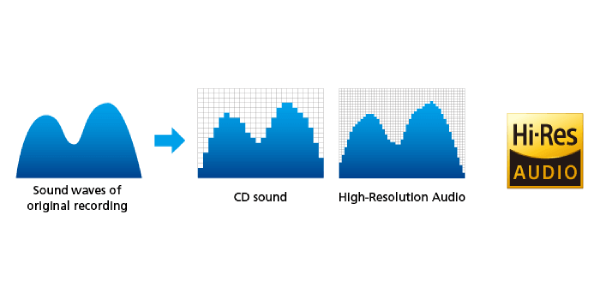

HIGH-RESOLUTION AUDIO PLAYBACK

You can enjoy playback of 96kHz/24bit audio which contains about 3 times the musical information of music CDs (44.1kHz/16bit), or even 192kHz/24bit High-Resolution Audio files with their approx. 6.5 times data volume. With high sound quality approaching the original master recording itself, you will experience the presence and ambience of a tune the way CD simply cannot.


KW-Z1001W_18

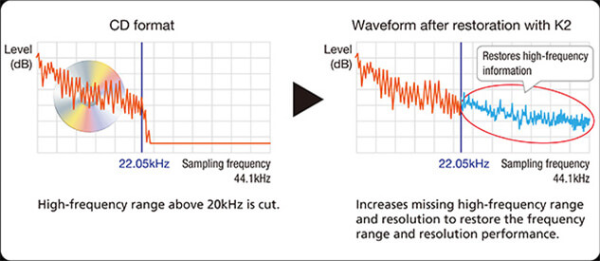

K2 TECHNOLOGY for ENHANCED DIGITAL SOUND QUALITY

K2 is a JVC original technology that reproduces the original master sound by expanding the frequency range. For example, K2 will expand the digital data of the audio CD recorded at 44.1kHz to 192kHz. It is also possible to recreate the high-frequency range above 20kHz that is cut during the CD formatting



INTERNET RADIO / DIGITAL RADIO


KW-Z1001W_19

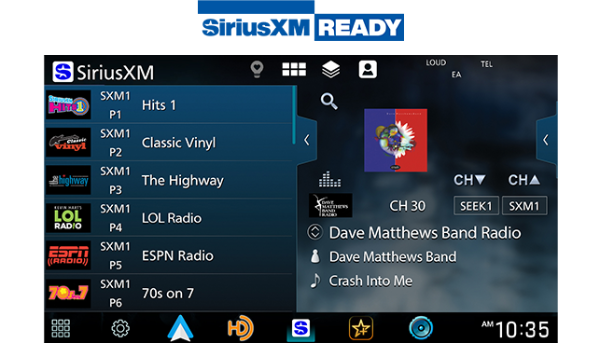

SiriusXM READY (optional SiriusXM tuner required, sold separately)

Ready for SiriusXM Radio. You can listen to over 100 Channels of music, sports, and entertainment.


KW-Z1001W_20

SiriusXM 360L READY

SiriusXM 360L is the latest-generation audio platform from SiriusXM, combining satellite radio with internet streaming. SiriusXM 360L offers over 100 music channels, a vast library of on-demand content, and a live sports category where you can listen to game broadcasts and sporting events. It also features personalized "For You" recommendations, a Spotlight section, and easy access to related content.
*To enjoy 360L contents, it is necessary that the device is connected to the internet and H/U is connected with the device by Wi-Fi. In addition, “360L IP Connection” in SETUP has to be set to ON.
*SiriusXM 360L requires a dedicated WiFi connection. Other Apps that require a WiFi connection may not work while SiriusXM 360L is in use.


KW-Z1001W_21

BUILT-IN HD RADIO TUNER

HD Radio is a Digital technology that allows a radio station to transmit more information in the same radio wave, enabling higher quality sound and additional content. HD Radio technology makes AM Stations have FM Station-like sound quality, while FM Stations are broadcast with CD-like sound quality. Unlike typical FM or AM transmission, HD Radio has crystal clear reception with low noise and no audio distortion.



GENERAL


KW-Z1001W_22

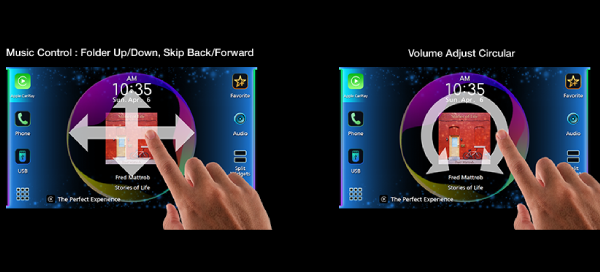

GESTURE TOUCH CONTROL

Just touch and move your finger over the screen for various operations corresponding to your finger movements. Intuitive control provides safer operation for in-car entertainment.




4.0V HIGH-VOLTAGE 3 PRE-OUTS

Equipped with three RCA terminals for pre-outs with 4.0V high voltage. Increasing the output voltage from the pre-outs helps reduce transmission noise and distortion when connected with an external amplifier.

DETACHABLE USB with HIGH CURRENT 3.0A CHARGING

Rapidly charge your smartphone using the USB port, with up to a maximum of 3.0A. Single rear USB port with detachable extension cable included.

*Compatibility depends on the smartphone


KW-Z1001W_23

JVC PORTAL APP COMPATIBLE

Display the image data saved on your smartphone on the KW-Z1001W with JVC Portal App now available for both iOS and Android. You can set your favorite image on the wallpaper of the receiver and enjoy the slide show.


KW-Z1001W_24

JVC REMOTE CONTROL APP

Control the music directly from the smartphone using simple finger gestures with "JVC Remote S" app* now available for both iOS and Android.


KW-Z1001W_25

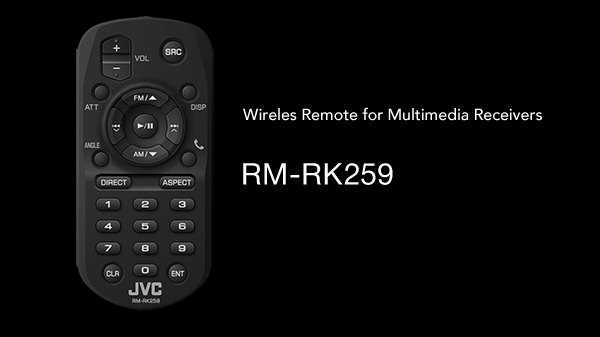

REMOTE CONTROL (OPTIONAL)

Remote control (RM-RK259) is optionally available.


MONITOR
High Definition MonitorYes
Screen Size10.1"W HD Screen
Touch PanelCapacitive / Bonding
Gesture Touch ControlYes
Key Illumination ColorVariable
DimmerYes
Multilingual DisplayYes[4]
Live WallpaperYes
Media Playback
MP3 Compatible with TagUSB
WMA Compatible with TagUSB
WAV Compatible with TagUSB
AAC Compatible with TagUSB
FLAC Compatible with TagUSB
H.264 CompatibleUSB
WMV CompatibleUSB
MPEG 1/2 CompatibleUSB
MPEG 4 CompatibleUSB
AVI/MKV CompatibleUSB
Bluetooth Control
Built-in Bluetooth[1]Yes (Version 5.2, Wired-Mic included)
Hands Free CallYes (HFP1.7)
2 Phones Full-Time ConnectionYes
Audio Streaming & Control (A2DP, AVRCP)Yes
Supported Audio FormatsAAC / SBC
5 BT-Audio ConnectionYes
Voice Dialing (voice recognition compatible mobile phone required)Yes
Phone Book Access Profile (PBAP)Yes
Alphabetical Search for Phone BookYes
Wi-Fi Control
Built-in Wi-FiYes
Android Control
Android Auto[2]Yes (via Wi-Fi or USB)
Mirroring for AndroidYes (via WiFi)
iPod/iPhone Control
Apple CarPlay[3]Yes (via Wi-Fi or USB)
USB
USB Portx 1 (Type-C)
PositionRear
USB Power Supply5V/3A(USB type-C Current 3A) or 5V/1.5A(USB BC1.2)
Radio Tuner
Built-in HD RadioYes
SiriusXM ReadyYes *SiriusXM 360L Ready
Radio Broadcast Data System (RBDS)Yes
Preset Stations20(FM:15ch, AM:5ch)
Auto Memory EntryYes
FM - Frequency Range87.9 - 107.9MHz
AM - Frequency Range530-1,700kHz
Audio
Maximum Power Output (Front & Rear)50Wx4
Full Bandwidth Power (Front & Rear)22W x 4 (Full Bandwidth Power, at less than 1% THD)
EQYes (13-Band Graphic EQ)
Preset EQYes (8Preset + 4user)
Bass BoostYes
High-Pass Filter/Low-Pass FilterYes/Yes
3-Way X'overYes
High-Resolution AudioYes
K2 TechnologyYes
Space EnhancementYes
Sound ResponseYes
Sound LiftYes
Volume Link EQYes
Time AlignmentYes

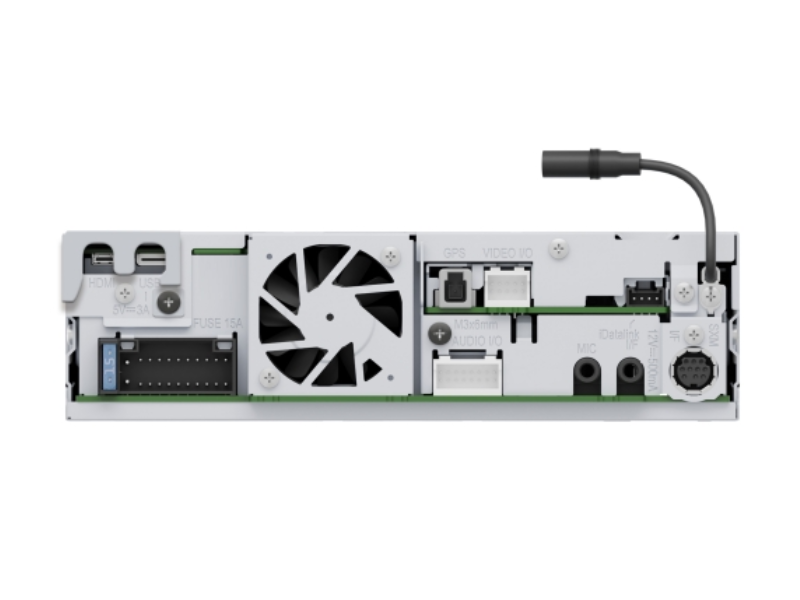

Inputs and Outputs
AV InputRCA (AV-IN or Camera Input switchable)
Video OutRCA
HDMI TerminalYes
Camera InputMax 4 inputs (including AV- IN's assignable input)
Line Output Terminals3 Pairs (Front + Rear + Subwoofer)
Pre-output Level/Impedance4V
Subwoofer Output with Level/Frequency ControlYes
General
iDatalink Maestro ReadyYes
JVC Portal AppYes
Remote Control ApplicationYes
Face Type
Viewing Angle AdjustmentYes (0 - 20 degree, default : 0 degree) 4 steps
Wireless Remote ControlOptional (RM-RK259K)
Steering Remote Control ReadyYes
Dimensions (W x H x D)
Installation SizeChassis: 7" x 2" x 6-1/4" (178 x 50 x 158 mm) Monitor: 10-5/16" x 7-1/8" x 1-9/16" (262 x 176 x 41 mm)
Weight5.6 lbs. (2.5kg)
Unit weight in individual package3.5kg
