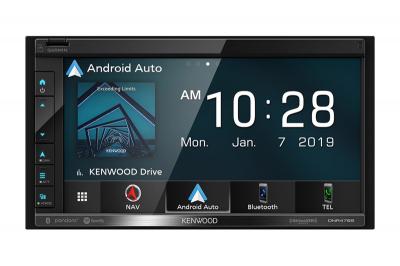

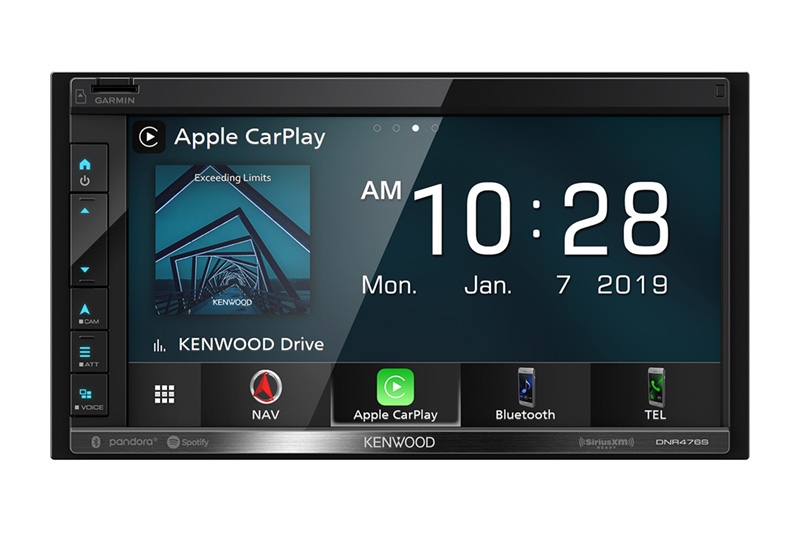

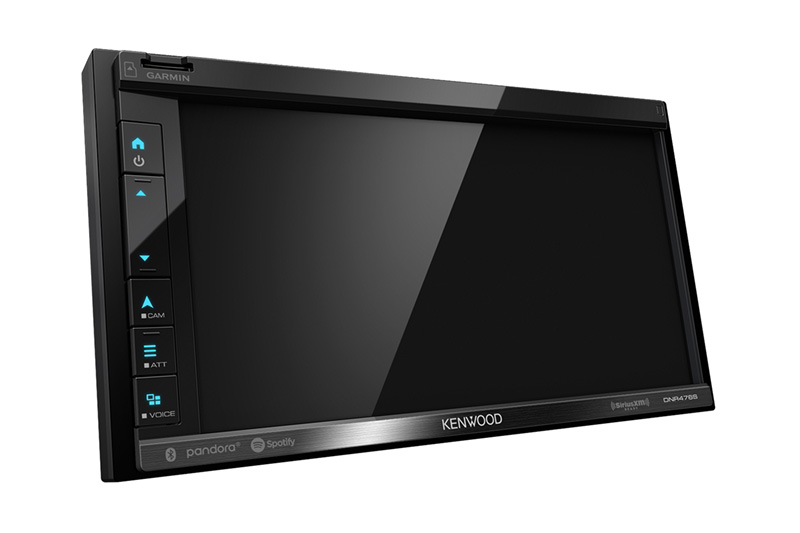

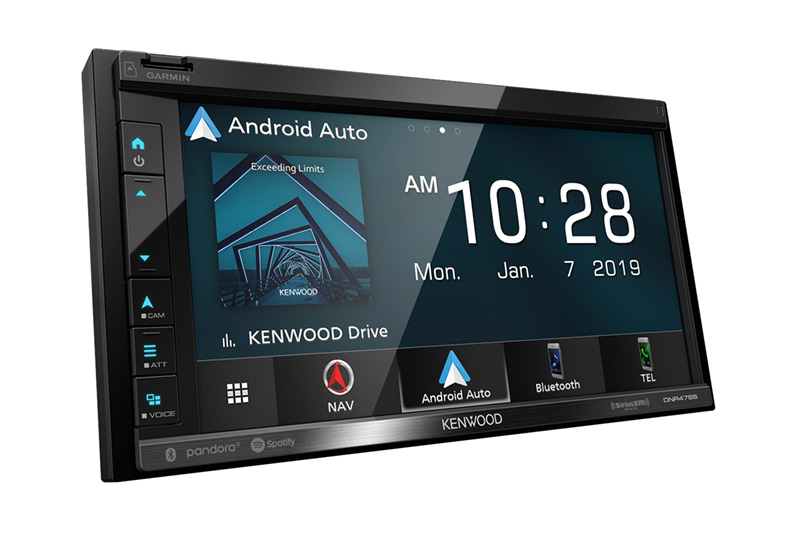

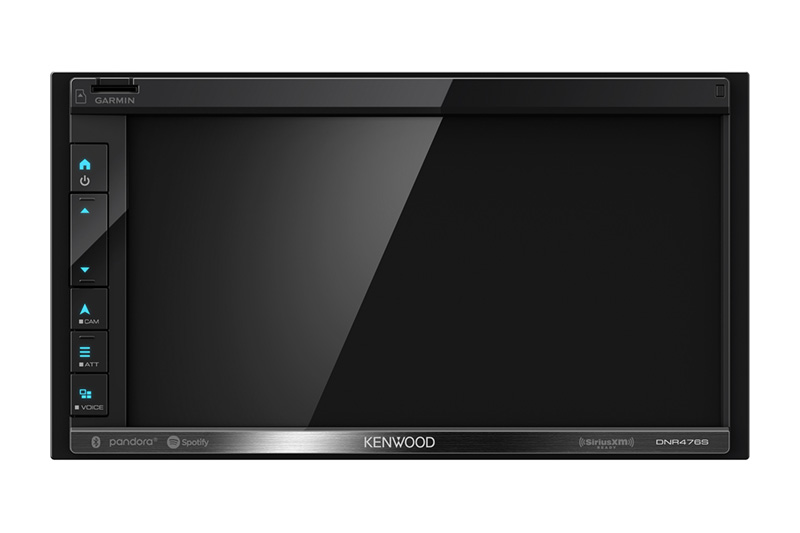

Kenwood Navigation Digital Multimedia Receiver with Bluetooth - DNR476S

Authorized Dealer Price Match Guarantee
Price Match Guarantee
The Power Centre offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.
Our Price $949.00 CAD

Or as low as $158.17/month over 6 months. Apply Now


Availability
Call for availability

Literature
  • 6.8" WVGA Monitor

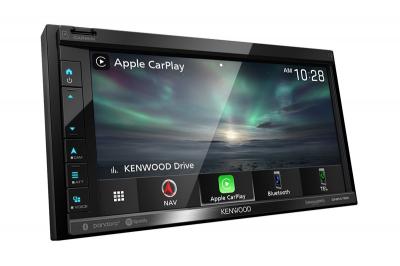

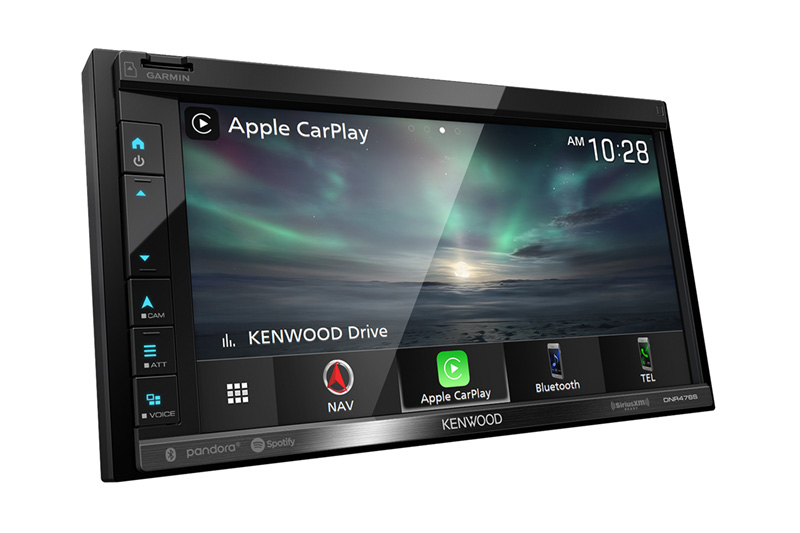

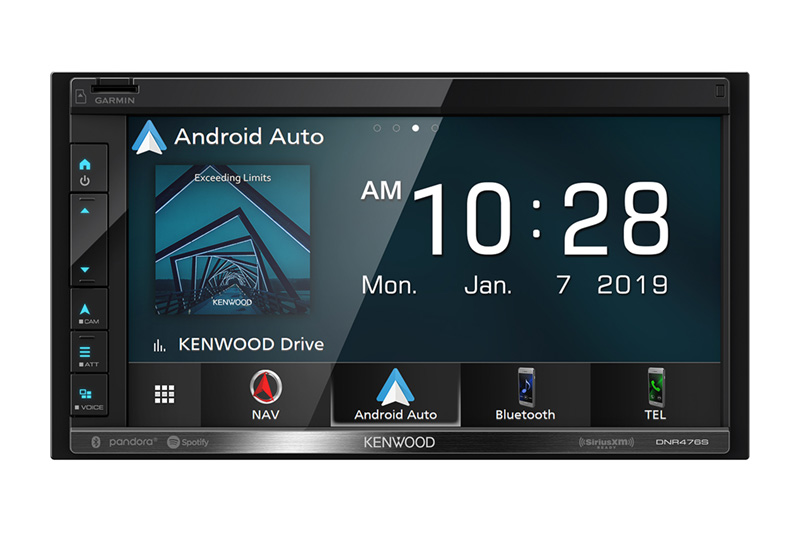

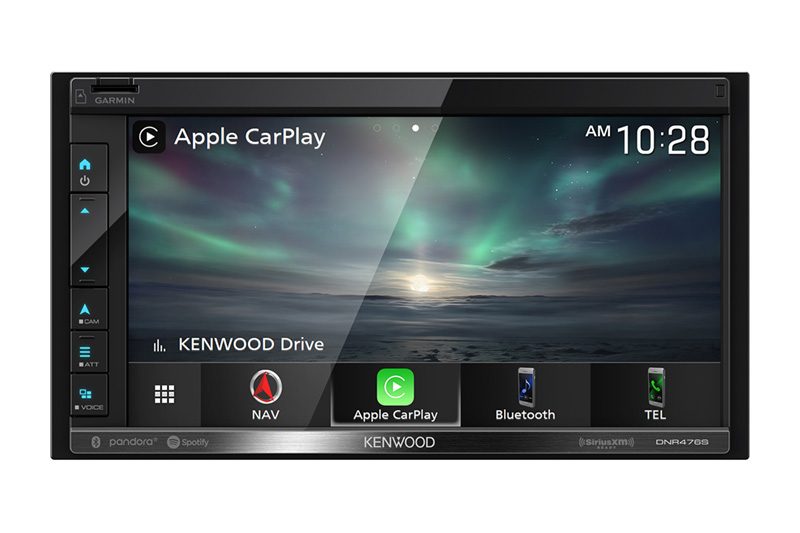

  • Apple CarPlay® & Android Auto™ Ready
  • High-Resolution Audio Ready
  • Customizable Multi Widget Screen

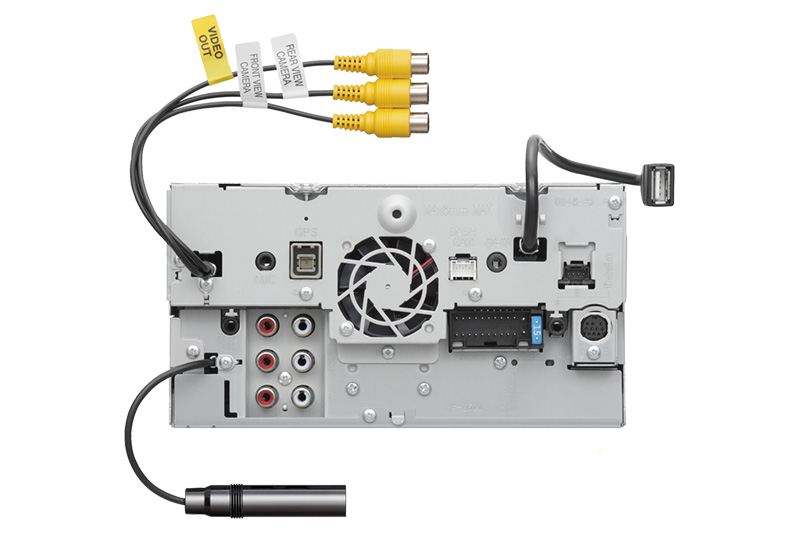

  • 3 Camera Inputs
  • Built-in Bluetooth
  • 3 Preouts 4V

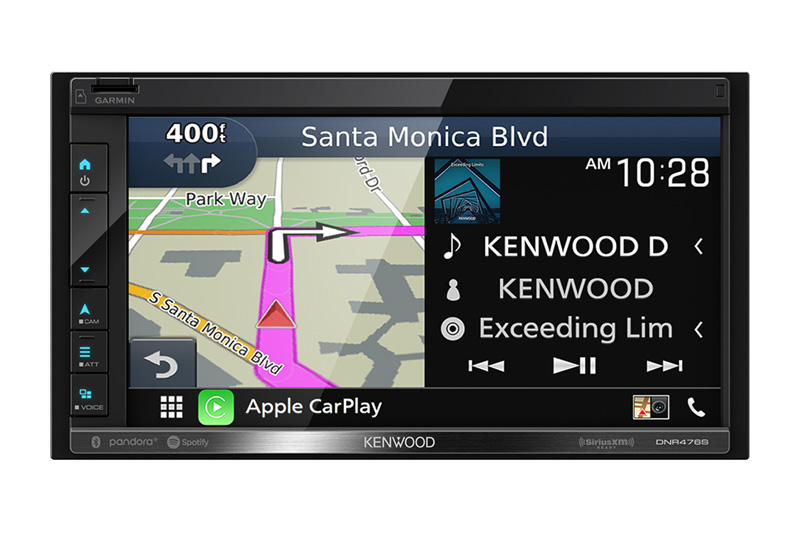

Advanced Navigation

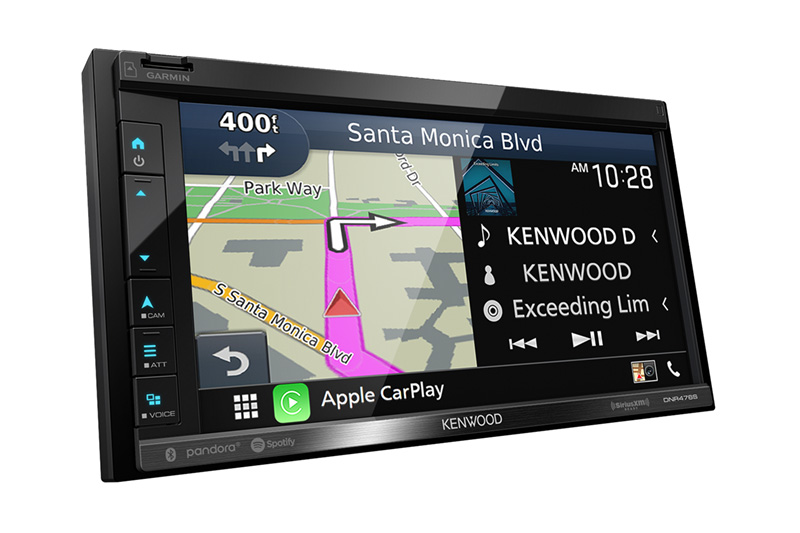

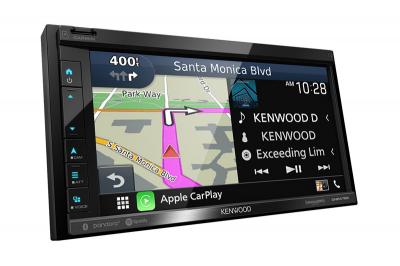

Equipped with the industry leading Garmin navigation software, offering a variety of display options to make your driving easier.

Smartphone Connectivity

Enjoy convenient control of popular apps like Spotify and Pandora, built-in Bluetooth for hands-free calls and streaming music, as well as the ability to use your smartphone like a wireless remote control.

The Best Audio Experience

Sound quality enthusiasts will love the playback support of various types of music formats, including compatibility with FLAC files. Simple touch screen sound customization is also available with its built-in 13-Band EQ and Digital Time Alignment.

Safe Driving

Keeping you safe on the road ahead is our top priority.

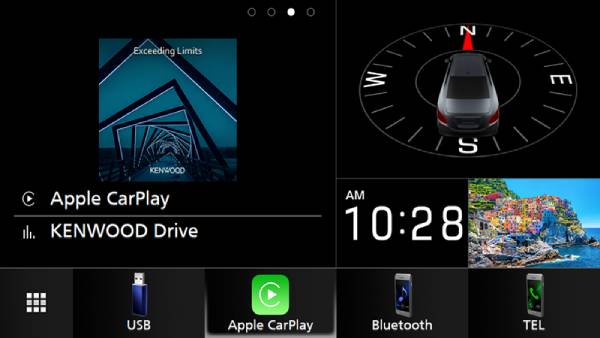

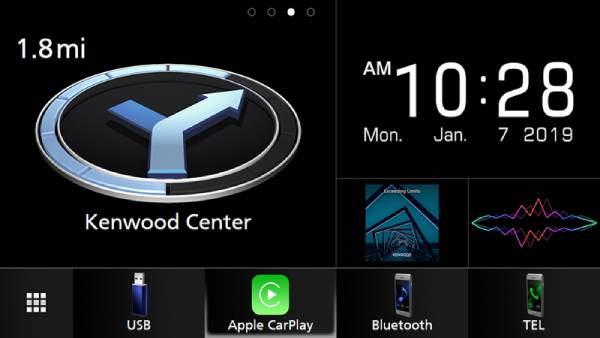

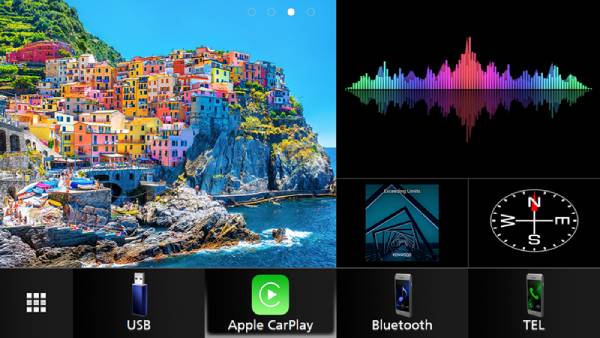

Customizable Multi Widget Screen

You can customize your home screen by selecting four widgets. Depending on the model, widget options can include album art of current song, clock, compass, photo frame, visualizer, weather, turn-by-turn, Garmin navigation and more.

SiriusXM Radio Ready

Access additional music, sports and entertainment content on the go with SiriusXM Radio. (Optional SiriusXM tuner required, sold separately)

Monitor Section
Picture size 6.75 inches(diagonal) wide
W x H 151.8 mm x 79.68 mm, 5-31/32 x 3-1/8 inch
Display systemTN LCD panel
Drive system TFT active matrix system
Number of pixels 1,152,000 800H x 480V x RGB
Effective pixels99.99%
Pixel arrangementRGB striped arrangement
Back lighting LED
USB I/F Section
USB Standard USB2.0 High Speed
File System FAT 16/32, exFAT, NTFS
Maximum Power Supply CurrentDC5V=1.5A
D/A Converter 24/32Bit
Audio Decoder MP3 / WMA / AAC / WAV / FLAC / Vorbis
Video Decoder MPEG1/2,MPEG4 / WMV / H.264 / MKV
Frequency response - 192k Sampling 20 - 88,000 Hz
Frequency response - 96k Sampling20 - 44,000 Hz
Frequency response - 48k Sampling 20 - 22,000 Hz
Frequency response - 44.1k Sampling 20 - 20,000 Hz
Total harmonic distortion 1kHz 0.0001%
Signal to Noise ratio 98.5dB
Dynamic range89dB
SD Section
SD Standard SD / SDHC / SDXC
Compatible File System FAT 16/32, exFAT, NTFS
Capacity Maximum 2T Byte
Data Transfer Rate Maximum 25MB/sec
Audio DecoderMP3 / WMA / AAC / WAV / FLAC / Vorbis
Video Decoder MPEG1/2,MPEG4 / WMV / H.264 / MKV
Bluetooth Section
Technology Bluetooth Ver5.0
Frequency2.402 – 2.480 GHz
RF Output Power (E.I.R.P.) +4dBm (MAX), Power Class 2
Maximum Communication range Line of sight approx.10m(32.8ft)
Audio Codec SBC / AAC
Multi Profile Support Multi Profile
Profile HFP (V1.7) (Hands Free Profile) SPP (Serial Port Profile) A2DP (Advanced Audio Distribution Profile) AVRCP (V1.6) (Audio/Video Remote Control Profile) PBAP (Phonebook Access Profile)
DSP Section
Graphics equalizer - BAND13Band
Graphics equalizer - frequency (Hz) (BAND1-13) 62.5/100/160/250/400/630/1k/1.6k/2.5k/4k/6.3k/10k/16k
Graphics equalizer - Gain -9/-8/-7/-6/-5/-4/-3/-2/-1/0/1/2/3/4/5/6/7/8/9[dB]
2Way X'Over - HIGH PASS FILTER frequency Through/30/40/50/60/70/80/90/100/120/150/180/220/250[Hz]
2Way X'Over - SLOPE -6/-12/-18/-24[dB/Oct.]
2Way X'Over - LOW PASS FILTER frequency 30/40/50/60/70/80/90/100/120/150/180/220/250/Through[Hz]
2Way X'Over - SLOPE -6/-12/-18/-24[dB/Oct.]
Position - Front / Rear /Subwoofer Delay0 - 20.01ft (0.03or0.04ft Step)
Position - Gain -8 to 0dB
Position - Subwoofer Level-50 to +10dB
FM
Frequency Range (Frequency step) 87.9MHz - 107.9MHz (200kHz)
Usable sensitivity S/N30dB9.3dBf 0.8μV/75Ω
Quieting sensitivity DIN S/N 46dB 10.2dBf 1.13μV / 75Ohms
Frequency response (±3.0dB) 30Hz - 15kHz
S/N (dB) 65dB (MONO)
Selectivity Over 80dB (±400kHz)
Stereo separation 45dB (1kHz)
AM
Frequency Range (Frequency step)530kHz - 1700kHz (10kHz)
Usable sensitivity 28dBμ
Video
Color system of external video input NTSC/PAL
External video input level (Mini jacks) 1 Vp-p / 75 Ohms
External audio max input level (Mini jacks) 2 V / 25 kOhms
Video Input level (RCA jacks) 1 Vp-p / 75 Ohms
Video Output level (RCA jacks) 1 Vp-p / 75 Ohms
Audio Output level (Mini jacks)0.9 V / 10 kOhms
Audio
Maximum Power Output (Front&Rear)50Wx4
Typical Power Output (Front&Rear) Full Bandwidth Power (at less than 1%THD) 22Wx4
Output frequency band 20 - 88,000Hz
Preout level (V) 4V / 10kOhms
Preout impedance (Ω)=< 300 Ohms
Speaker Impedance (Ω) 4-8 Ohms
Navigation Section
Receiver High-sensitivity GPS receiver
Receiving frequency 1575.42MHz (C/A code )
Acquisition Times Cold: 29 seconds(typ) All satellites at -130dBm Without aiding
Update Rate 1/second, continuous
Accuracy Position: < 2.5meters,CEP, at -130dBm
Accuracy Velocity: 0.1meter/sec
Positioning Method GPS
Antenna External GPS Antenna
General
Operating voltage 12V DC Car Battery
Maximum Current consumption 15A
Installation Dimensions WxHxD 178mm x 100mm x 155mm 7-3/16 x 4-7/16 x 6-2/16 inch
(with Sleeve) 182mm x 112mm x 153mm 7-3/16 x 4-7/16 x 6 inch
Operational temperature range -10°C to +60°C
Weight Main unit 1.7 kg 3.8 lb
