Kenwood Motorsports HD Dash Camera With GPS - STZ-RF200WD

Authorized Dealer Price Match Guarantee
Price Match Guarantee
The Power Centre offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.
Our Price $699.00 CAD

Or as low as $233.00/month over 3 months. Apply Now


Availability
Call for availability

Literature

Catch ALL of the ACTION

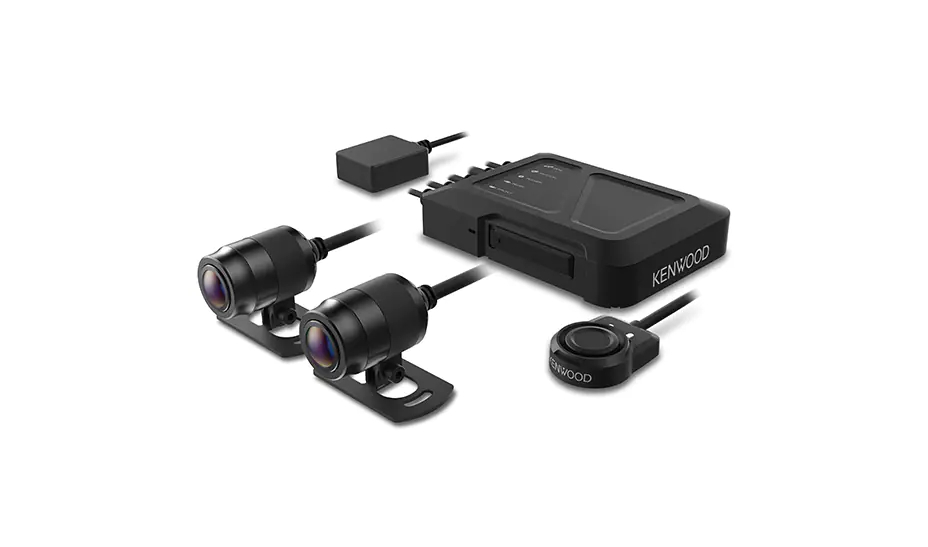

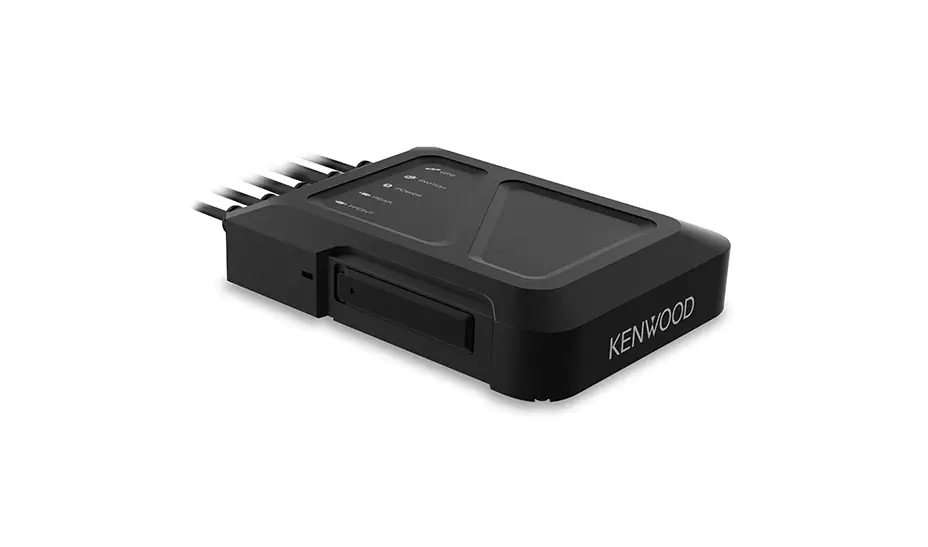

Introducing a motorsports-grade Dual Camera recording system with hide-a-way control box for stealth installations in motorcycles, side-by-sides/UTV's, ATV's, watercraft & more.

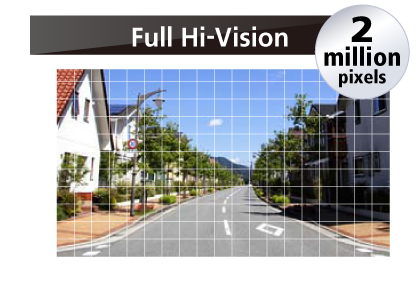

2 Megapixel HIGH DEFINITION Recording

Captures clear video from both directions.

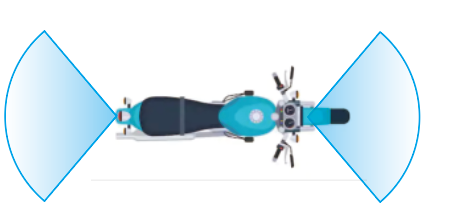

FRONT & REAR View Recording

The STZ-RF200WD includes 2 cameras: 1 to record in front of your vehicle and 1 to record behind your vehicle, all at the same time.

EXTRA WIDE VIEW Camera Coverage

Both cameras cover a 195° (diagonal) extra wide range field of view.

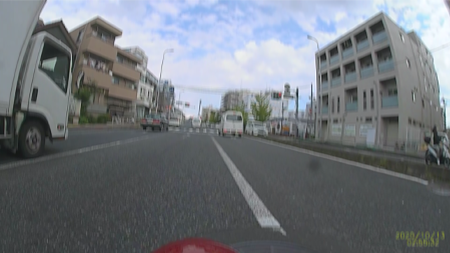

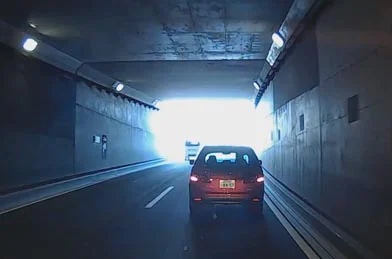

HDR (High Dynamic Range) for Backlighting

Built-in HDR easily records clear images in dark or well lit environments without underexposing or overexposing the image, ensuring superior night vision recording.

without HDR

with HDR

EIS (Electronic Image Stablization)

Bumpy roads and surfaces have met their match! Count on smooth and steady images with effective compensation for camera shakes with its built in image stabilization.

without EIS

with EIS

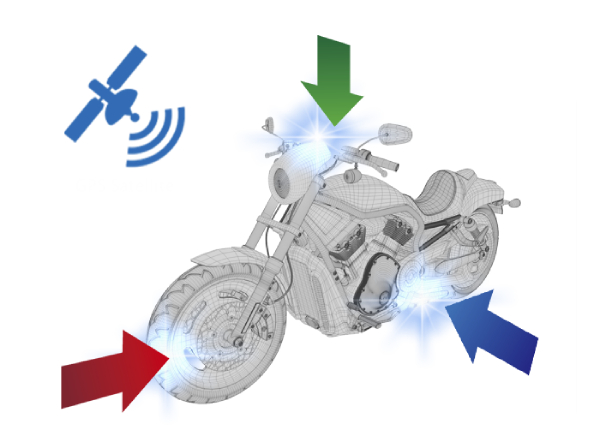

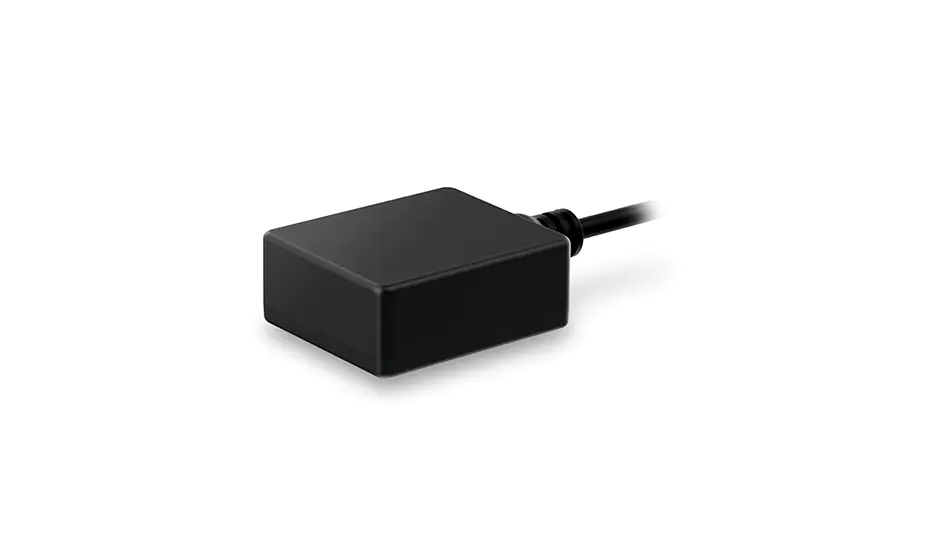

3-axis G-sensor & GPS

The STZ-RF200WD is equipped with a 3-axis G-Sensor designed to detect a collision and GPS that records speed, latitude, and longitude.

Waterproof & Dustproof

The cameras, GPS, and switch all carry an IP66/67, meaning that they can resist high-pressure, heavy sprays of water. They are also fully sealed against dust entry. The main unit carries an IP55 rating, meaning that it is protected against dust ingress and low pressure water jets.

MEMORY Included

A 32GB microSD card is included so that you can be ready to catch all of the action right out of the box. The system supports up to a 256GB microSD card (sold separately).

SUPER Capacitor

If power is lost, this prevents the recorded video file from being corrupted, as it provides enough power to allow the video file to close properly.

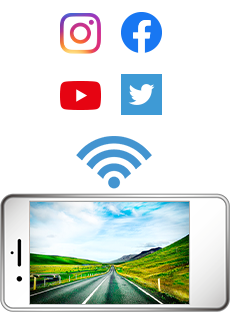

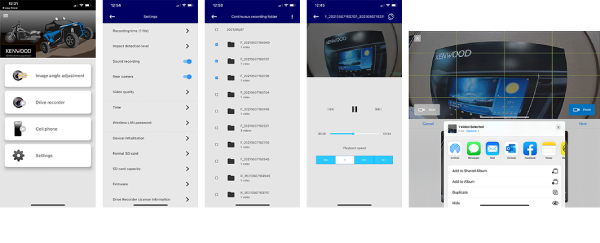

WIRELESS Link

Enables video playback, file transfer, and easy setup via the KENWOOD Motorsports CAM smartphone app

Once files are transferred to device, you can easily share recorded videos.

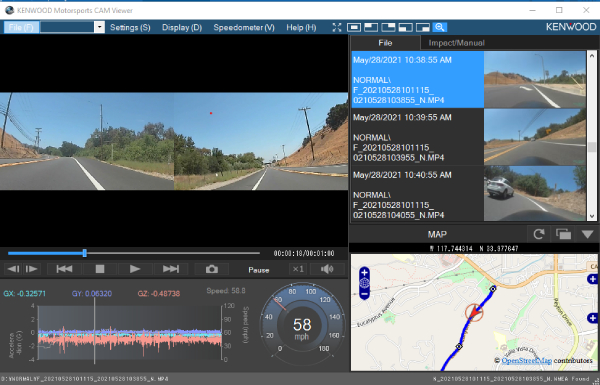

Review the ACTION

KENWOOD Motorsports CAM Viewer is a desktop software for displaying video recorded with this system.

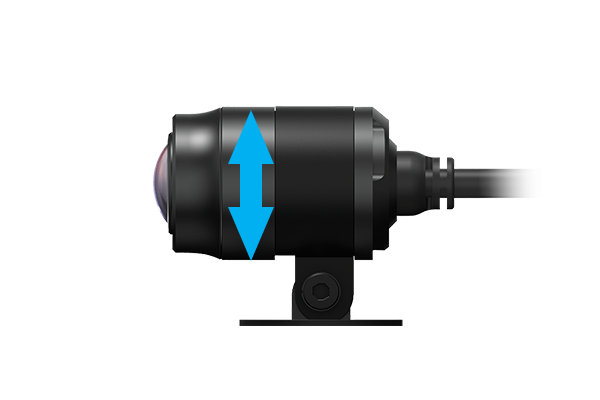

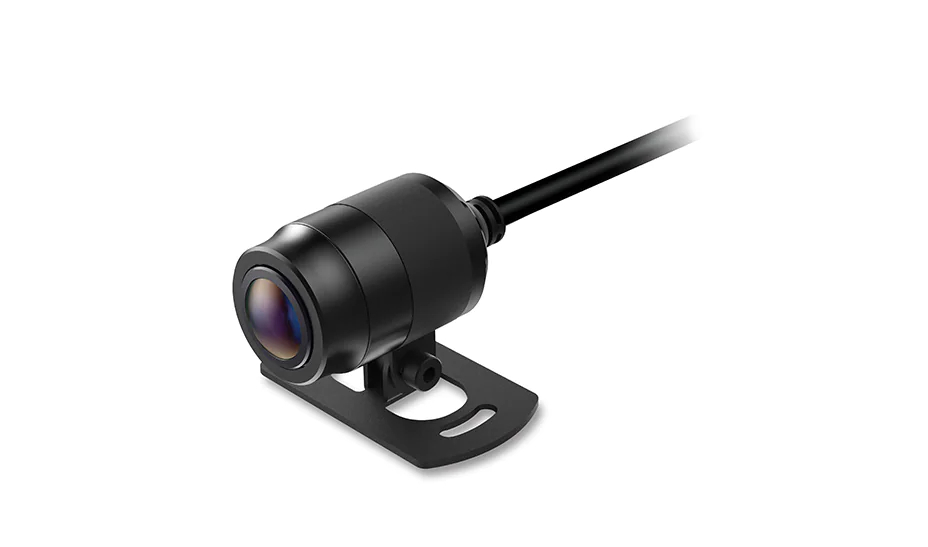

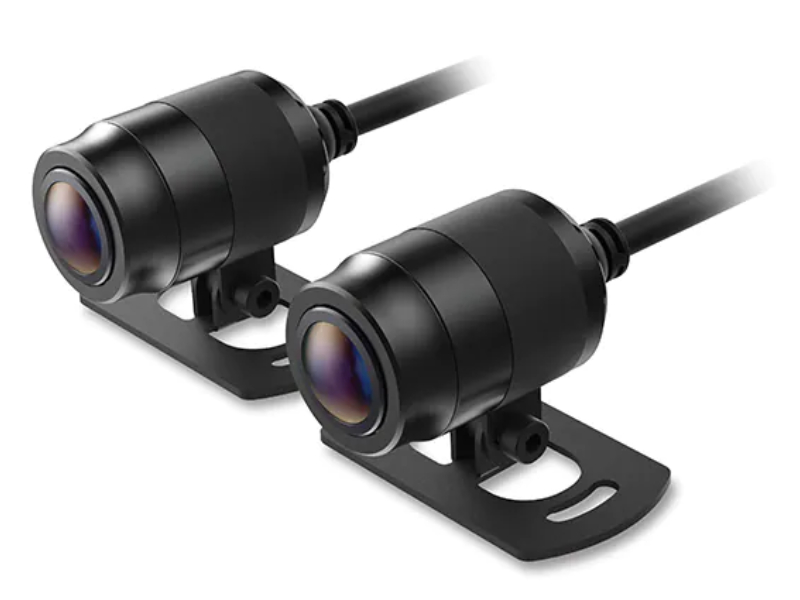

Compact Front & Rear Cameras

Small camera size provides for a stealthy look and easier installation in various locations.

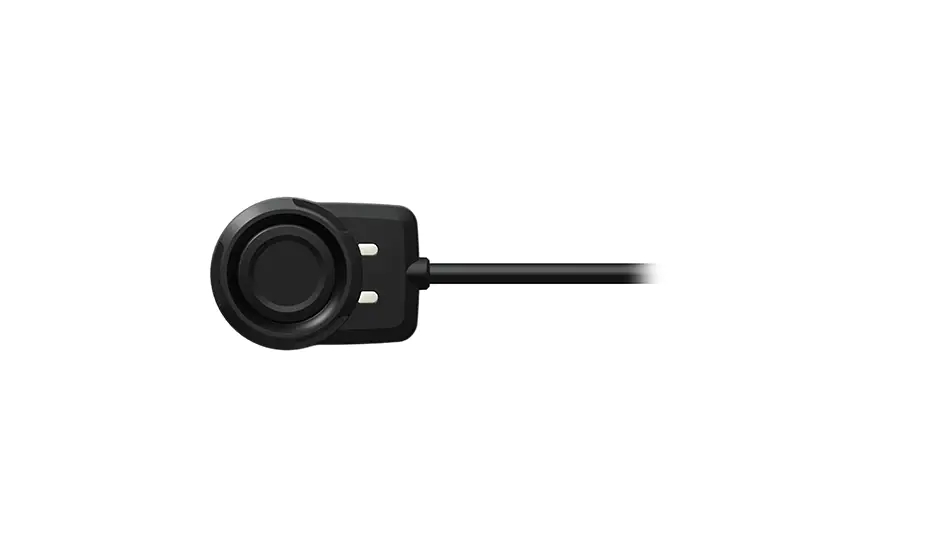

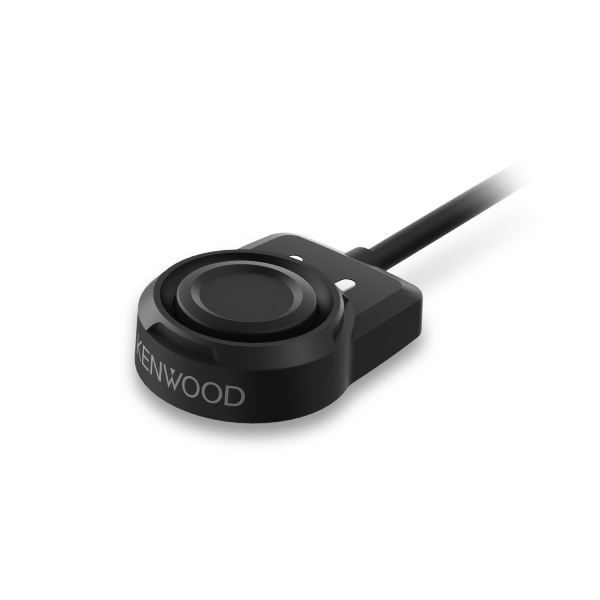

YOU are in CONTROL

Multi-function control switch for simplified system control.

System Installation Example

  • Cable Length(Total connected length from main unit)
  • GPS Antenna : 6.6ft / 2m
  • Switch : 6.6ft / 2m
  • Front Camera : 6.6ft / 2m
  • Rear Camera : 6.6ft / 2m
  • Power Cable : 3.3ft / 1m

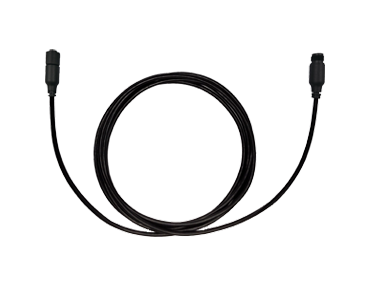

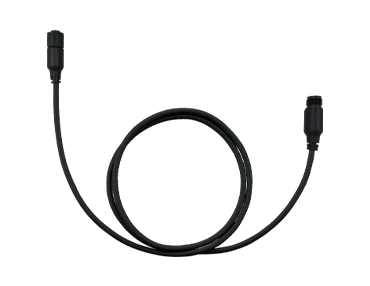

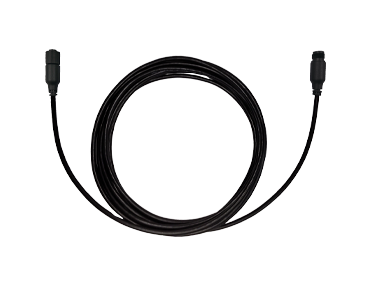

EXPAND Your Options

Optional camera extension cables to enable installation in a larger variety of vehicle types.

STZ-RFCC500

16ft (5m) Extensional Cable

STZ-RFCC300

9ft (3m) Extensional Cable

STZ-RFCC100

3.3ft (1m) Extensional Cable

Waterproofing/Dustproofing
Main UnitIP55
CamerasIP66/67
GPS/GLONASS AntennaIP66/67
Control SwitchIP66/67
Front & Rear CameraUnits
Image Sensors2 Megapixels ( effective pixels : 1.86 megapixels)
Lens Viewing Angle195° Diagonal (effective angle: 181°)
Frame Rate27.5 fps
F-number2.2
Recording Resolution
Recording Resolution1920 x 1080
Video Quality
Video QualityFine / Normal
Video File Format
Video File FormatMP4 ( Video format : H.264 audio format : AAC)
Recorded File Length
Recorded File Length30 seconds / 1 minute / 3minutes (Recording time for one file)
Recording Mode
Recording ModeContinuous recording, event recording, manual recording
Data Recorded
Data RecordedVideo file, time and date, speed, location information
Audio Recording
Audio RecordingON / OFF
HDR
HDRYes
G-sensor
G-sensorYes (5 impact sensitivity settings / OFF)
GPS
GPSYes
Electronic ImageStabilization
Electronic ImageStabilizationYes
Positioning Satelites
Positioning SatelitesGPS / GLONASS
Storage Media
Storage MediamicroSDHC, microSDXC Class 10 UHS-I
Storage Media16GB to 256GB
Recorded video Playback Methods
Recorded video Playback MethodsKENWOOD Motorsports CAM App
Recorded video Playback Methods-iOS 11 or later
Recorded video Playback Methods-Android 7 or later
Recorded video Playback MethodsKENWOOD Motorsports CAM Viewer
Recorded video Playback Methods- Apple Mac OS 10.14(Mojave) or later
Recorded video Playback Methods- Microsoft Windows 10
POWER SUPPLY
Power SupplyDC 12V
Power Consumption
Power Consumption0.48 A
Measurement( W x D x H)
Main unit79 × 104 × 22.5 mm, 3-1/8 x 4-1/8 x 7/8 inches
Camera /pc23.5 (Φ) × 34.4 mm, 15/16(Φ) x 13/8 inches
GPS/GLONASS Antenna27.4 × 33 × 13 mm, 1-1/8 x 1-5/16 x 1/2 inches
Control Switch25.8 × 36.9 × 9.5 mm, 1 x 1-7/16 x 3/8 inches
Weight(Excluding Cable)
Main unit105 g (0.2315 lb)
Camera / pc42 g (0.0926 lb)
GPS/GLONASS Antenna14 g (0.0309 lb)
Control Switch9 g (0.0918 lb)
Operating Temprature
Operating Temprature-20 °C to +60 °C, (-4 °F to 140 °F)
Warrantly
Warrantly1year
