Kenwood Digital Multimedia Receiver With Built In Bluetooth - DMX4707S

Authorized Dealer Price Match Guarantee

Price Match Guarantee

The Power Centre offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.

Price	$499.00
Savings	$51.00
Our Price	$448.00 CAD

Or as low as $149.33/month over 3 months. Apply Now

Quote Request

Availability
Call for availability

DMX4707S
Best Deal Promise

Literature

Description
Features

6.8" WVGA Monitor with Capacitive Touch Panel

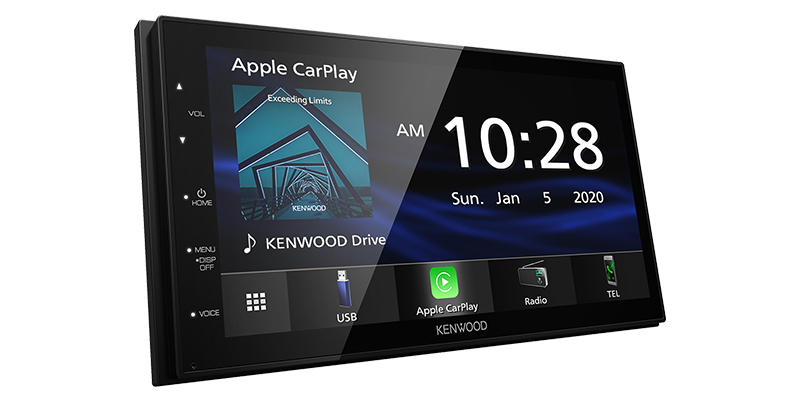

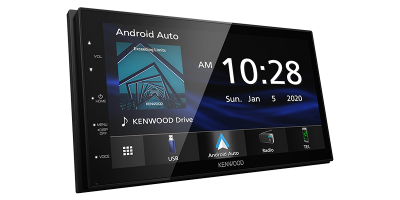

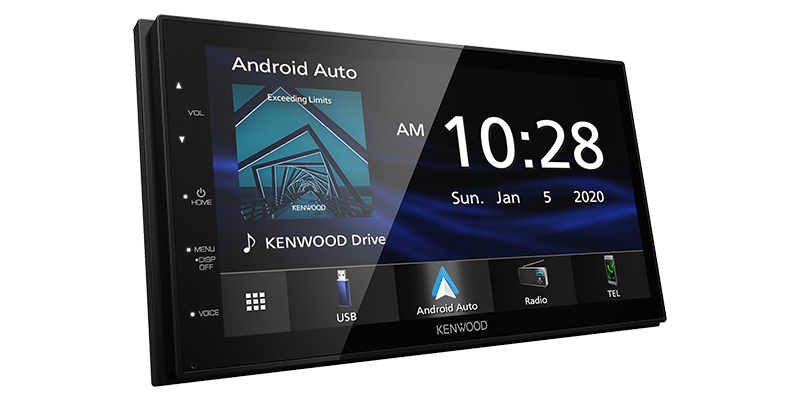

Apple CarPlay™ & Android Auto™
USB Mirroring for Android
13 Band EQ with Digital Time Alignment
Rear View Camera Input with Parking Guidelines
Built-in Bluetooth
Short Chassis
2 Preouts 2V + Subwoofer Out

Smartphone Connectivity

Enjoy convenient control of popular apps like Spotify and Pandora,built-in Bluetooth for hands-free calls and streaming music,as well as the ability to use your smartphone like a wireless remote control.

The Best Audio Experience

Sound quality enthusiasts will love the playback support of various types of music formats,including compatibility with FLAC files.

Simple touch screen sound customization is also available with its built-in 13-Band EQ and Digital Time Alignment.

Safe Driving

Keeping you safe on the road ahead is our top priority.

Additional Features

Learn about exciting product features and highlights.

Convenient and Easy-to-Use Capacitive Touch Panel

Provides a high contrast ratio, crystal clear display, and vivid text. Easy to use widgets provide access to information screens with a swipe.

SiriusXM Radio Ready

Access additional music, sports and entertainment content on the go with SiriusXM Radio.

Short Chassis Design

Only 2-15/16" (75mm) of depth for more flexible installation.

Remote Control (Optional)

This receiver unit can be operated using the optional remote control KNA-RCDV331.

Monitor Section
W x H	151.8 x 79.7mm, 5-15/16 x 3-1/8 inch
Picture size	6.75inches(diagonal) wide
Video
Video Output level (RCA jacks)	1.0Vp-p / 75 Ohms
External audio max input level (RCA jacks)	1.5V / 25k Ohms
External video input level (Mini jacks)	1.0Vp-p / 75 Ohms
Color system of external video input	NTSC/ PAL
AM
Usable sensitivity	99V(40dB)
(Frequency step)	(10kHz)
Frequency Range	530 - 1700 kHz
FM
Stereo separation	35dB (1kHz)
Selectivity	-
S/N (dB)	50dB (MONO)
Frequency response	(±3.0dB)
DIN S/N 46dB	-
Frequency response	30Hz - 14kHz
Quieting sensitivity	-
S/N:30dB	1.8V/75 Ohms
Usable sensitivity	16.2dBf
(Frequency step)	(200kHz)
Frequency Range	87.9 - 107.9 MHz
Bluetooth Section
Subwoofer Level	-40 to 6dB
Gain	-8 to 0dB
Front / Rear /Subwoofer Delay	0 to 6.1m (0.01m Step)
Gain	Position
Gain	-8/ -7/ -6/ -5/ -4/ -3/ -2/ -1/ 0 dB
SLOPE	-6/ -12/ -18/ -24 dB/Oct.
LOW PASS FILTER frequency (Hz)	30/ 40/ 50/ 60/ 70/ 80/ 90/ 100/ 120/ 150/ 180/ 220/ 250/ Through
Gain	-8/ -7/ -6/ -5/ -4/ -3/ -2/ -1/ 0 dB
SLOPE	-6/ -12/ -18/ -24 dB/Oct.
HIGH PASS FILTER frequency (Hz)	Through/ 30/ 40/ 50/ 60/ 70/ 80/ 90/ 100/ 120/ 150/ 180/ 220/ 250
Gain	2Way X'Over
Gain	-09 to 09 (-9dB to 9dB)
BAND	13 Band
frequency (Hz) (BAND1-13)	62.5/ 100/ 160/ 250/ 400/ 630/ 1k/ 1.6k/ 2.5k/ 4k/ 6.3k 10k/ 16k
DSP Section	Graphics equalizer
Profile	PBAP (Phonebook Access Profile)
Profile	AVRCP (V1.5) (Audio/Video Remote Control Profile)
Profile	A2DP (Advanced Audio Distribution Profile)
Profile	SPP (Serial Port Profile)
Profile	HFP (V1.6) (Hands Free Profile)
Multi Profile Support	Multi Profile
Audio Codec	SBC / AAC
Maximum Communication range	Line of sight approx.10m(32.8ft)
RF Output Power (E.I.R.P.)	8dBm (Avg.), Power Class 1
Technology	Bluetooth Ver4.1
Frequency	2.402 2.480 GHz
USB I/F Section
Dynamic range	75dB
Signal to Noise ratio	75dB
Total harmonic distortion 1kHz	0.2
44.1k Sampling	20 - 20,000 Hz
48k Sampling	20 - 20,000 Hz
96k Sampling	20 - 20,000 Hz
Frequency response 192k Sampling	20 - 20,000 Hz
Video Decoder	MPEG1/2,MPEG4 / WMV / H.264 / .mkv
Audio Decoder	MP3 / WMA / AAC / WAV / FLAC
D/A Converter	24Bit
Maximum Power Supply Current	DC5V=1.5A
File System	FAT 16/32 , exFAT
USB Standard	USB2.0 High Speed
Monitor Section
Pixel arrangement	RGB striped arrangement
Back lighting	LED
Effective pixels	99.99%
Number of pixels	800H x 480V x RGB
Number of pixels	1,152,000
Drive system	TFT active matrix system
Display system	Transparent TN LCD panel
General
(Including Sleeve and Trim plate)	1.3 kg / 2.8 lbs
Weight Main unit	1.1 kg / 2.4 lbs
Main Unit Installation size W x H x D(w/o sleeve)	178 x 100 x 75 (mm)
Installation Dimensions WxHxD	182 x 112 x 75 (mm)
Operating voltage	12V DC Car Battery
Audio
Speaker Impedance ()	4-8 Ohms
Preout impedance ()	1.4k Ohms
Preout level (V)	2.0V / 10k Ohms
Output frequency band	20 - 20,000Hz
Full Bandwidth Power	(at less than 1%THD)
Maximum Power Output (Front&Rear)	45Wx4
Full Bandwidth Power	21Wx4
