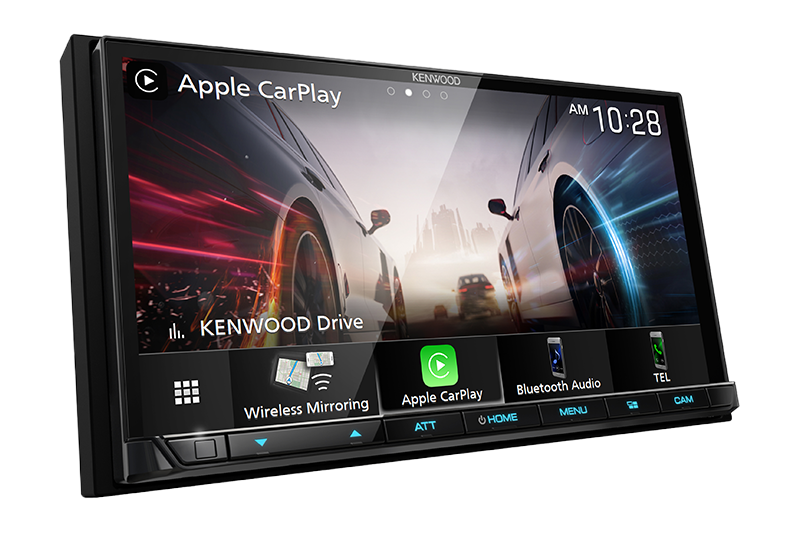

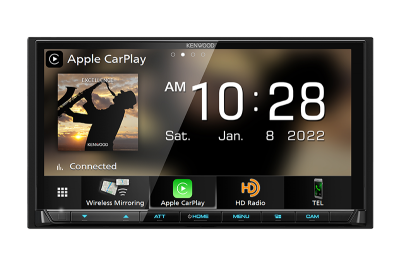

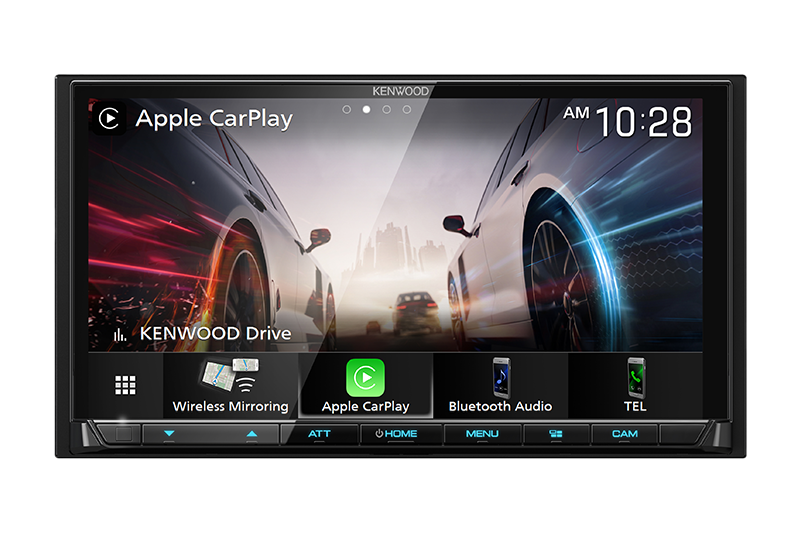

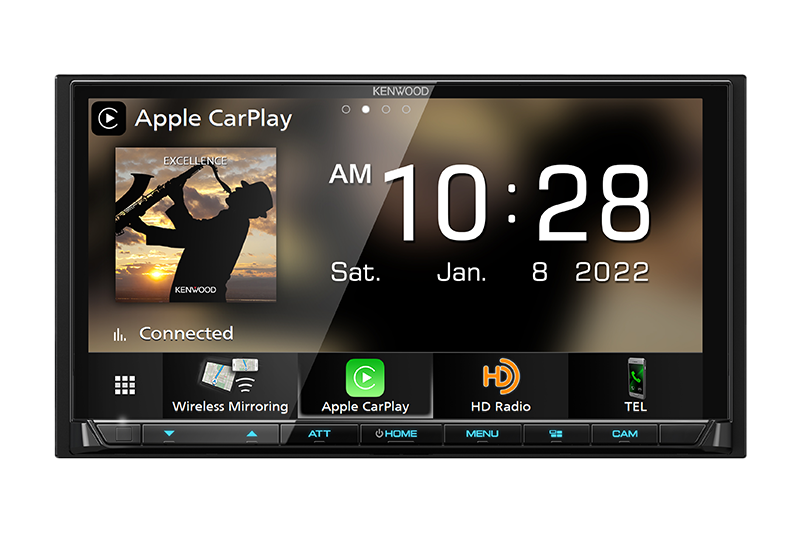

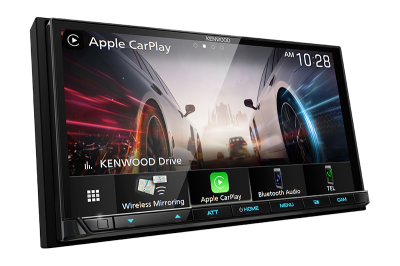

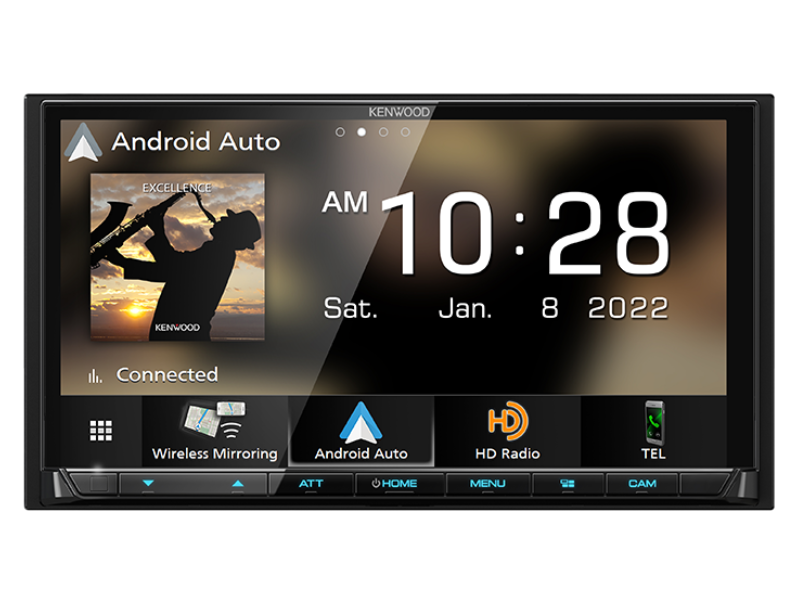

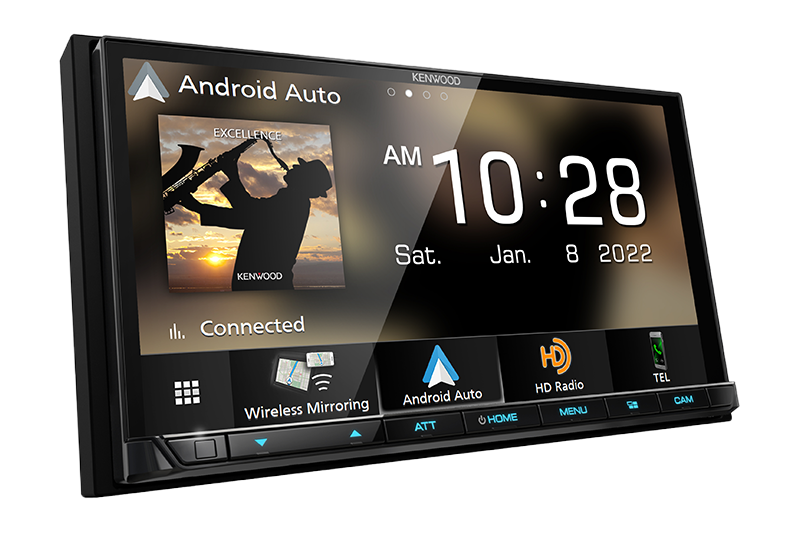

6.95" Kenwood Digital Multimedia Receiver with Bluetooth & HD Radio - DMX908S

Authorized Dealer Price Match Guarantee
Price Match Guarantee
The Power Centre offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.
Price$999.00
Savings$101.00
Our Price $898.00 CAD

Or as low as $149.67/month over 6 months. Apply Now


Availability
Call for availability

Literature

Features

Capacitive Touch Panel

Clear glass display with swipe functionality that provides superior picture and touch panel control.

High Quality Sound Parts

High quality sound parts (custom-made or carefully selected capacitor, etc) are adopted to provide superior sound quality.



Wireless Mirroring for Android

Solution for seamlessly displaying and controlling your smartphone apps on a screen without cables on select Android devices.

Graphic EQ / Digital Time Alignment

13-Band equalizer and DTA gives optimal tuning enhancements for listeners.



4 Camera Inputs

Optional camera connection method for up to 4 cameras in various configurations.

Drive EQ

Boosts specific frequencies in the audio signal to overcome the negative impact of road noise.



Parking Guidelines

Parking guidelines (requires installation of compatible backup camera) that enhance the effectiveness of a backup camera.

USB Type-C

USB Type-C cable and USB Type-A adapter are included to the set.

Rapidly charge your compatible Android smartphone with the USB port, up to a maximum of 3.0A



Music Mix

Up to 5 Bluetooth® devices can be paired to the receiver at the same time. You can enjoy audio streaming just by switching the devices with your friends or family.

Variable Color Illumination

Bright variable color LEDs can be adjusted to match any color dash lighting.



Dual Phone Connection

While you are connected through Bluetooth, with a touch of a button you can switch between two phones.

Short Chassis

With receivers shorter in depth than any of our previous models, installation is made easier in a wider range of cars than ever before.



Smartphone Connectivity

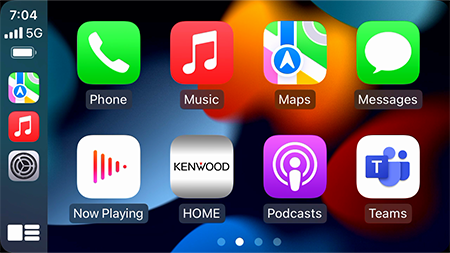

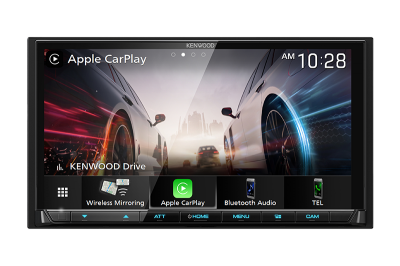

Safe, Smart and Comprehensive Control with Apple CarPlay

Apple CarPlay is a safer way to use your iPhone in the car. Simply talk to Siri or touch the receiver’s display to get directions from Apple Maps, make phone calls, listen to voicemail, send and receive texts, and listen to music from Apple Music or your favorite 3rd party streaming services like Pandora and Spotify, all in a way that allows you to stay focused on the road. With the latest iOS version (iOS 12.0 and higher), 3rd party navigation apps like Google Maps™ and Waze™ are also supported. KENWOOD Wi-Fi receivers now support Apple CarPlay wirelessly (compatible phone required).

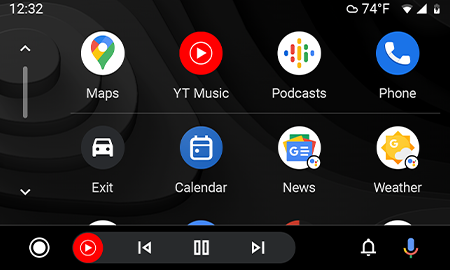

Android Auto for Easy Connectivity

Android Auto was designed with safety in mind, helping you to minimize distractions and stay focused on the road. KENWOOD’s multimedia receivers combine an intuitive voice controlled interface with a large touch screen and superior sound quality, making it the perfect complement for your in-car life. You can even listen to and control music from your favorite streaming services like Pandora and Spotify. Navigate to where you need to with Google Maps or Waze. KENWOOD Wi-Fi receivers also support Android Auto wirelessly (compatible phone required).

- To use Android Auto on your car display, you’ll need an Android Auto compatible vehicle or aftermarket stereo, an Android phone running Android 6.0 or higher, and the Android Auto app.

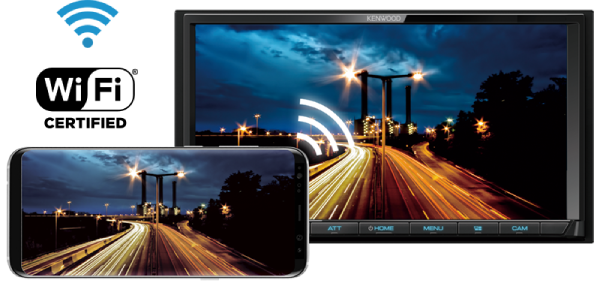

Wireless Mirroring for Android

Solution for seamlessly displaying and controlling your smartphone apps on a screen without cables on select Android devices.

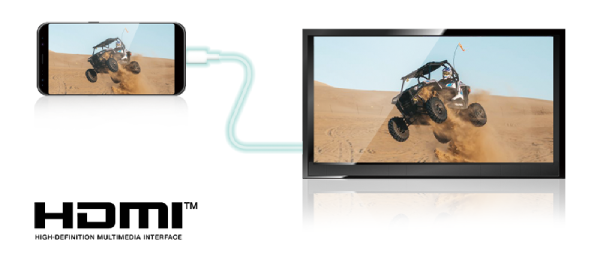

HDMI Input

Display your smartphone screen or other device via an HDMI cable (and third party adapter as applicable) on the monitor. KCA-HD200 optional HDMI cable sold separately.



Streaming Music

Listen to popular music applications and music stored on your device with basic audio controls.



Equipped with the Intuitive KENWOOD Music Mix

Up to 5 Bluetooth® devices can be connected to the receiver at the same time, allowing you to take turns streaming music with your friends and family.



Dual Phone Connection

While you are connected through Bluetooth, with a touch of a button you can switch between two phones.



Control the Receiver from Your Smartphone with the KENWOOD Remote App S

A smartphone application can control most basic functions of the receiver over the Bluetooth connection of the paired phone (iPhone or Android).



KENWOOD Portal App

Display image files stored in your iPhone or Android on the receiver's photo frame widget and/or wallpaper.



The Best Audio Experience

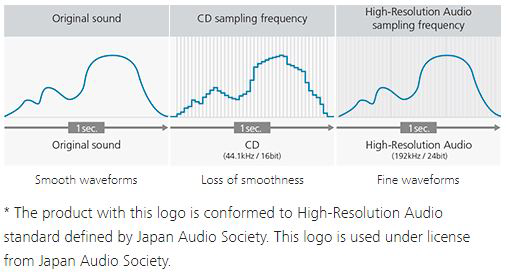

Rich and Immersive High-Resolution Audio

High-Resolution Audio is high-quality sound that far exceeds CD standards, and can play 192kHz / 24Bit sampling DSP. It captures and beautifully expresses details and nuances from the ultra-high to low frequencies.

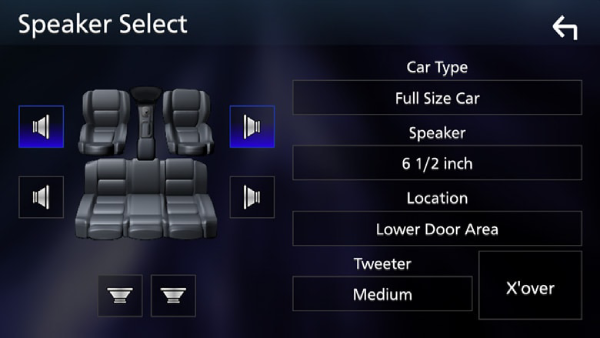

Optimal Sound Performance with 13 Band Graphic EQ and Time Alignment

Use the graphic equalizer to tailor the sound quality to your unique tastes. Additional sound staging is available with the Time Alignment feature, designed to provide optimal sound performance.

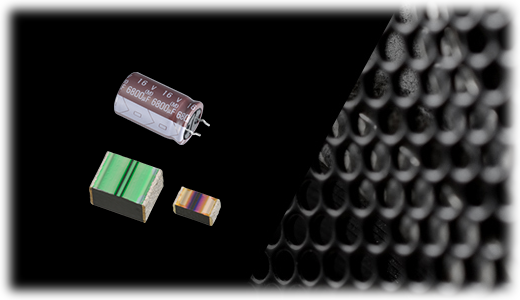

High Quality Audio Parts Supporting High-Resolution Audio Reproduction

To ensure the best possible sound quality, this receiver uses custom-made and carefully selected parts, such as audio quality power supply capacitors and high quality coupling capacitors. These parts are further optimized through meticulous tuning of the component values and circuit paths.

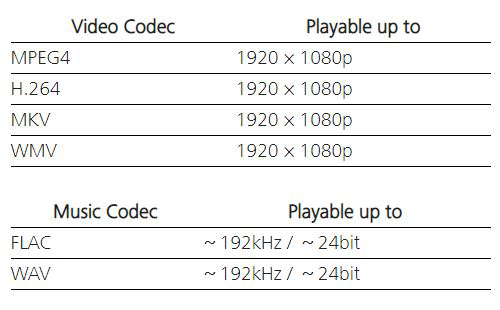

Playable Video & Audio Files

You can play back from USB devices audio and video files compressed in various formats.



Safe Driving

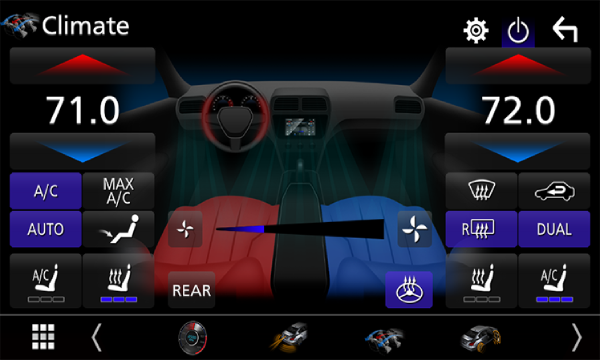

ENHANCED VEHICLE INTEGRATION

Compatible with both the Automotive Data Solutions iDatalink Maestro RR and RR2 (sold separately)* for enhanced system vehicle integration. In addition to providing the seamless factory integration experience you have become accustomed to with the RR, this model feature expanded support when connected to the RR2, including an Advanced Driver Assistance Systems (ADAS) Widget, Customizable Accessory Controls, and compatibility with specific ESCORT radar detector systems (sold separately). *Available features vary by vehicle

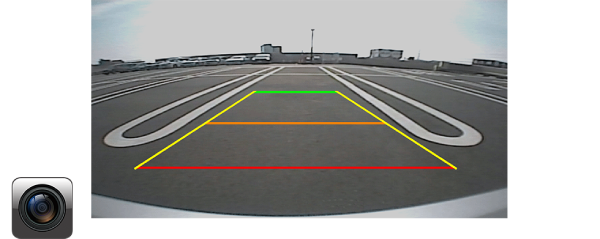

Rear View Camera Input with Parking Guidelines

An optional rear view camera enhances safety while backing up and monitoring behind your vehicle. Built-in, adjustable parking guidelines further add to its effectiveness.

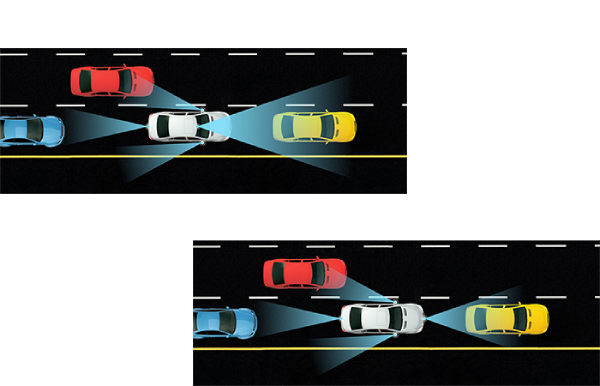

4 Camera Inputs

To enable a smarter driving experience, receivers featuring 4 camera inputs allow for the utmost in convenience, flexibility, and safety. With 4 camera inputs, you can connect a front camera, a KENWOOD dashboard camera (DRV-N520 sold separately), and rear and side (blind spot) cameras. Alternatively, 4 camera inputs can support several other configurations, including the connection of 2 side cameras, a front camera, and a reverse camera. Camera switching is available using on screen controls, or automatically for side cameras when an optional iDatalink Maestro RR is connected (supported vehicles only).

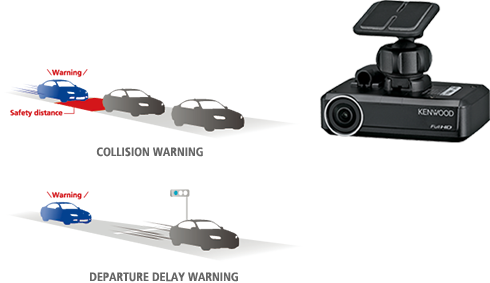

Dash Cam Link Ready

Full HD video recording is available with a DRV-N520 compact windshield mount camera that can record every event in front of you while you drive. High Dynamic Range (HDR) allows flawless recording regardless of extreme bright light or very dark conditions. With a built-in gyro sensor, if an accident occurs it will be saved in a separate portion of memory within the 8GB SD card for viewing. Additional safety and warning features can be activated to avoid frontal collisions or remind you if traffic has moved in front of you.



Additional Features



Convenient and Easy-to-Use Capacitive Touch Panel

Provides a high contrast ratio, crystal clear display and vivid text. Easy to use widgets provide access to information screens with a swipe.

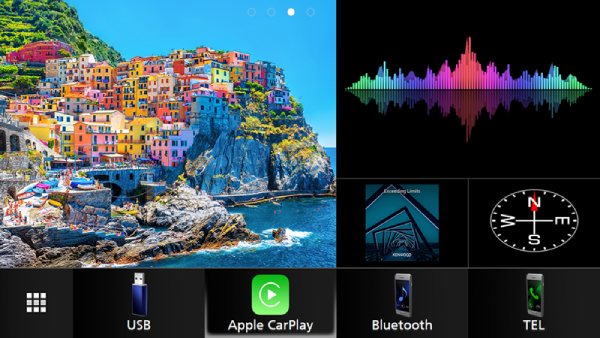

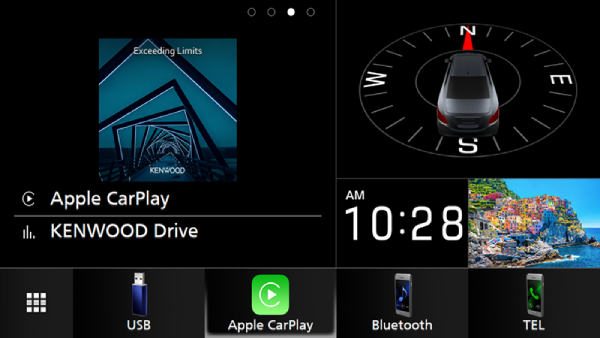

Customizable Multi Widget Screen

You can customize your home screen by selecting four widgets. Depending on the model, widget options can include album art of current song, clock, compass, photo frame, visualizer, and more.



USB Type-C

USB Type-C cable and USB Type-A adapter are included to the set.Rapidly charge your compatible Android smartphone with the USB port, up to a maximum of 3.0A



SiriusXM Radio Ready

Access additional music, sports and entertainment content on the go with SiriusXM Radio. (Optional SiriusXM tuner required, sold separately)



Built-in HD Radio Tuner

HD Radio has the best selection of local radio with amazing features and no monthly fees. HD Radio provides CD sound quality from digital FM stations and FM sound quality from digital AM stations. You can even access additional HD multicasting stations that are not available on traditional analog radio.

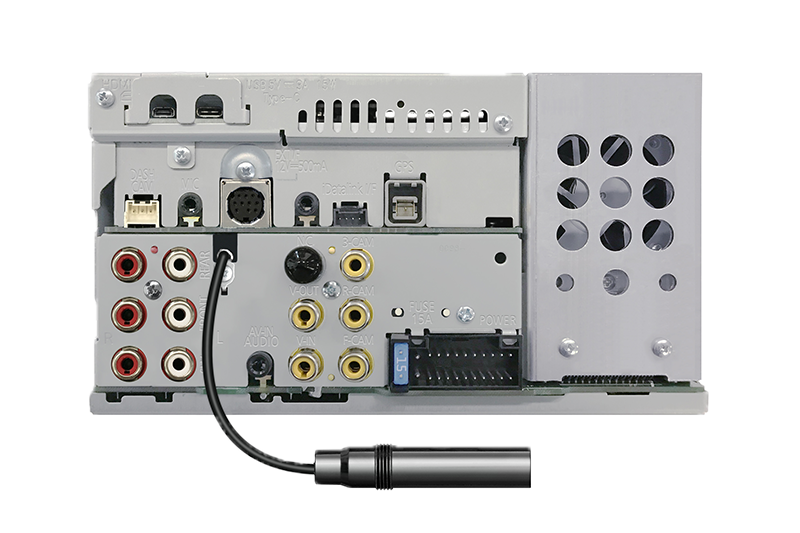

Short Chassis Design

Less than 3.5"(85mm) of depth for more flexible installation

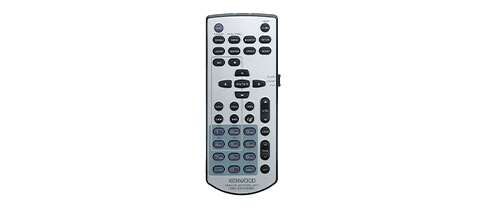

Remote Control (Optional)

This receiver can be operated using the optional remote control KCA-RCDV340.


Monitor Section
Display systemTN LCD panel
Drive systemTFT active matrix system
Number of pixels1,152,000, 800H x 480V x RGB
Effective pixels99.99%
Pixel arrangementRGB striped arrangement
Back lightingLED
USB I/F Section
Connector TypeType-C
USB StandardUSB2.0 High Speed
File SystemFAT 16/32, exFAT, NTFS
Maximum Power Supply CurrentDC5V=3.0A
D/A Converter 24/32Bit
Audio Decoder MP3 / WMA / AAC / WAV / FLAC / Vorbis
Video DecoderMPEG1/2,MPEG4 / WMV / H.264 / MKV
Frequency response 192k Sampling20 - 88,000 Hz
96k Sampling20 - 44,000 Hz
48k Sampling20 - 22,000 Hz
44.1k Sampling20 - 20,000 Hz
Total harmonic distortion 1kHz0.010%
Signal to Noise ratio98.5dB
Dynamic range89dB
Wireless Mirroring Section
ModeSink
Copyright protectionHDCP2.2
Touch ControlUIBC
Wi-Fi
IEEE Standard802.11 a/b/g/n/ac
Frequency RangeDual Band ( 2.4GHz / 5GHz )
ChannelsAuto(1-11ch)
ChannelsAuto(149,153,157,161ch)
Transfer rates (MAX)11a: 54 Mbps / 11b: 11 Mbps / 11g: 54 Mbps / 11n: 300 Mbps / 11ac: 867 Mbps
Bluetooth Section
TechnologyBluetooth Ver5.0
Frequency2.402 - 2.480 GHz
Maximum Communication rangeLine of sight approx.10m(32.8ft)
Audio CodecSBC / AAC
Multi Profile SupportMulti Profile
ProfileHFP (V1.7) (Hands Free Profile), SPP (Serial Port Profile), A2DP (Advanced Audio Distribution Profile), AVRCP (V1.6) (Audio/Video Remote Control Profile), PBAP (Phonebook Access Profile)
HDMI
Input ResolutionVGA (640x480p @59.94Hz/60Hz), 480p (720x480p @59.94Hz/60Hz), 720p(1280x720p @59.94Hz/60Hz)
Input Audio Type32K/44.1K/48K/88.2K/96K/176.2K/192K 16/20/24-bit Linear PCM
DSP Section
Graphics equalizer - BAND13Band
Graphics equalizer - frequency (Hz) (BAND1-13)62.5/100/160/250/400/630/1k/1.6k/2.5k/4k/6.3k/10k/16k
Graphics equalizer - Gain -9/-8/-7/-6/-5/-4/-3/-2/-1/0/1/2/3/4/5/6/7/8/9[dB]
2Way X'Over - HIGH PASS FILTER frequencyThrough/30/40/50/60/70/80/90/100/120/150/180/220/250[Hz]
2Way X'Over - SLOPE-6/-12/-18/-24[dB/Oct.]
2Way X'Over - LOW PASS FILTER frequency30/40/50/60/70/80/90/100/120/150/180/220/250/Through[Hz]
2Way X'Over - SLOPE-6/-12/-18/-24[dB/Oct.]
3Way X'Over - HIGH PASS FILTER frequency250/300/1k/1.6k/2.5k/4k/5k/6.3k/8k/10k/12.5k
3Way X'Over - SLOPE-12/-18/-24[dB/Oct.]
3Way X'Over - Band PASS FILTER frequencyThrough/50/60/70/80/90/100/120/150/180/220/250/300[Hz], 250/300/1k/1.6k/2.5k/4k/5k/6.3k/8k/Through
3Way X'Over - SLOPE-12/-18/-24[dB/Oct.]
3Way X'Over - LOW PASS FILTER frequency30/40/50/60/70/80/90/100/120/150/Through[Hz]
3Way X'Over - SLOPE-12/-18/-24[dB/Oct.]
Position - Front / Rear /Subwoofer Delay0 - 20.01ft (0.03or0.04ft Step)
Position - Gain-8 to 0dB
Position - Subwoofer Level-50 to +10dB
Digital FM
Frequency Range87.9MHz - 107.9MHz
(Frequency step)(200kHz)
Frequency Response20Hz - 20kHz
(±3.0 dB)20Hz - 20kHz
S/N80dB (STEREO)
Digital AM
Frequency Range530kHz - 1700kHz
(Frequency step)(10kHz)
Frequency Response40Hz - 15kHz
(±3.0 dB)40Hz - 15kHz
S/N80dB(STEREO)
FM
Frequency Range87.9MHz - 107.9MHz
(Frequency step)(200kHz)
Usable sensitivity9.3dBf
S/N 30dB0.8μV/75Ω
Quieting sensitivity10.2dBf
DIN S/N 46dB1.13μV / 75Ohms
Frequency response30Hz - 15kHz
(±3.0dB)30Hz - 15kHz
S/N(dB)65dB (MONO)
SelectivityOver 80dB (±400kHz)
Stereo separation45dB (1kHz)
AM
Frequency Range530kHz - 1700kHz
(Frequency step)(10kHz)
Usable sensitivity28dBμ
Video
Color system of external video inputNTSC/PAL
External audio max input level (Mini jacks)2 V / 25 kOhms
Video Input level (RCA jacks)1 Vp-p / 75 Ohms
Video Output level (RCA jacks)1 Vp-p / 75 Ohms
Audio
Maximum Power Output (Front&Rear)50Wx4
Typical Power Output (Front&Rear)Full Bandwidth Power, (at less than 1%THD), 22Wx4
Output frequency band20 - 88,000Hz
Preout level (V)5V / 10kOhms
Preout impedance (Ω)=< 300 Ohms
Speaker Impedance (Ω) 4-8 Ohms
