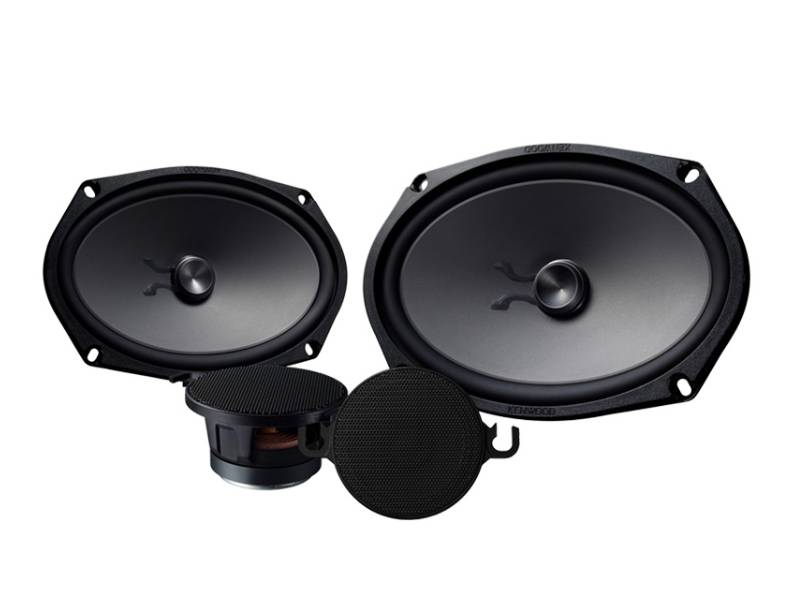

Kenwood Component Speaker System - KFC-XP6902C
Price | $379.00 |
Savings | $51.00 |
Our Price |
$328.00 CAD |
- Shallow 6x9" PP Cone Woofer

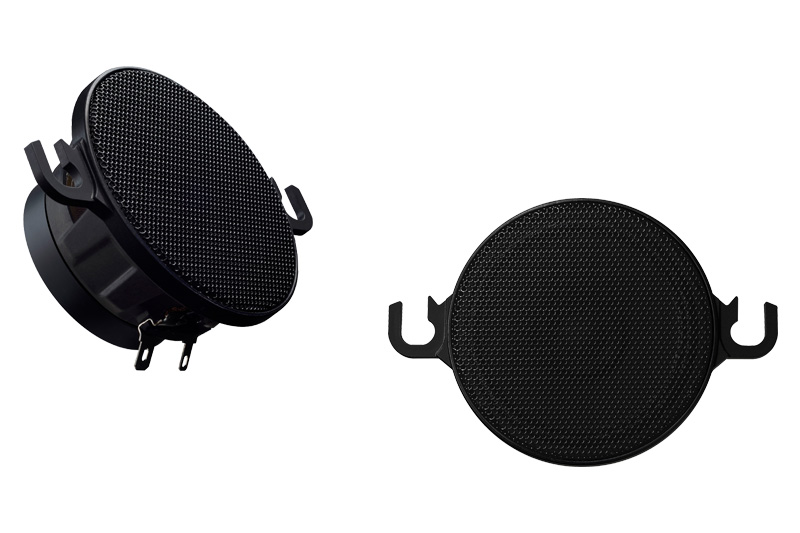

- 2-3/4" Mid-High Speaker
- Custom fit for select Chevrolet, Dodge, & Toyota
- 6x9" Multi-Use Bracket Included
6x9" Vehicle Specific Component Speakers
Introducing the industry’s best solution for a 6x9” door speaker and vehicle specific sized dash speaker replacement – all in one package! By pairing a set of true mid-bass 6x9” drivers with 2-3/4” speakers, solid mid-bass response along with rich mid and high frequency reproduction is delivered. Multi-brackets are included, enabling easy OEM replacement in many Chevrolet, Dodge, Toyota vehicles and more!
Acrylic Carbon Hybrid Cone
Light but rigid, delivers rich midrange and high frequency response.
Multi-Use Basket
Electrical | |
---|---|
Impedance(Ω) | 4Ω |
Peak Input Power(W) | 300W |
RMS Input Power(W)CTA standards | 100W |
Sensitivity (dB at 1m)CTA standards | 84dB |
Frequency Response(Hz)CTA standards | 45-23,000Hz |
Woofer | |
Diaphragm | PP Cone |
Size | 153x229mm , 6x9 inch |
Surround | Rubber |
Basket | Steel |
Magnet | Ferrite , φ90xt15 |
Midrange | |
Diaphragm | PP Cone , +Sub Cone |
Size | 44mm , 2-3/4 inch |
Surround | Cloth |
Basket | Plastic |
Magnet | Ferrite , φ50x18 |
Newtwork | |
Midrange | HPF , -6dB/oct, 850Hz |
Woofer | LPF , -6dB/oct, 850HzBypass Selectable inch |
Dimension | |
Width | 236.4 mm , 9-5/16 |
Height | 164 mm , 6-7/16 |
Top Height | 82.3 mm , 3-1/4 in. |
Cutout Diameter | 217 x 145 mm , 8-9/16 x 5-11/16 in. |
Height from the mouning surface | 12.3 , 43467 |
Mounting Depth | 70 mm , 2-3/4 in. |
Width | 103mm , 4-1/16 in. |
Height | 71.5 mm , 2-13/16 in. |
Top Height | 40 mm , 1-9/16 in. |
Cutout Diameter | φ62 mm , φ2-7/16 in. |
Height from the mouning surface | 6 mm , 1/4 in. |
Mounting Depth | 34 mm , 1-5/16 in. |
Weight | |
Gross Weight | 4.4kg , 155.2 oz |
Weight of Woofer Magnet | 410g , 14.5 oz |
Accessory | |
Accessory | Bracket for Woofer , 2pcs |
Accessory | Spacer for Woofer , 2pcs |
Accessory | In-Line Network , 2pcs |
Accessory | Speaker Cord for Woofer (0.3m) , 2pcs |
Accessory | Tapping Screw(φ4x16mm) for Woofer , 8pcs |
Accessory | Cushion for Bracket/Woofer , 1set |
Accessory | Cushion for Bracket① , 1set |
Accessory | Cushion for Bracket② , 2pcs |
Accessory | Cushion(15mm) for Woofer , 1set |
Accessory | Cushion for 2.75inch Midrange , 1set |
Accessory | Tapping Screw(φ4xL25mm) for Woofer , 8pcs |
