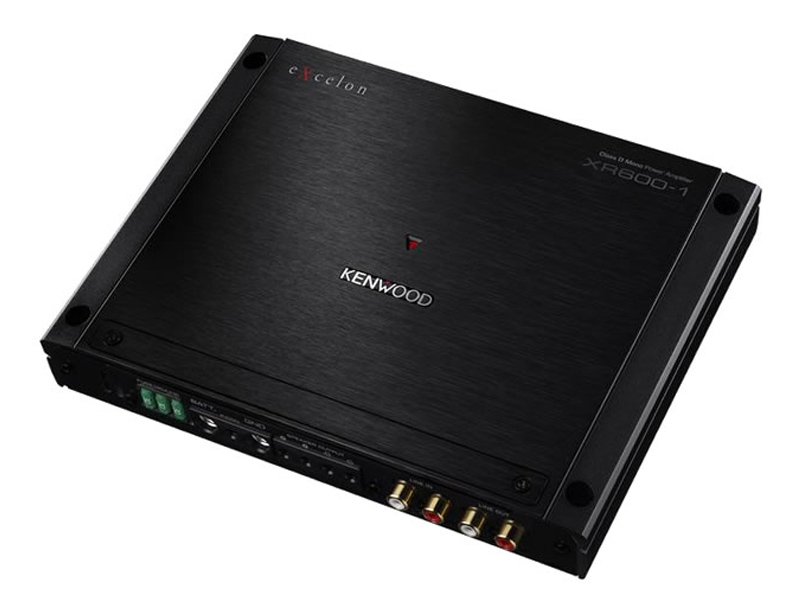

Kenwood Class D Mono Power Amplifier - XR601-1

Authorized Dealer Price Match Guarantee
Price Match Guarantee
The Power Centre offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.
Price$549.00
Savings$51.00
Our Price $498.00 CAD

Or as low as $166.00/month over 3 months. Apply Now


Availability
Call for availability

Literature

Rich and Immersive
High-Resolution Audio
High-Resolution Audio is high-quality sound that exceeds CD standard. High-resolution audio captures and beautifully expresses all the details of your favorite music. Through ultra-high and low frequencies, immerse yourself in a rich and high-quality sonic experience.

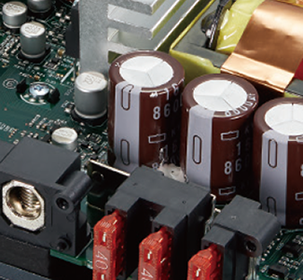

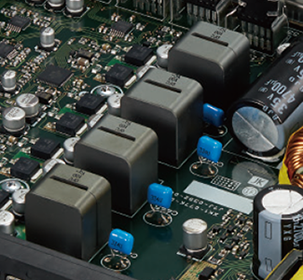

HIGH PERFORMANCE PARTS
Special capacitors and inductors have been carefully selected for the digital amplifier’s LC filter, which is essential for achieving highresolution audio. These high-performance parts reduce noise and distortion and ensure excellent sound quality.

DEEP BASS SOUND
By using a down-firing subwoofer and superior technologies, the audio system generates high-quality sound and powerful bass, while still being compact.

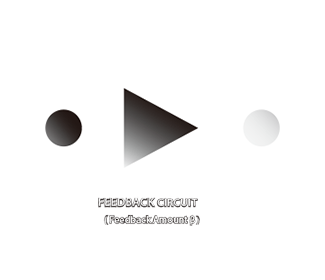

ENHANCED SIGNAL TO NOISE RATIO
The feedback value of the current XR Amplifier has been optimized to improve the S/N ratio. As a result, the noise level has been reduced by up to 40%.

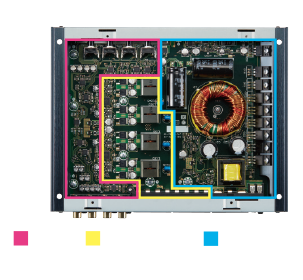

SPECIALIZED CIRCUIT DESIGN
The noise reduction system employs a special layout that separates the analog circuit, digital amplifier circuit and power supply circuit. This keeps interference between the circuits to a minimum, decreasing noise and thereby achieving high performance and sound quality.

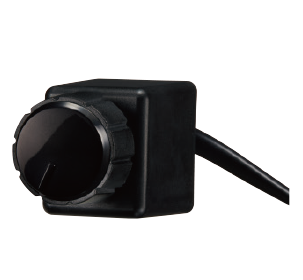

WIRED REMOTE CONTROL
The wired remote control allows you to adjust the volume of a subwoofer when connected to the head unit.

Features

  • Operating Voltage: 14.4V (11 - 16 V allowable)
  • Current Consumption: 46 A
  • Dimensions (W x H x D): 220 x 35 x 169 mm (8-11/16 x 1-3/8 x 6-5/8)
  • Weight: 1.6 kg (3.5 lbs)
  • Warranty: 2-Year
Specifications
Dimensions (W x H x D) 220 x 35 x 169 mm (8-11/16 x 1-3/8 x 6-5/8)
High Pass Filter Frequency -
Low Pass Filter Frequency
50 Hz - 200 Hz (variable) Low-Pass Filter Frequency
(-24 dB/oct.) -
Specifications
Signal to Noise Ratio 100 dB
Input Impedance 10 kΩ
Input Sensitivity 0.2 V - 5.0 V (MIN-MAX)
Frequency Response20-200Hz(±1dB)
Rated Power Output
600 W x 1 (2Ω) (100 Hz, 1.0% THD)
400 W x 1 (4Ω) (20 Hz - 200 Hz, 1.0% THD)
14.4 V -
Specification
Max Power Output -
CEA-2006 Standard
78 dBASignal to Noise Ratio (Reference: 1 Watt into 4 ohms)
400 W x 1 RMS Watts per channel @ 4 ohms, 1% THD+N
