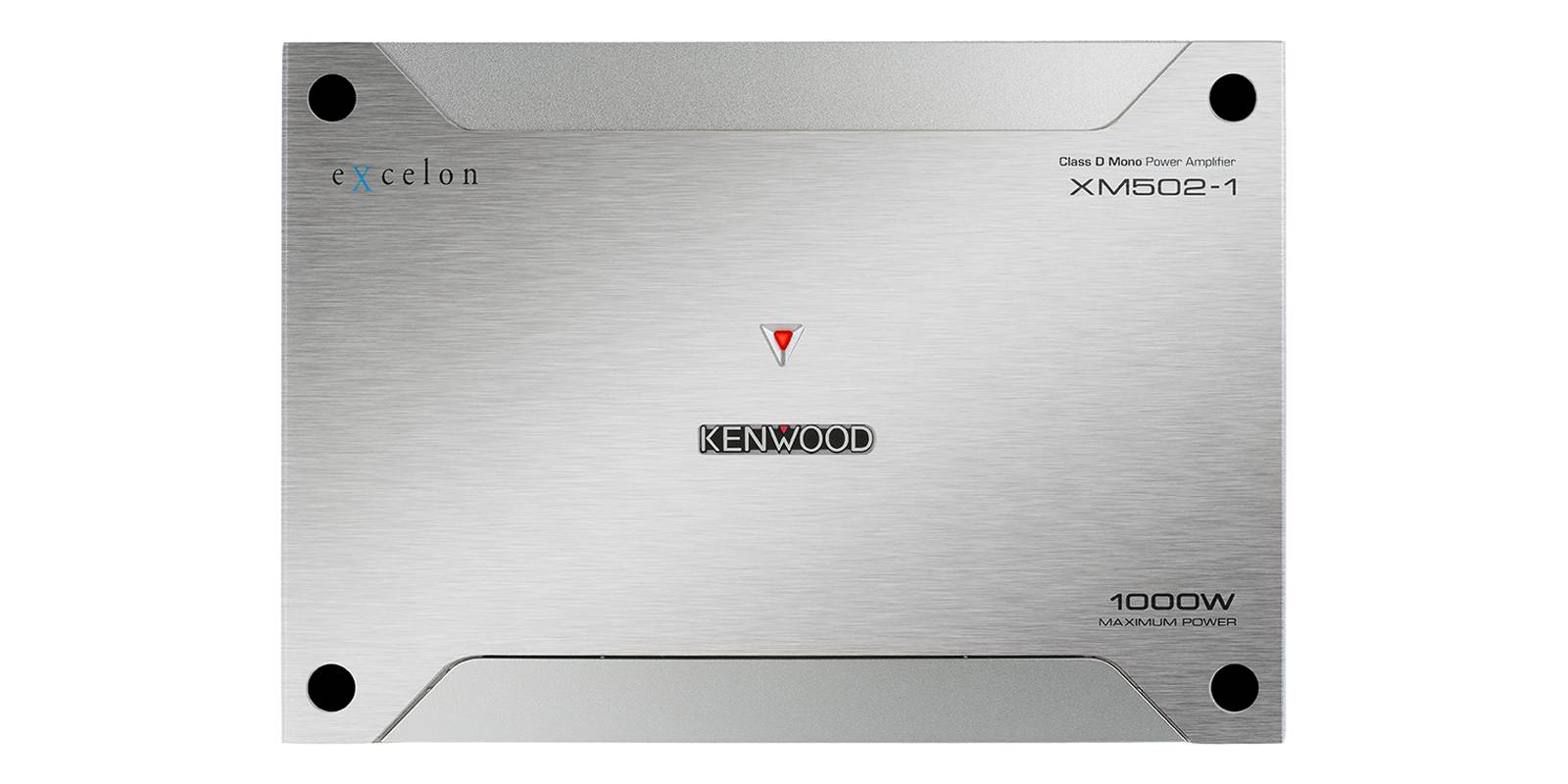

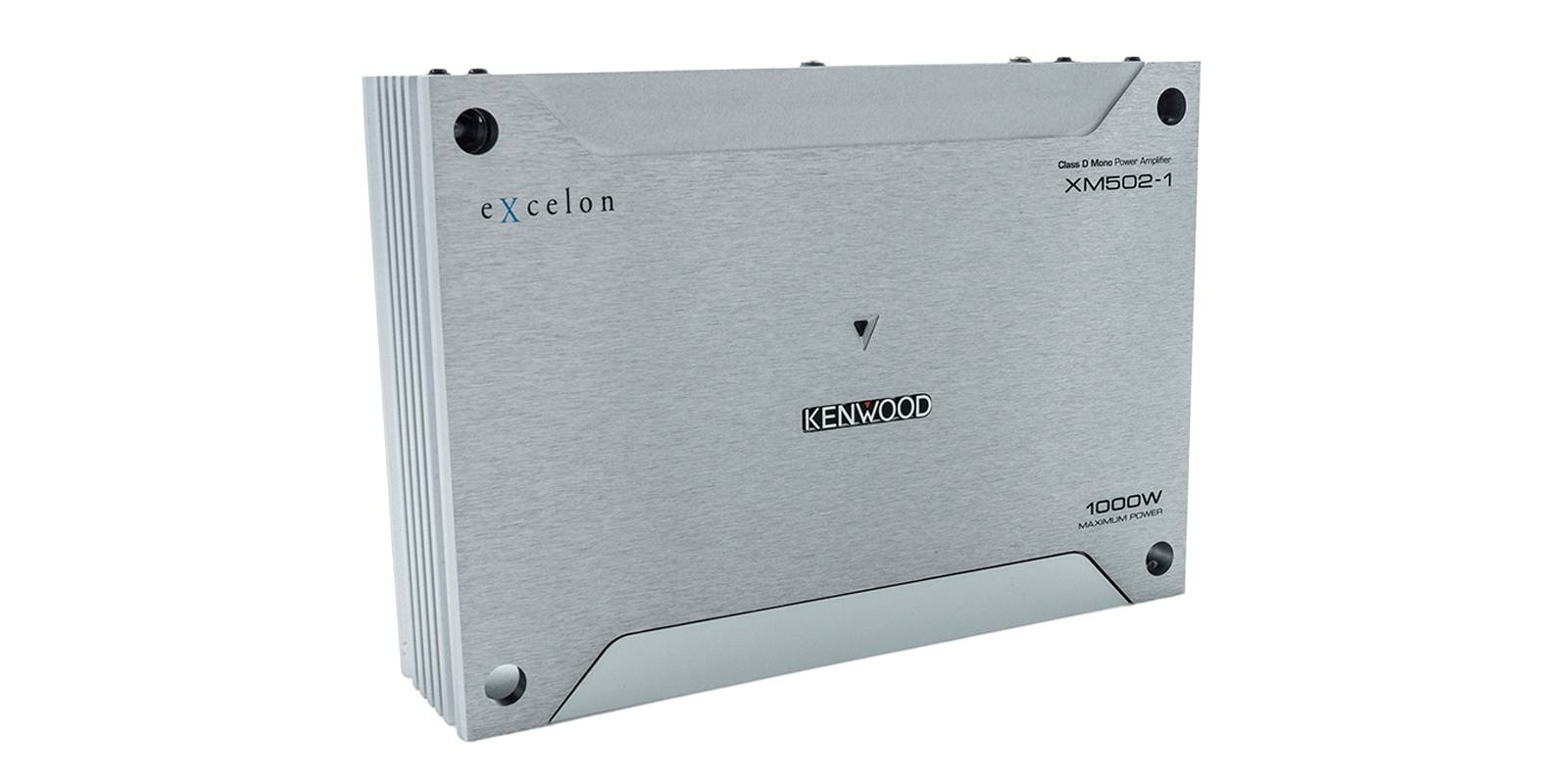

Kenwood Class D Mono Power Amplifier - XM502-1

Authorized Dealer Price Match Guarantee
Price Match Guarantee
The Power Centre offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.
Price$449.00
Savings$51.00
Our Price $398.00 CAD

Availability
Call for availability

Literature
  • RMS 300W (4Ω)
  • RMS 500W (2Ω)
  • Variable Low Pass Filter
  • Bass Boost
  • Conformal Coating
  • Protective Terminal Cover
  • Size (inch) (W) 8-3/8" x (H) 2-1/16" x (D) 5-7/8"
  • Optional Wired Remote Ready

Product Overview

Output Coil with Magnetic Shield

Prevents magnetic flux from radiating from the subwoofer's coil, resulting in reduced noise and enhanced sound quality.



High Quality Capacitors

PMLCAP's (Polymer Multi-Layer Capacitors) are utilized in the LC filter circuits to decrease distortion, ensuring clear detail for a truer to life sound.



Infrasonic Filter (ISF)

When Infrasonic Filter Switch is turned on,the amplifier cuts off the low frequencies below 25Hz, which effects to make the amplifier’s power supply and output devices more efficient with clear bass sound.



Conformal Coating

Improved moisture resistance of the circuit boards to prevent corrosion.

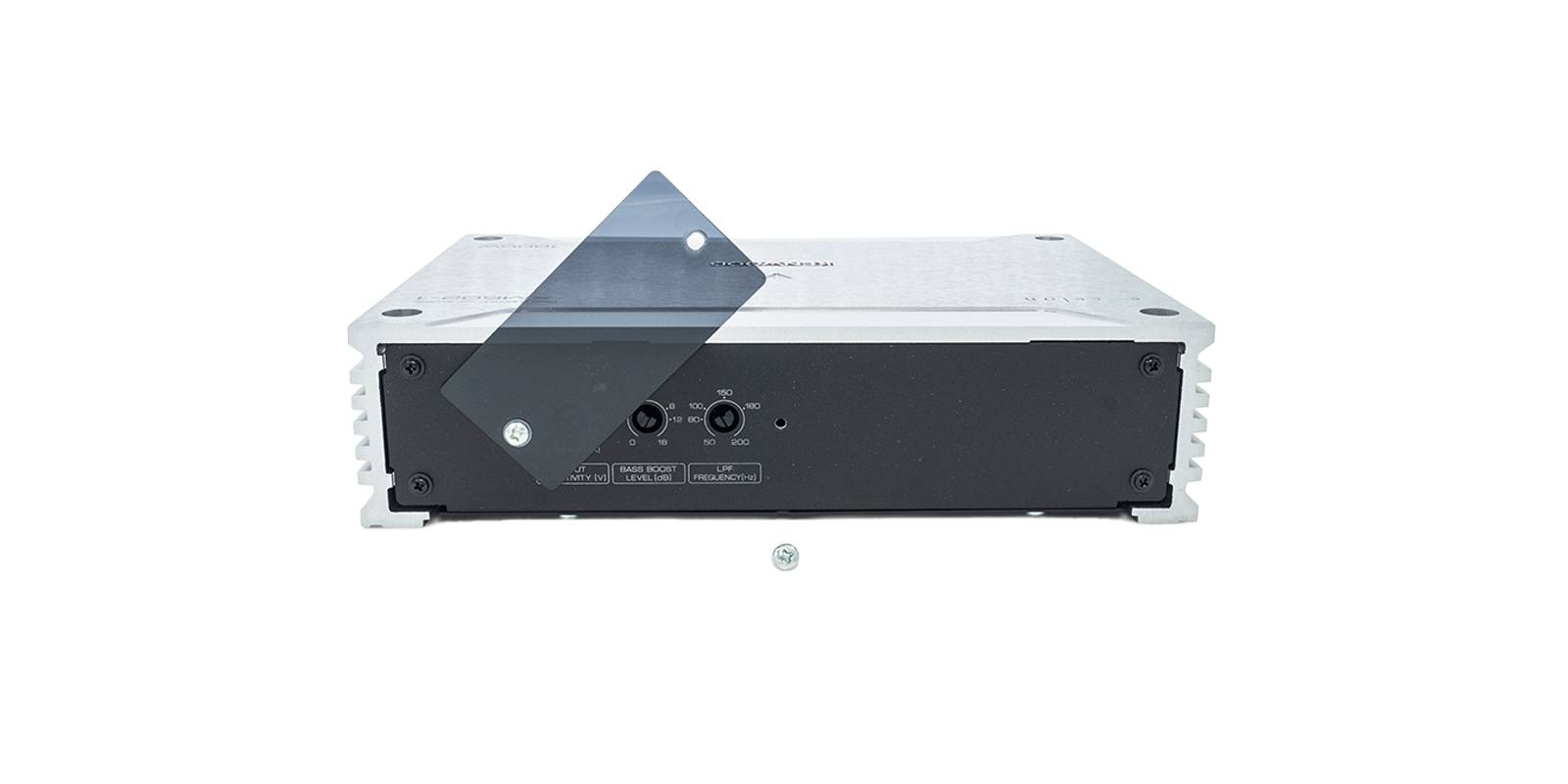

Protective Caps and Cover

All control holes,RCA, wired remote and Speaker Level input terminals are coverd with caps and plastic covers to avoid from moisture and dust.



Sliding Terminal Cover

Detachable sliding terminal cover offers a sleek design and easier installation.

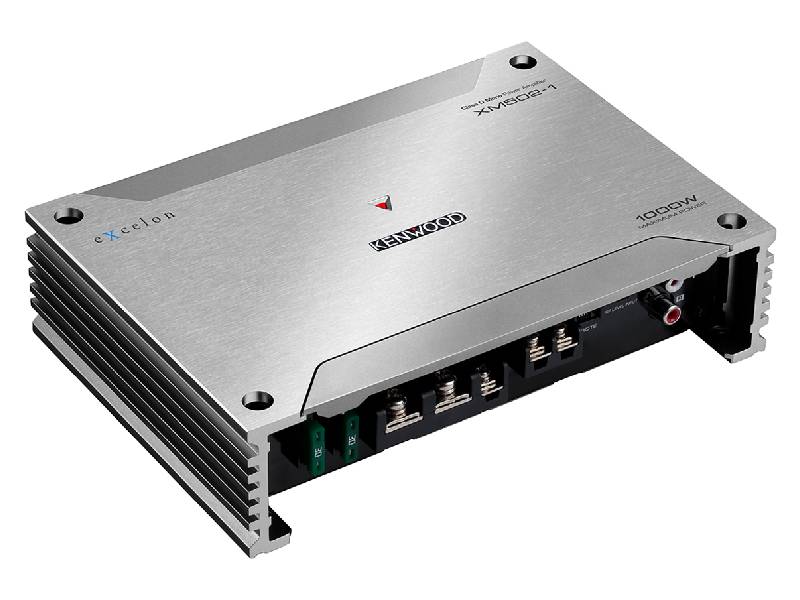

One-side Connection

All terminals and connections are on one side for easier installation and a cleaner look.


  • ①Fuse (30A x2)
  • ②Battery terminal (POWER IN BATT.)
  • ③Power control terminal
  • ④Ground terminal (GND)
  • ⑤Speaker output terminals
  • ⑥Remote terminal
  • ⑦Speaker level input terminal
  • ⑧Line in terminal


Variable Gain Circuit

Improved Signal to Noise Ratio

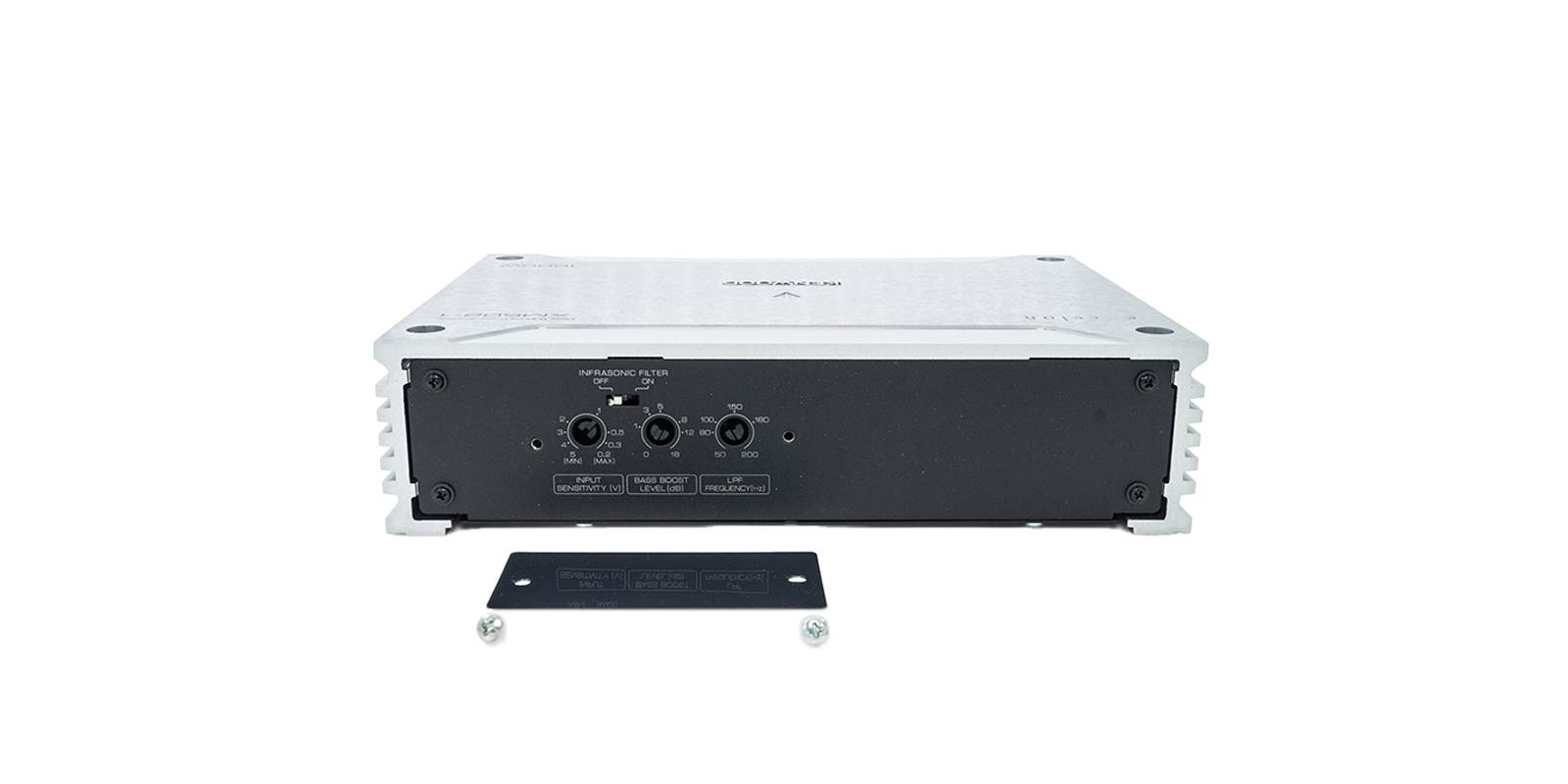

  • ⑨Input sensitivity control(A.ch/B.ch/Sub)
  • ⑩Infrasonic filter switch
  • ⑪Bass Boost Level control
  • ⑫LPF frequency control


Speaker Level Input Harness

Speaker Level Input Harness is included to connect to speaker wires from factory installed receivers.



Optional Wired Level Control Ready

The optional KCA-RC01A wired remote level control allows you to easily adjust the subwoofer volume.

*Control unit does not support conformal coarting or water-proof.



Key Features


  • CTA-2006 Compliant
  • 2 Ohms Load Capability
  • One Sided Connection
  • Speaker Level Input with Signal Sensing Turn-on
  • Signal Sensing Turn-On
  • Remote Level Control Ready ( Optional KCA-RC01A)
  • Terminal Cover
  • Power MOS-FET Switching Power Supply
  • Extruded Aluminum Heat Sink Design
General
Dimensions(WxHxD)(W)8-3/8” x (H)2-1/16” x (D)5-7/8”
Weight3.3 lbs ( 1.5kg)
Dimensions(WxHxD)(W) 213mm x (H) 53mm x (D) 149mm
CTA-2006 Primary Ratings
Power Output300 Watts RMS x 1 at 4 Ohms and ≤1%THD+N
Signal-to-Noise Ratio85dBA (Reference: 1Watt into 4Ohms)
Maximum Power Output
MAX POWER1000W
Rated Power Output at 14.4V
A/B (4 Ohms)-
A/B (2 Ohms)-
SUB (4 Ohms)300Watts RMS x 1 (4 Ohms, 20-200Hz, ≤0.5% THD)
SUB (2 Ohms)500Watts RMS x 1 (2 Ohms, 100Hz, ≤0.5% THD)
A/B (Bridged 4Ohms)-
Specifications
Signal to Noise Ratio100dB (Reference: Rated Power into 4Ohms at 14.4V)
Frequency Response20Hz-200Hz (+0dB, -3dB)
Frequency Response-
Input Impedance10k ohm
Speaker Impedance4Ω (2Ω to 8Ω allowable)
Bridged Connection-
Audio Section
Low-Pass Filter50Hz-200Hz, -24dB/oct
High-Pass Filter-
Bass Boost40Hz, 0dB - +18dB
Infrasonic Filter25Hz, -24dB
RCA Input Sensitivity0.2[V] - 5.0 [V]
Speaker Level Input Sensitivity4.0[V] - 12.0 [V]
Terminals
Battery & GroundM6 Screw Type Terminal Block
Speaker OutputM4 Screw Type Terminal Block
General
Operating Voltage14.4V(11-16V allowable)
Current Consumption25 [A]
