- High-Res Audio Compliant
- CTA-2006 Compliant
- 2 Ohms Load Capability
- One Sided Connection
- Speaker Level Input with Signal Sensing Turn-on
- Max Power 1600W
- Size (inch) (W) 9-3/4" x (H) 2-1/16" x (D) 6-5/8"

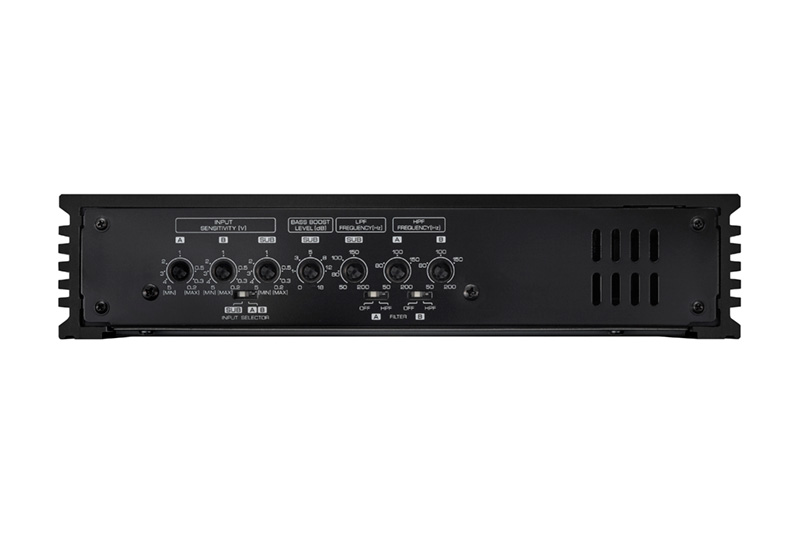

- Variable High & Low Pass Filter
- Bass Boost
- Optional Wired Remote Ready
Rich and Immersive High-Resolution Audio
High-Resolution Audio is high-quality sound that exceeds CD standard. High-resolution audio captures and beautifully expresses all the details of your favorite music. Through ultra-high and low frequencies, immerse yourself in a rich and high-quality sonic experience.

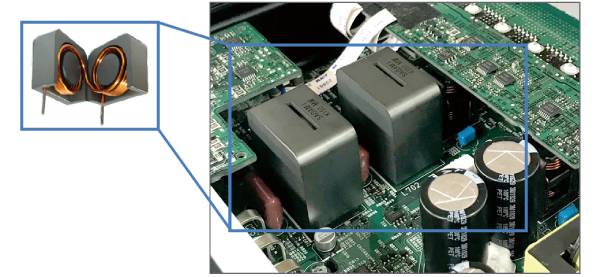

Output Coil with Magnetic Shield
Prevents magnetic flux from radiating from the subwoofer's coil, resulting in reduced noise and enhanced sound quality.

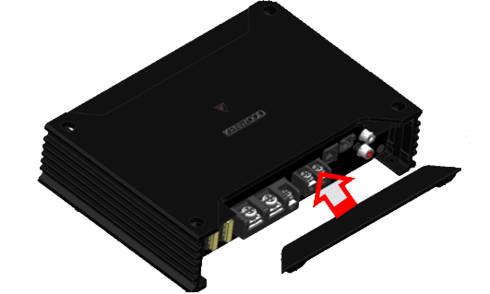

Sliding Terminal Cover
Detachable sliding terminal cover offers a sleek design and easier installation.

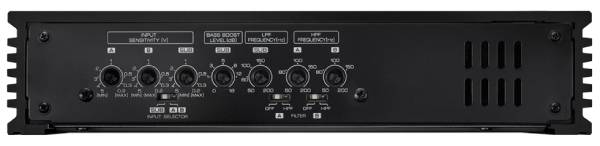

Variable Gain CircuitImproved Signal to Noise Ratio

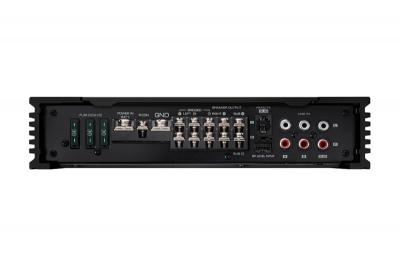

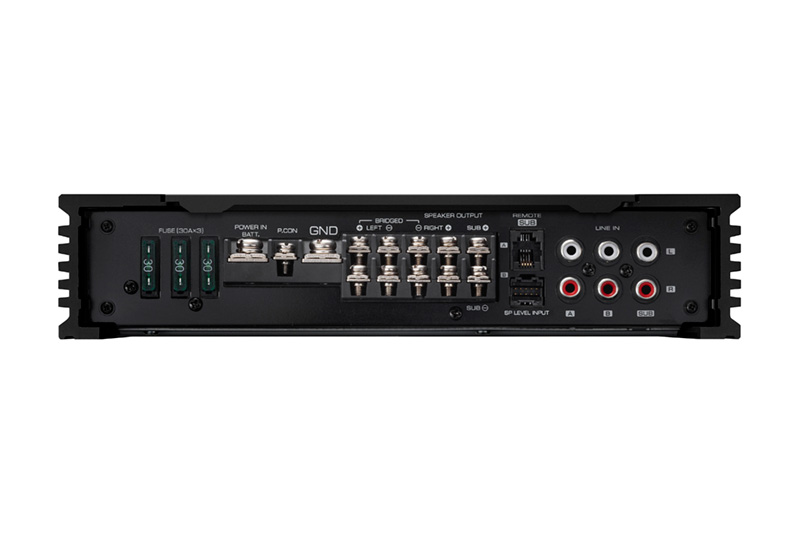

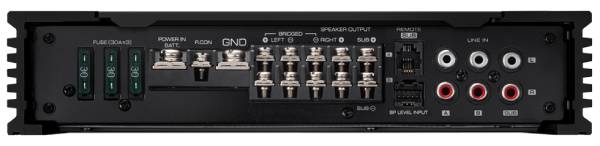

All terminals and connections are on one side for easier installation and a cleaner look.

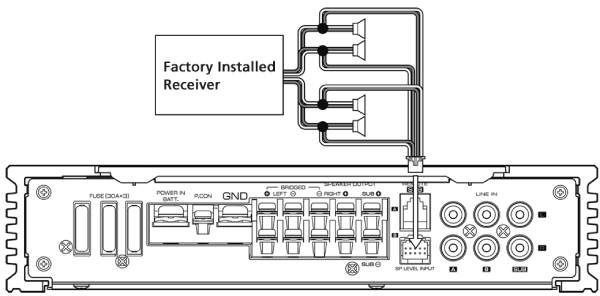

Speaker Level Input Harness
Speaker Level Input Harness is included to connect to speaker wires from factory installed receivers.
Optional Wired Level Control Ready

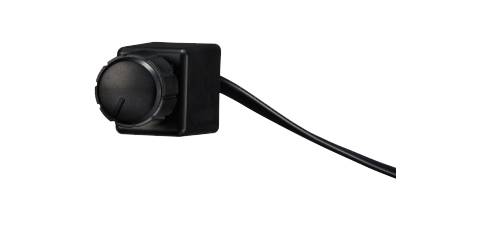

The optional KCA-RC01A wired remote level control allows you to easily adjust the subwoofer volume.
|CTA-2006 Primary Ratings|
|Power Output||50 Watts RMS x 4 + 300 Watts RMS x 1 at 4 Ohms and ≤1%THD+N|
|Signal-to-Noise Ratio||80dBA (Reference: 1Watt into 4Ohms)|
|Maximum Power Output|
|Rated Power Output at 14.4V|
|A/B (4 Ohms)||50Watts RMS x 4 (4 Ohms, 20-20kHz, ≤1.0% THD)|
|A/B (2 Ohms)||75Watts RMS x 4 (2 Ohms, 1kHz, ≤1.0% THD)|
|SUB (4 Ohms)||300Watts RMS x 1 (4 Ohms, 20-200Hz, ≤0.5% THD)|
|SUB (2 Ohms)||500Watts RMS x 1 (2 Ohms, 100Hz, ≤0.5% THD)|
|A/B (Bridged 4Ohms)||150Watts RMS x 2 (Bridged 4 Ohms, 1kHz, ≤1.0% THD)|
|Signal to Noise Ratio||100dB (Reference: Rated Power into 4Ohms at 14.4V)|
|Frequency Response||20Hz-50kHz (+0dB, -3dB) A/B|
|Frequency Response||20Hz-200Hz (+0dB, -3dB) SUB|
|Input Impedance||10k ohm|
|Speaker Impedance||4Ω (2Ω to 8Ω allowable)|
|Bridged Connection||4Ω to 8Ω allowable|
|Low-Pass Filter||50Hz-200Hz, -24dB/oct (SUB)|
|High-Pass Filter||50Hz-200Hz, -12dB/oct (A/B)|
|Bass Boost||40Hz, 0dB - +18dB (SUB)|
|RCA Input Sensitivity||0.2[V] - 5.0 [V]|
|Speaker Level Input Sensitivity||4.0[V] - 12.0 [V]|
|Battery & Ground||M6 Screw Type Terminal Block|
|Speaker Output||M4 Screw Type Terminal Block|
|Dimensions(WxHxD)||(W)9-3/4" x (H) 2-1/16” x (D)5-7/8”|
|Dimensions(WxHxD)||(W) 248cm x (H) 53cm x (D) 169cm|
|Weight||4.6 lbs ( 2.1 kg)|
|Operating Voltage||14.4V（11-16V allowable）|
