Kenwood Class D 4 Channel Power Amplifier - XR401-4
Price | $549.00 |
Savings | $51.00 |
Our Price |
$498.00 CAD |
Or as low as $166.00/month over 3 months. Apply Now
Rich and Immersive
High-Resolution Audio
High-Resolution Audio is high-quality sound that exceeds CD standard. High-resolution audio captures and beautifully expresses all the details of your favorite music. Through ultra-high and low frequencies, immerse yourself in a rich and high-quality sonic experience.

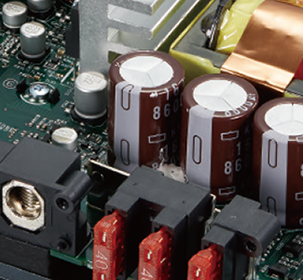

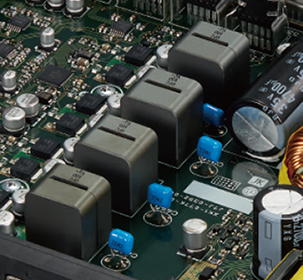

HIGH PERFORMANCE PARTS
Special capacitors and inductors have been carefully selected for the digital amplifier’s LC filter, which is essential for achieving highresolution audio. These high-performance parts reduce noise and distortion and ensure excellent sound quality.
DEEP BASS SOUND
By using a down-firing subwoofer and superior technologies, the audio system generates high-quality sound and powerful bass, while still being compact.

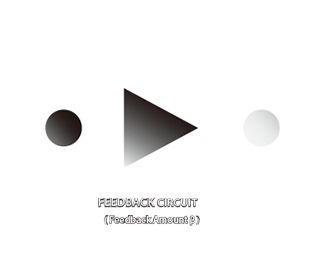

ENHANCED SIGNAL TO NOISE RATIO
The feedback value of the current XR Amplifier has been optimized to improve the S/N ratio. As a result, the noise level has been reduced by up to 40%.

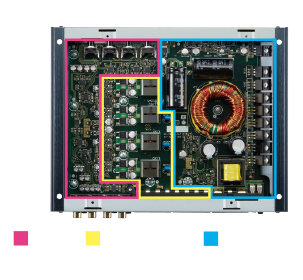

SPECIALIZED CIRCUIT DESIGN
The noise reduction system employs a special layout that separates the analog circuit, digital amplifier circuit and power supply circuit. This keeps interference between the circuits to a minimum, decreasing noise and thereby achieving high performance and sound quality.

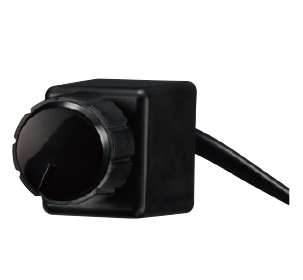

WIRED REMOTE CONTROL
The wired remote control allows you to adjust the volume of a subwoofer when connected to the head unit.
Features
- Operating Voltage: 14.4V (11 - 16 V allowable)
- Current Consumption: 37 A
- Dimensions (W x H x D): 220 x 35 x 169 mm (8-11/16 x 1-3/8 x 6-5/8)
- Weight: 1.5 kg (3.3 lbs)
- Warranty: 2-Year
CEA-2006 Standard | |
---|---|
75 W x 4 | RMS Watts per channel @ 4 ohms, 1% THD+N |
Specification | |
Dimensions (W x H x D) | 220 x 35 x 169 mm (8-11/16 x 1-3/8 x 6-5/8) |
High Pass Filter Frequency | |
2.5 kHz - 10 kHz (variable) | High-Range |
50 Hz - 200 Hz (variable) | Low-Range |
Low Pass Filter Frequency | |
50 Hz - 200 Hz (variable) | Low-Range |
(-12 dB/oct.) | - |
Specifications | |
Signal to Noise Ratio | 100 dB |
Input Impedance | 10 kΩ |
Input Sensitivity | 0.2 V - 5.0 V (MIN-MAX) |
Frequency Response | 20-20kHz(±1dB) |
Rated Power Output | |
200 W x 2 | Bridged (4Ω) (1 kHz, 1.0% THD) |
100 W x 4 | (2Ω) (1 kHz, 1.0% THD) |
75 W x 4 | (4Ω) (20 Hz - 20 kHz, 1.0% THD) |
14.4 V | - |
Specification | |
Max Power Output | - |
CEA-2006 Standard | |
76 dBA | Signal to Noise Ratio (Reference: 1 Watt into 4 ohms) |
