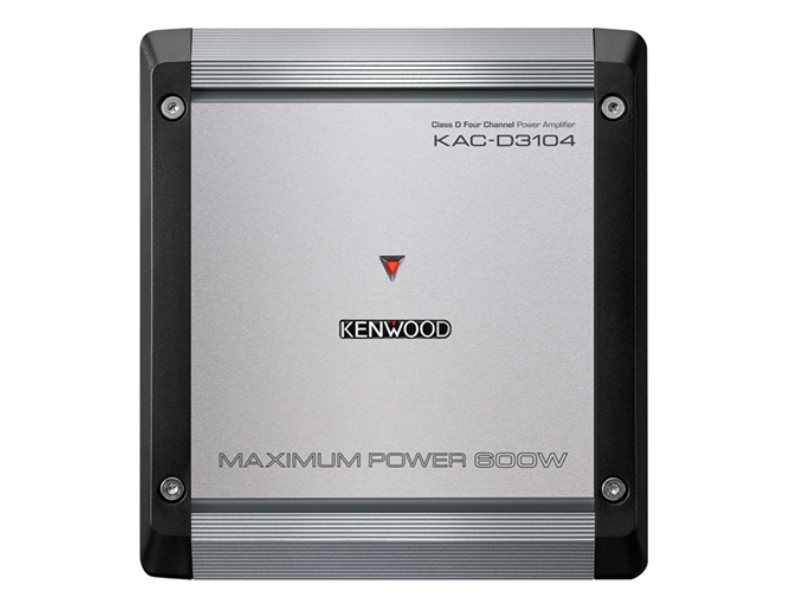

Kenwood Class D 4-Channel Power Amplifier - KACD3104
Authorized Dealer Price Match Guarantee
Price Match Guarantee
The Power Centre offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.
Our Price $279.00 CAD

Or as low as $23.25/month over 12 months. Apply Now


Availability
Call for availability

  • Max Power 600W
  • Size (inch) (W) 6-11/16" x (H) 2-3/16" x (D) 7-3/8"
  • Variable High & Low Pass Filter
  • Bass Boost

D Series Amplifiers provide a powerful solution in a compact design, ideal for upgrading your car audio system.

Expanded Frequency Response

Supporting Hi-Res Audio, KAC-D3104 is ideal for high resolution audio playback as it features a frequency response that extends to 50kHz.

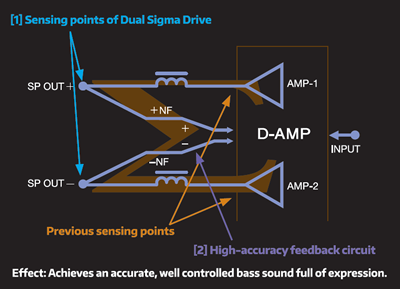

Dual Sigma Drive

This advanced negative feedback circuit improves damping factor and increases accuracy and sound quality. When a signal is passed to a subwoofer, like a 50Hz note, the speaker will move and create the note. However, because the speaker has mass and a suspension, it won't stop moving once it's in motion. This extra movement (sound) creates a type of distortion that's not part of the original signal. The negative feedback circuit senses this unwanted movement and sends out an opposite pulse to stop the speaker like an electronic brake.

Small Size Big Power

The KAC-D3104 is small in size but with its tremendous sound output, it is extremely versatile. It can be installed in vehicles where space is limited and is perfect for vehicle owners who don't want to sacrifice cargo room or who prefer hidden installations.

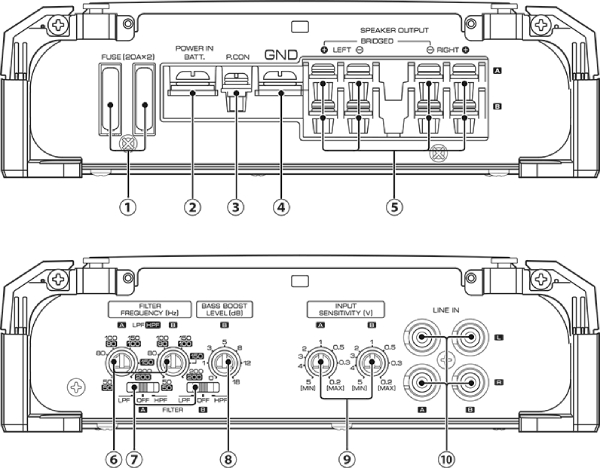

  1. Fuse (20A x 2)
  2. Battery Terminal (Power IN BATT.)
  3. Power Control Terminal (P.CON)
  4. Ground Terminal (GND)
  5. Speaker Output Terminals (A.ch / B.ch)
  6. Filter Frequency Control (A.ch / B.ch)
  7. Filter Switch (A.ch / B.ch)
  • HPF(High-Pass Filter ) Position
  • Off Position
  • LPF (Low-Pass Filter) Position

        8.Bass Boost Level Control (B.ch)

        9.Input Sensitivity Control (A.ch / B.ch)

       10.Line In Terminal (A.ch / B.ch)

General
Operating Voltage14.4V(11-16V allowable)
Dimensions(WxHxD)6-11/16 x 2-3/16 x 7-3/8 [inch]
Terminals
Speaker OutputM4 Screw Type Terminal Block
Battery & GroundM6 Screw Type Terminal Block
Audio Section
Speaker Level Input Sensitivity4.0[V] - 12.0 [V]
RCA Input Sensitivity0.2[V] - 5.0 [V]
Bass Boost40Hz, 0dB - +18dB (Bch)
High-Pass Filter50Hz-200Hz, -12dB/oct (A/B)
Low-Pass Filter50Hz-200Hz, -12dB/oct (A/B)
Specifications
Bridged Connection4Ω to 8Ω allowable
Speaker Impedance4Ω (2Ω to 8Ω allowable)
Input Impedance10k ohm
Frequency Response20Hz-50kHz (+0dB, -3dB)
Signal to Noise Ratio100dB (Reference: Rated Power into 4Ohms at 14.4V)
Rated Power Output at 14.4V
A/B (Bridged 4Ohms)150Watts RMS x 2 (Bridged 4 Ohms, 1kHz, ≤1.0% THD)
A/B (2 Ohms)75Watts RMS x 4 (2 Ohms, 1kHz, ≤1.0% THD)
A/B (4 Ohms)50Watts RMS x 4 (4 Ohms, 20-20kHz, ≤1.0% THD)
Maximum Power Output
MAX POWER600W
CTA-2006 Primary Ratings
Signal-to-Noise Ratio80dBA (Reference: 1Watt into 4Ohms)
Power Output50 Watts RMS x 4 at 4 Ohms and ≤1%THD+N
General
Current Consumption25[A]
Key FeaturesCTA-2006 Compliant 2 Ohms Load Capability Speaker Level Input with Signal Sensing Turn-on Power MOS-FET Switching Power Supply Extruded Aluminum Heat Sink Design
