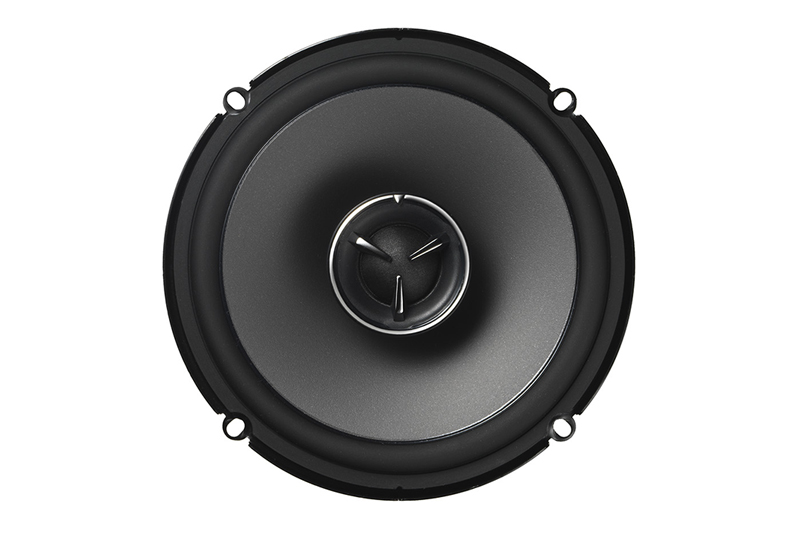

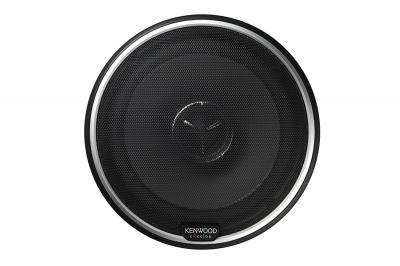

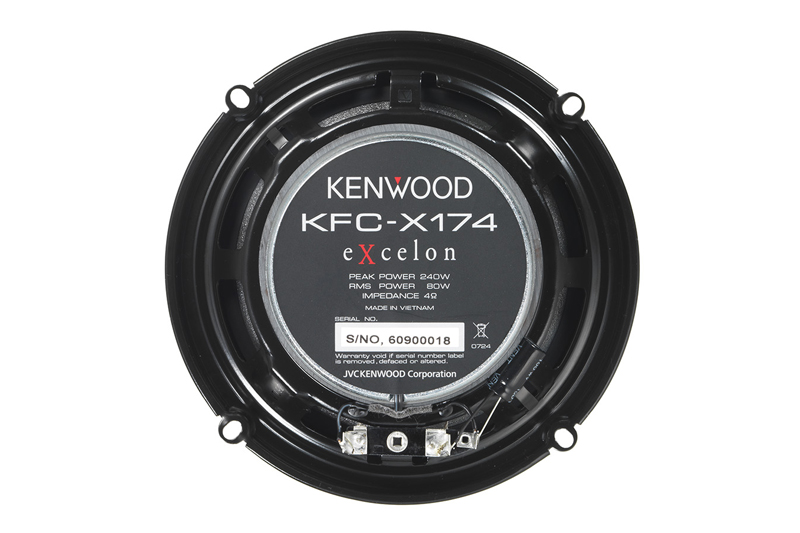

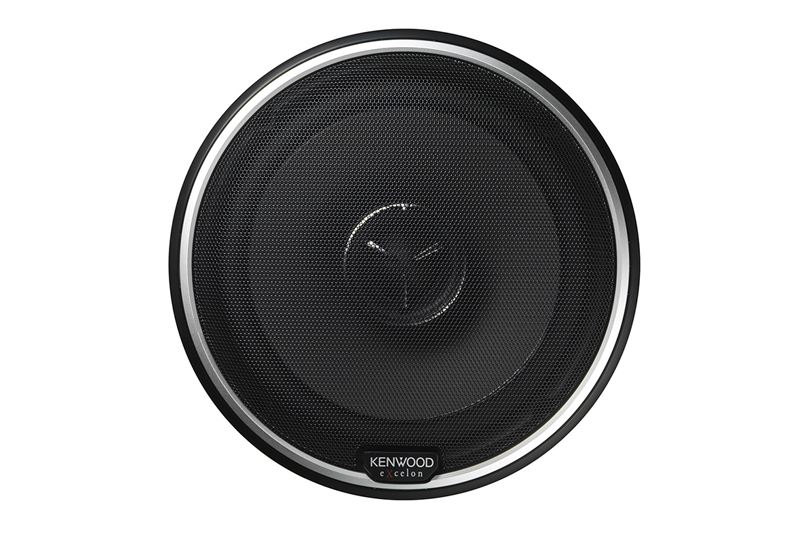

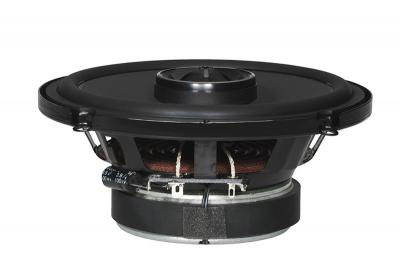

Kenwood 6.5 Inch 2-way 2 Speaker - KFC-X174
Price | $219.00 |
Savings | $51.00 |
Our Price |
$168.00 CAD |
General Features
- Peak Power : 240W
- RMS Power : 80W
- Sensitivity : 88dB/ W at 1 m
- Frequency Response : 69Hz 21,000Hz
Woofer
- Woofer Size: 6-1/2 in (165mm)
- Woofer Diaphragm: Injection PP cone
Tweeter
- Tweeter Size: 1 in (25mm)
- Tweeter Diaphragm: Soft Dome
Dimensions (without grill)
- Width: 6-1/14 in (158mm)
- Height: 6-1/4 in (158mm)
- Depth: 2-15/16 in (75mm)
- Mounting Depth: 2-3/16 in (56mm)
Dimension | |
---|---|
Tweeter Height | 19 mm , 3/4 inch |
Specification | |
Model Name | KFC-X174 |
System | 2way-2speaker |
Power Handling | |
Peak Input Power | 240W |
Maximum Input Power | 100W |
Rated Power | 50W |
RMS Power | 80Watts RMS |
Impedance | 4Ω |
Sensitivity | 88dB/ W at 1 m |
Frequency Response | 69 Hz~21,000 Hz |
Woofer | |
Diaphragm | P.P. Cone , Gray |
Size | Oversized 165 mm , 6-1/2 inch |
Surround | Rubber |
Basket | Steel |
Magnet | Ferrite , φ90 x t15 |
Size | |
Size | 25 mm , 1 inch |
Magnet | |
Magnet | Nd , Up to Engineer |
Dimension | |
Width | 180.0 mm , 7-1/16 inch |
Height | 180.0 mm , 7-1/16 inch |
Depth | 84.2 mm , 3-5/16 inch |
Width | 158.0 mm , 6-1/4 inch |
Height | 158.0 mm , 6-1/4 inch |
Depth | 75 mm , 2-15/16 inch |
Cut-out Diameter | 127.5 mm , 5 inch |
Mounting Depth | 56.0 mm , 2-3/16 inch |
Accessory | |
Grille Holder | ○ |
Punching Net | ○ |
Tweeter | with Woofer Frame , -6dB/oct |
Binding Head Tapping Screw | φ4 x 25 mm , 8 pcs |
Binding Head Tapping Screw | φ4 x 8 mm(TP Head) , 8 pcs |
Speed Nut | φ4 , 8 pcs |
