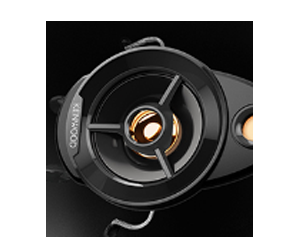

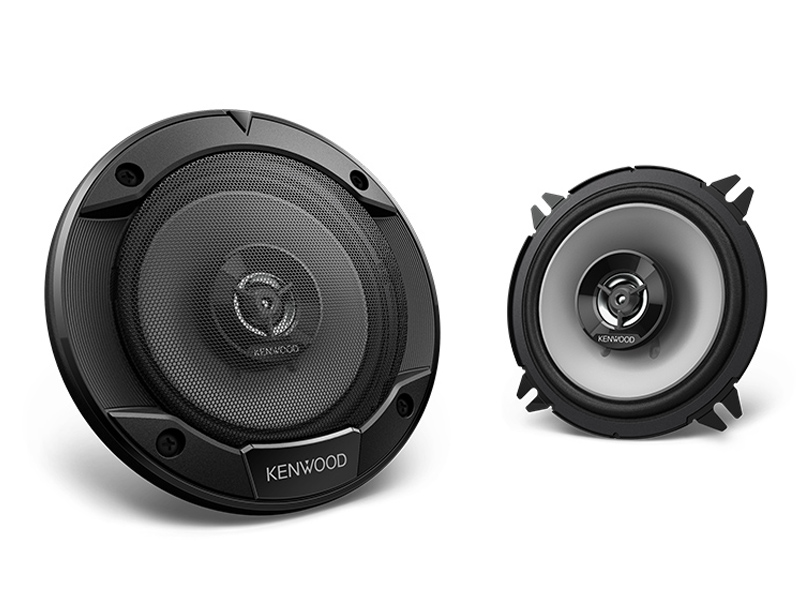

Kenwood 5.25" Coaxial Speaker - KFC-1366S
Our Price | $99.00 CAD |
Sound Field Enhancer
To improve sound quality
Enlarged magnet circuit
To realize clear sound
Only 5/16"of mounting height
To fit for wider car selection
Peak Input Power
250W
Rated Input Power
30W Impedance 4 ohms
Woofer Features
5-1/4inch PP Cone
Tweeter Features
1inch Balanced Dome Tweeter
Specifications
Sensitivity: 91 dB / W / m
Frequency Response: 40 Hz - 22k Hz
Cutout Diameter: 4-7/16inch
Mounting Depth: 1-11/16inch
Gross Weight: 2.1lbs
Weight of Magnet (Woofer): 0.2lbs
Specification | |
---|---|
Carton Box | 4 Color L 312.0mm W 180.0mm D 86.0mm |
ACCESSORY | Grille *2 |
CROSSOVER FREQUENCY | - |
Impedance | 4ohms |
FREQUENCY RESPONSE | 40Hz- , 22Hz |
SENSITIVITY | 91db / W at 1m |
Power Handling | |
Rated Power | 30W |
Peak Power | 250W |
Weight | |
Weight of Magnet | 102g , 0.4oz |
Gross Weight | 970g , 2.1lbs |
without Grille (pc.) | 350g , 0.8lbs |
with Grille (pc.) | 410g , 0.9lbs |
Woofer (Unit) | |
Mounting Depth | 43.5mm , 1-11/16in |
Depth (w/o_Gr) | 50.8mm , 2in |
Cutout Diameter | 112.0mm , 4-7/16in |
Depth (w_Gr) | 66.5mm , 2-5/8in |
Height (w/o_Gr) | 130.0mm , 5-1/4in |
Height (w_Gr) | 157.0mm , 6-3/16in |
Width (w/o_Gr) | 130.0mm , 5-1/4in |
Width (w_Gr) | 157.0mm , 6-3/16in |
Tweeter | |
Diaphragm | PEI Balanced Dome |
Size | 25mm , 1in |
Woofer | |
Magnet | Ferrite , φ60*t10 |
Basket | Steel : Black |
Surround | Cloth |
Diaphragm | PP Cone |
Size | 130mm , 5.25in |
