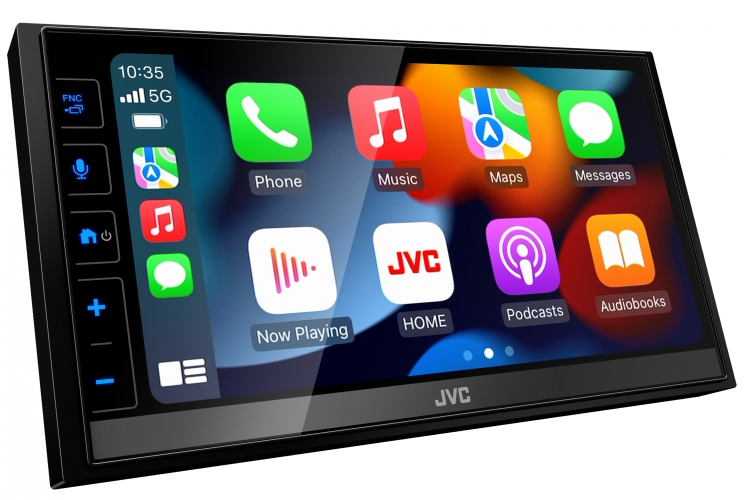

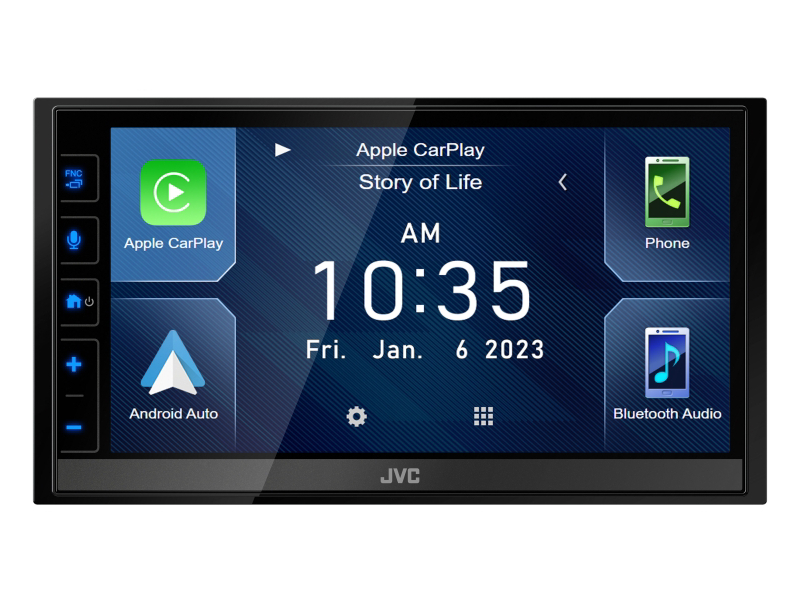

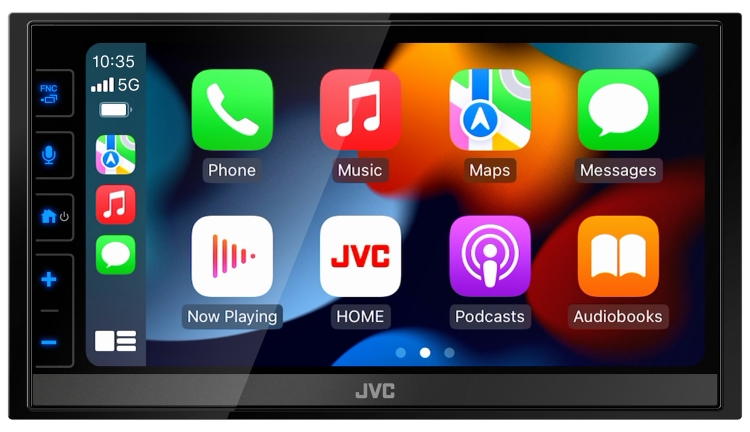

JVC 6.8 Inch Digital Media Receiver with Bluetooth and Android Auto - KW-M780BT

Authorized Dealer Price Match Guarantee
Price Match Guarantee
The Power Centre offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.
Price$629.00
Savings$101.00
Our Price $528.00 CAD

Or as low as $176.00/month over 3 months. Apply Now


Availability
Call for availability

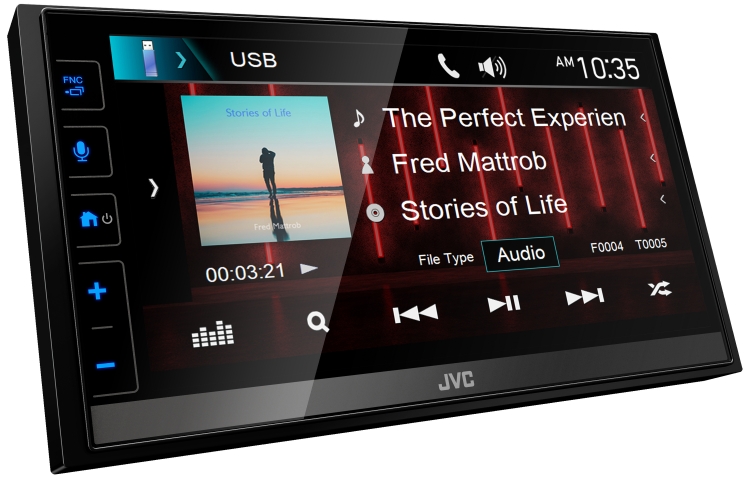

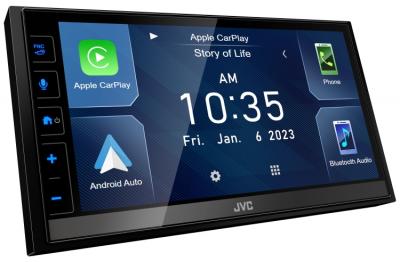

Digital Media Receiver featuring 6.8-inch Capacitive Touch Control Monitor (6.8" WVGA) / Apple CarPlay / Android Auto / USB Mirroring for Android Phones/ iDatalink Maestro Ready / HDMI Input / Bluetooth® / 13-Band EQ / Short Chassis



SMARTPHONE INTEGRATION

JVC multimedia receivers interface your smartphone with your car to enrich your driving experience. Enjoy your favorite apps and view content on a big screen, in comfort and safety.

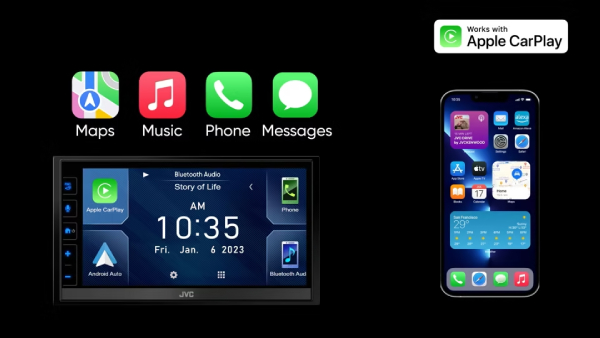

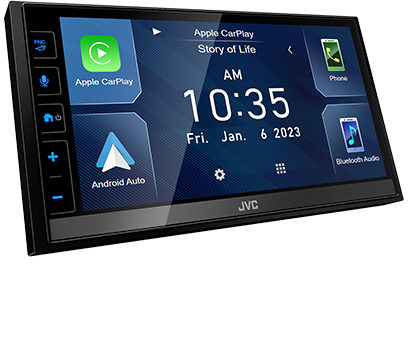

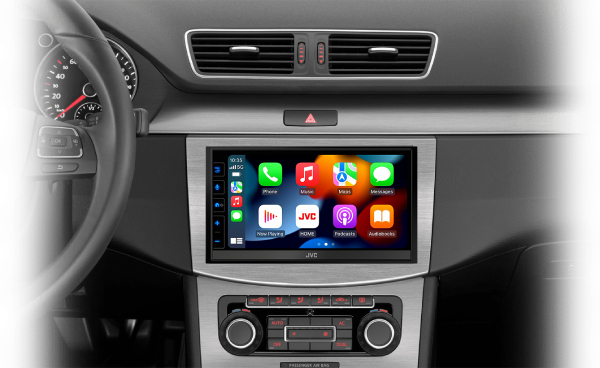

Apple CarPlay® – Connect via USB

A smarter, safer and more fun way to use your iPhone in the car. Apple CarPlay gives iPhone users an intuitive way to make calls, use Maps, and listen to music with just a word or a touch.

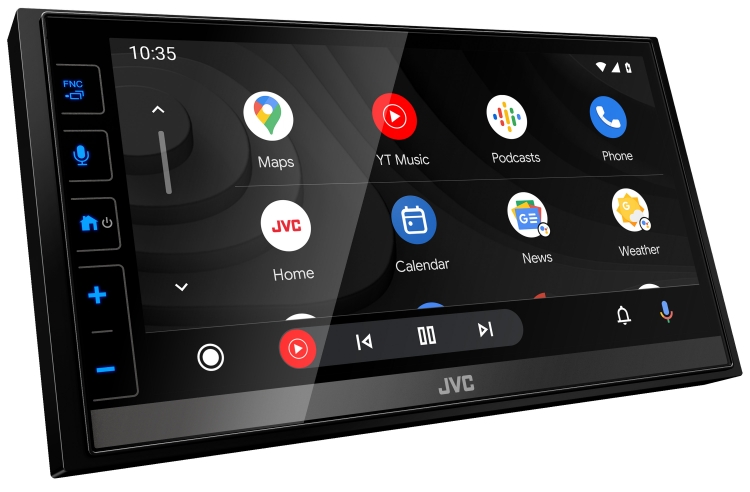

Android Auto™ – Connect via USB

Android Auto was designed with safety in mind. With larger touch targets, a simplified interface, and easy-to-use voice actions, it's designed to minimize distraction so you can stay focused on the road.

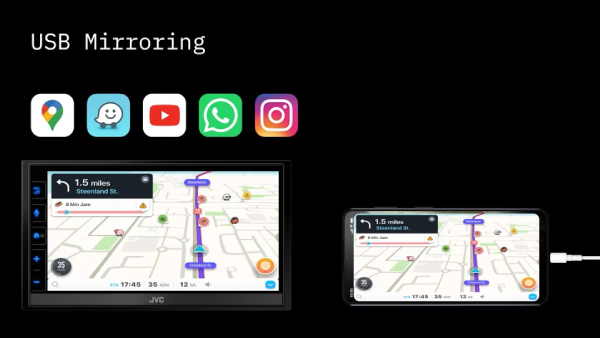

Mirroring for Android Phone – Connect via USB

By installing the “Mirroring OA for JVC” app, your Android phone is seamlessly displayed on the receiver's screen via USB. You can enjoy a variety of apps such as Waze, YouTube, and Instagram. Touch control is possible from both screen and smartphone.

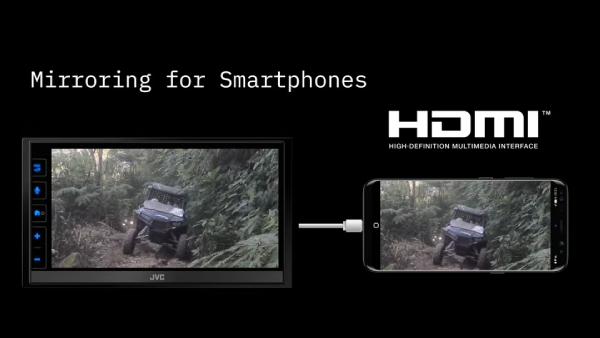

HDMI™ Mirroring for Smartphones

Display your smartphone screen on the receiverʼs display via an HDMI cable and third party adapter.

*KS-U70, optional HDMI cable and smartphone specific third party adapter are required (sold separately).



Highlights

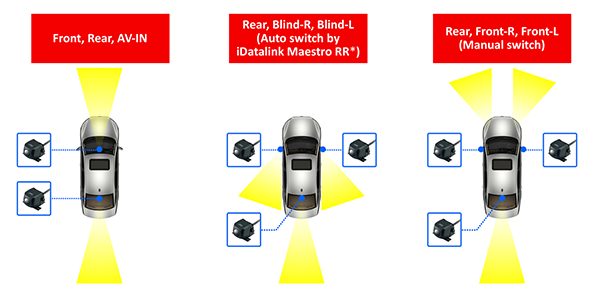

3-Camera Input

Enable users to add a reverse (rear facing) camera and an additional 2 front or blind-spot cameras, further enhancing driver safety and convenience.

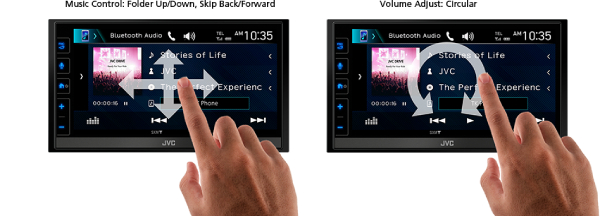

Gesture Touch Control

Just touch and move your finger over the screen for various operations corresponding to your finger movements. Intuitive control provides safer operation for in-car entertainment.



SOUND OPTIMIZATION

From advanced technologies that enable playback of premium High-Resolution Audio sources, to the vast array of sound adjustment functions to fine-tune and customize the acoustics exactly the way you want — count on JVC to deliver the music to your ears.

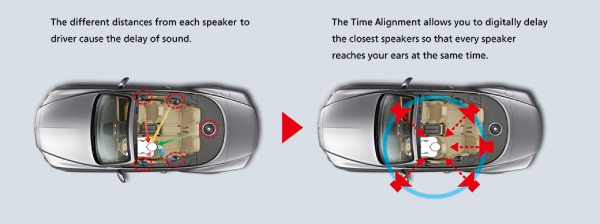

Time Alignment

By selecting the speaker type and the distance to the center of the listening position, the receiver will automatically adjust the timing of the sound output from each of the speakers so that the sound from each of the speakers will arrive exactly at the same time to the listening position.



Sound Response

Cancels time distortion to create clearer sound during the playback of compressed audio files.



Space Enhancement

Space Enhancement is a virtual surround technology using 2 speakers. Just select the vehicle size, and the receiver automatically adjusts the sound effectively

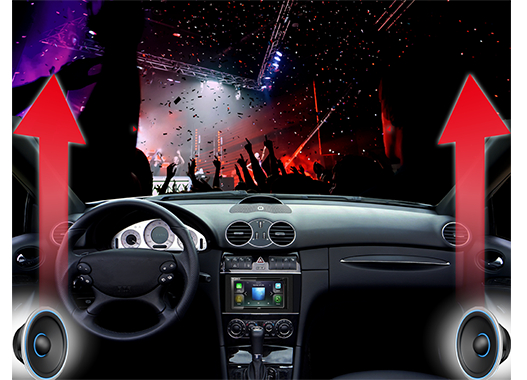

Sound Lift

Virtually manipulate the height of the speakers by adjusting the sound frequencies.

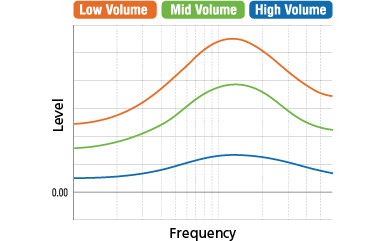

Volume Link EQ

Volume Link EQ boosts specific frequencies in the audio signal to compensate for the impact of road noise. It boosts frequencies in the music that are affected by road noise.

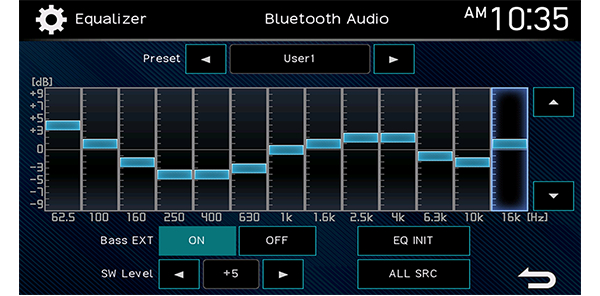

13-Band Equalizer

Use the 13-Band Equalizer to manually adjust the sound to your taste.

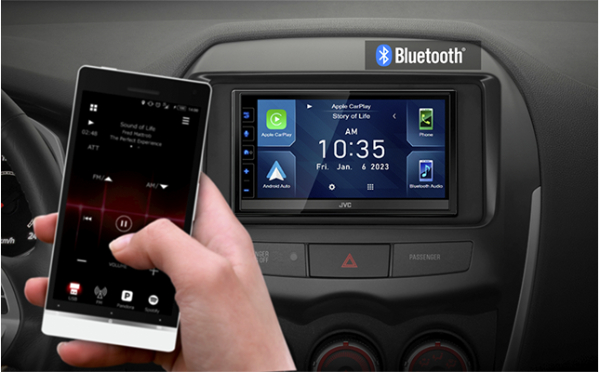

Bluetooth® Wireless Technology



2 Phones Full-Time Connection

You can connect two phones full time via Bluetooth, with secure and simple pairing. Calls to either phone can be received by a push of a key on the receiver.



Android™ Bluetooth Automatic Pairing

Just connect your Android device via USB and the automatic Bluetooth pairing function will work to complete the pairing. No complicated manual procedure to worry about.



Streaming Music

Listen to popular music applications and music stored on your device with basic audio controls.



Bluetooth Voice Recognition

Improved Sound Quality with HFP 1.8 Wideband Speech

Improved sound quality thanks to HD Voice contributes to a higher level of voice recognition accuracy.



Bluetooth AVRCP1.6 for Versatile Song Selection

In addition to repeat and random playback of music files, you can also easily search for songs using the browsing function. Just look for and choose the song you want to hear from the folder name and song name lists.



JVC Streaming DJ

Connect up to 5 Bluetooth devices simultaneously, so you and your friends can take turns streaming music like a DJ. Move to the groove and get the party pumping to the max.



Internet Radio/Digital Radio

SiriusXM Ready

(optional SiriusXM tuner required, sold separately)

Ready for SiriusXM Radio. You can listen to over 100 Channels of music, sports, and entertainment.



General

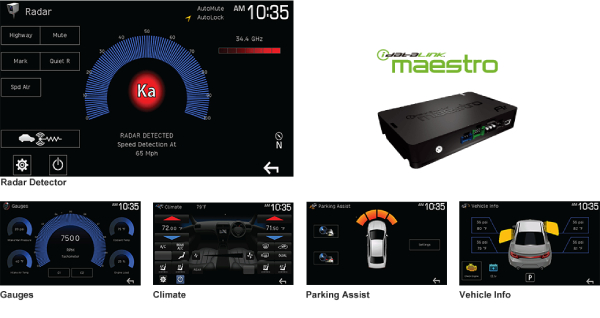

iDatalink Maestro – Advanced Vehicle Integration

iDatalink Maestro RR/RR2 (sold separately) enables the retention of the factory steering wheel audio controls, factory amplifier, secondary displays, and can even display vehicle information (performance data, climate controls, battery voltage, etc.) when connected to compatible vehicles. Radar detector information can also be displayed on the screen when used with a compatible K40 radar detector system (sold separately).



High Current 1.5A Charging

Rapidly charge your smartphone using the USB port, with up to a maximum of 1.5A.



4.0V High-Voltage 3 Pre-Outs

Equipped with three RCA terminals for pre-outs with 4.0V high voltage. Increasing the output voltage from the pre-outs helps reduce transmission noise and distortion when connected with an external amplifier.

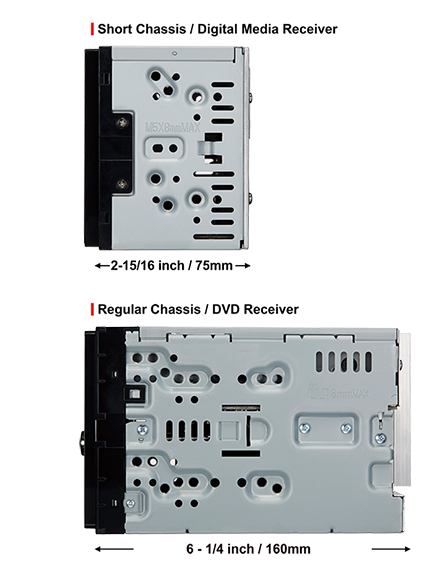

Short Chassis

The reduced depth of the chassis contributes to a weight reduction and facilitates easier installation.



Steering Wheel Remote Control Ready

Factory steering wheel control functions can be retained with a third-party adapter (sold separately).

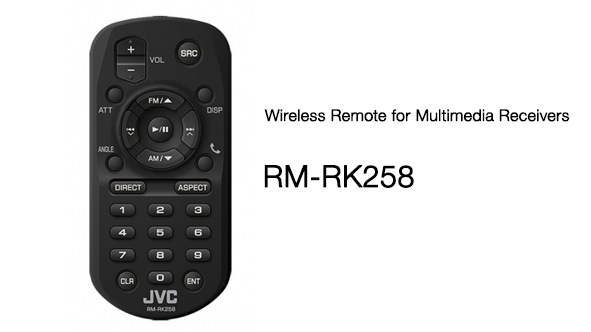

Remote Control (Optional)

Remote control (RM-RK258) is optionally available.


MONITOR
Screen Size 6.8"W VGA Screen
Touch Panel Capacitive
Gesture Touch ControlYes
Customizable GUI Yes
Key Illumination Color Variable
Dimmer Yes
Multilingual Display Yes
Wallpaper Capture Yes
Media Playback
MP3 Compatible with Tag USB
WMA Compatible with Tag USB
WAV Compatible with Tag USB
AAC Compatible with Tag USB
FLAC Compatible with TagUSB
H.264 Compatible USB
WMV Compatible USB
MPEG 1/2 Compatible USB
MPEG 4 Compatible USB
MKV Compatible USB
Bluetooth Control
Built-in Bluetooth[1] Yes (Wired-Mic included)
Hands Free Call Yes (HFP1.8 Wideband Speech)
2 Phones Full-Time Connection Yes
Audio Streaming & Control (A2DP, AVRCP) Yes
Supported Audio Formats AAC / SBC
5 BT-Audio Connection Yes
Voice Dialing (voice recognition compatible mobile phone required) Yes
Phone Book Access Profile (PBAP) Yes
Alphabetical Search for Phone Book Yes
Auto Pairing for iPhone/Android Yes (Android only)
Android Control
Android Auto[2] Yes (via USB)
Mirroring for Android Yes (via USB) *Need mirroring App
Android Music Playback Yes (via Bluetooth(R))
iPod/iPhone Control
CarPlayYes (via USB)
iPhone Music Playback Yes (via USB(CarPlay) or Bluetooth(AVRCP))
USB
USB Port x 1 (High speed)
Position Rear
USB Power Supply Yes (1.5A High Current Charging)
Drive Change Mode for Mass Storage Class (selectable from internal/external memory) Yes
Radio Tuner
SiriusXM Ready Yes
Radio Broadcast Data System (RBDS) Yes
Preset Stations 20(FM:15ch, AM:5ch)
FM - Frequency Range 87.9 - 107.9MHz
AM - Frequency Range 530-1,700kHz
Audio
Maximum Power Output (Front & Rear) 50Wx4
Full Bandwidth Power (Front & Rear) 22W x 4 (Full Bandwidth Power, at less than 1% THD)
EQ Yes (13-Band Graphic EQ)
Preset EQ Yes (8Preset + 4user)
Bass Boost Yes
High-Pass Filter/Low-Pass Filter Yes/Yes
3-Way X'over Yes
Digital Track Expander Yes
Space Enhancement Yes
Sound Response Yes
Sound Lift Yes
Volume Link EQ Yes
Time Alignment Yes
Inputs and Outputs
AV Input mini jack (AV-IN or Camera-IN switchable) x 1
Video Out RCA x 1
HDMI Terminal Yes
Rear view camera Input Yes
Front view camera Input Yes
Line Output Terminals 3 Pairs (Front + Rear + Subwoofer)
Pre-output Level/Impedance 4.0V / 10k ohms
General
iDatalink Maestro Ready Yes
Back Up Memory Yes
Face Type
Viewing Angle Adjustment Yes (0 - 20 degree, default : 0 degree)
Short Chassis Yes (2-15/16inch, 75mm)
Wireless Remote Control Ready (RM-RK258 required)
Steering Remote Control Ready Yes
