Denon Integrated Network Amplifier - PMA1700NESP

Denon Integrated Network Amplifier - PMA1700NESP

Denon Integrated Network Amplifier - PMA1700NE

Authorized Dealer Price Match Guarantee
Price Match Guarantee
The Power Centre offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.
Our Price $2,749.00 CAD / Each

Or as low as $305.44/month over 9 months. Apply Now

Our Price $2,749.00 CAD / Each

Or as low as $305.44/month over 9 months. Apply Now

Our Price $2,749.00 CAD / Each

Or as low as $305.44/month over 9 months. Apply Now


Availability
Call for availability

Availability
Call for availability

Availability
Call for availability

More options
Literature

Featuring advanced ultra-high current single push-pull circuit power, Advanced AL32 Processing, and MM/MC phono equalizer, the Denon PMA-1700NE integrated amplifier delivers extraordinary sound quality with precise detail.



Powerful sound from an integrated amplifier

Engineered with premium Denon technologies, this amplifier drives two channels at 140W.

Faithful audio reproduction

Advanced AL32 Processing Plus delivers the richly detailed sound the artist intended.

Build integrity with selected components

With more than 110 years of audio excellence, Denon products are built to last.



High-power 140W integrated amplifier

Drive your loudspeakers with 140 Watts of power- per-channel into 4 Ohms. This integrated amplifier offers compatibility with the widest range of 6 speaker types and impedances for operational stability.



Advanced AL32 Processing Plus

Advanced AL32 Processing Plus supports high-resolution 384 kHz/32-bit audio sources. The algorithms restore information that was lost during the digital recording to ensure detailed playback.



USB-DAC

To accurately synchronize digital circuits, the PMA- 1700NE provides USB-DAC functions that support high resolution up to 11.2-MHz DSD and 384- kHz/32-bit PCM input signals. Crafted with exceptional quality, the DAC suppresses jitter and ensures optimal precision in D/A conversion.



High-precision electrical controls

The PMA-1700NE embraces electrical volume, balance, and tone controls while preserving the analog feeling of operation. The unique mechanism offers smooth, linear control.


Control
Power CordYes
BatteryYes (AAA x2)
Remote ControllerYes
Quick Start GuidePaper E2: (English, German, French, Italian, Dutch, Spanish, Swedish, Polish, Russian) E3: (English, French, Spanish) E1C: (Simplified Chinese) JP: (Japanese)
Owner's ManualWeb Manual E2: (English, German, French, Italian, Dutch, Spanish, Swedish, Polish, Russian) E3: (English, French, Spanish) E1C: (Simplified Chinese) JP: (Japanese) Paper JP: (Japanese)
Auto Standby ModeYes
Last Function MemoryYes
TV Auto-play (Opt/Coax digital-in detecter)Yes
Control with App via Network Player (Use Remote Control Bus)Yes
Display LanguageAlphabetical
Dimmer for Front DisplayBright / Dim / Dark / Off
Front Panel DisplayYes (OLED 128 x 100 dot) MXS4036-A
LEDPOWER: 1 Red / Green ANALOG MODE: 1 Green SOURCE DIRECT: 1 Green MM / MC :1 Green
Unit control (Knob)5 VOLUME, INPUT SELECTOR, BASS, TREBLE, BALANCE
Unit control (Button)Push Switch: 1 POWER Tact Switch : 3 ANALOG MODE, SOURCE DIRECT, MM / MC
Remote ControllerYes

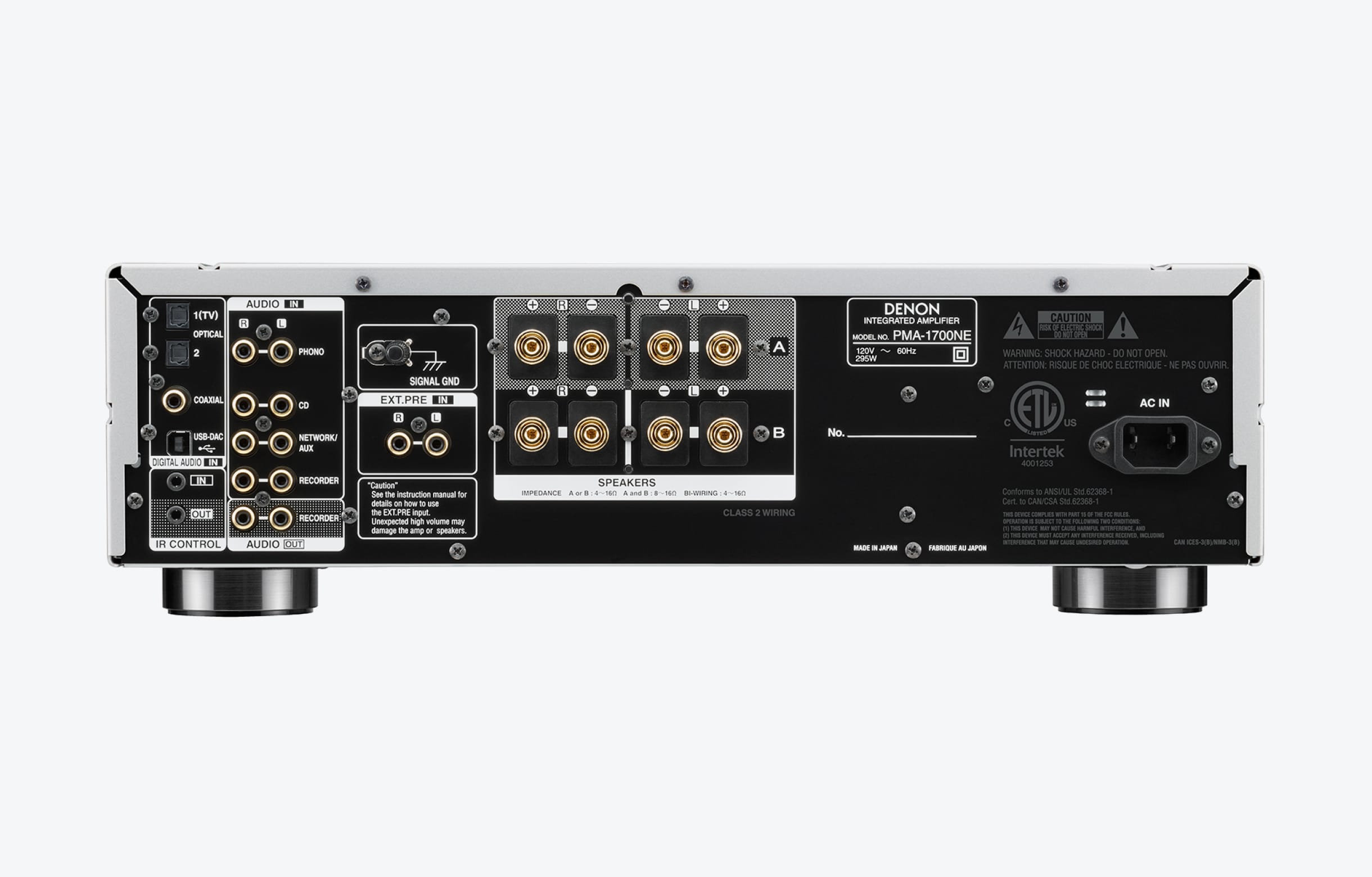

Connectivity
Roon CertificatonYes(Roon Tested) TBD
DSD Audio Streaming (DoP)~11.2MHz
PCM Sample Rate~384kHz/32bit
Module or Main DeviceNew XMOS (XU210-256-TQ128 )
USB B (USB DAC)1 (Rear)
HEOSNo
AC InletYes
Wi-FiNo
Headphone Output1 (Turn off the speaker when inserting headphone)
Remote Control Bus TerminalYes (mini)
Speaker TerminalGold Plated
2 sets of Speaker OutputYes (Bi-wiring)
Ext. Pre Input (Power Amp Direct)Yes(Ext.Pre)
Optical input / output (Maximum Support)2 / 0 (192kHz/24bit)
Coaxial input / output (Maximum Support)1 / 0 (192kHz/24bit)
Analog Input (include Phono) / REC Out (RCA)4/1 (PHONO / CD / NETWORK ,AUX/ RECORDER)
Phono InputYes (MM / MC) *default=MM
Audio Feature
Isolator (for USB-B input)Yes Full Isolation
Asyncronous mode (for USB-B input)yes
DAC Master Clock Design (Not Support Network Playback)Yes
Digital FilterFixed
Digital ProcessingAdvanced AL32 Processing Plus
DAC CircuitPCM1795
Other70
Analog Amp ModeYes (button on front panel)
Type of Tone ControlElectric Controlled by Potentiometer
Headphone CircuitUse Poweramplifier
Source DirectYes
Pre Amplifier CircuitVariable Gain Preamplifier (OP AMP)
VolumeElectric (MUSES 72323)
Bass / Treble / Mid / Balance ControlYes / Yes / No / Yes
Power TransDual El Core
Power Amplifier CircuitNew UHC-MOS Single Push Pull (7)
Specifications
at Standby0.2W TV autoplay off 0.4W TV autoplay on
Power Consumption295W
Tone ControlBASS : 100Hz ±8dB TREBLE : 10kHz ±8dB
Signal to Noise RatioPHONO (MM): (89dB) PHONO (MC): (74dB) CD: (107dB)
Input Sensitivity: Power Amp input0.85V / 47kohm (EXT. PRE)
Phono Maximum InputMM : 130mV / 1kHz MC : 10mV / 1kHz
Input Sensitivity: CD/LINE/RECORDER125 mV / 19 kohm
Input Sensitivity: Phono inputMM: 2.5 mV / 47 kohm MC: 200
RIAA Deviation20 Hz - 20 kHz ଐ.5 dB (MM/MC)
Dumping Factor100 and over
Total Harmonic Distortion0.01 % (Rated output: –3 dB), 8 ohm/ohms, 1 kHz
Frequency Response5Hz - 100kHz (0~ -3dB)
Speaker ImpedanceA or B : 4 ~ 16ohm A + B : 8 ~ 16ohm
Rated Output Power70W + 70W (8ohm,20Hz-20kHz,THD0.07%) 140W + 140W (4ohm, 1kHz, THD0.7%)
General
FootABS resin with rigid rib w/Hot stamp (H : 20mm)
Heatsink for Power AmplifierExtruded Aluminum
Power buttonAluminum
Other knob/button (LOUDNESS, SOURCE DIRECT etc)Mold (Source Direct,Analog Mode,MM/MC)
Bass/Treble/Balance/ Phono Sel knobsAluminum
Volume KnobAluminum
Input SelectorAluminum
Bottom LayerSingle
Chassis MaterialSECC t1.2mm
Rear PanelSECC t1.0mm
Side screwSP: Nickel / BK: Black
Side coverSECC with 4 straight emboss
Front (Center) PanelAluminum
Panel ColorSP / BK
Cushion / Packing4 Separate / Sheet
Carton Color2 Color
Packaging gross weight20.4kg, 45lb
Packaging Dimensions (W x D x H)548 x 520 x 249mm, 21.6 x 20.5 x 9.8in
Net weight17.6kg, 38.8lb
Cabinet Size (W x D x H)434 x 374 x 135mm, 17.1 x 14.7 x 5.3in
Unit (W x D x H)434 x 410 x 135mm, 17.1 x 16.1 x 5.3in
