Denon 9.2 Channel 8K AV Receiver with 3D Audio, HEOS Built-in and Voice Control - AVRX4700HBKE3

Authorized Dealer Price Match Guarantee
Price Match Guarantee
The Power Centre offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.

Availability
Call for availability

The Denon AVR-X4700H 9.2 channel 8K AV receiver with 125W per channel fully supports 3D audio formats like Dolby Atmos®, Dolby Atmos Height Virtualization Technology, DTS:X®, DTS Virtual:X™, IMAX® Enhanced and Auro-3D®. Comes equipped with the latest in HDMI specifications such as 8K/60Hz and 4K/120Hz pass-through, VRR, ALLM, Dynamic HDR, HDR10+ and eARC support.

Overview

Immerse yourself in high-power, precision-based home theater entertainment with the new Denon AVR-X4700H. With 125W per channel (8 ohms, 20Hz-20kHz, THD: 0.05%, 2 ch. driven) this performance-tuned Denon receiver delivers a truly immersive 3D audio experience with eARC support. The AVR-X4700H features the latest in 3D audio formats such as Dolby Atmos®, Dolby Atmos Height Virtualization Technology, DTS:X®, DTS Virtual:X™, IMAX® Enhanced and Auro-3D®. The AVR-X4700H also supports the latest video technologies such as 8K/60Hz and 4K/120Hz pass-through, Dolby Vision™, HDR10, HDR10+, Dynamic HDR, HLG, as well as 8K upscaling and HDCP 2.3 support on all HDMI inputs (8 in/3 out).

The front-panel USB offers convenient audio playback of MP3 and Hi-Res audio formats (WAV, FLAC, ALAC and DSD 2.8/5.6 MHz files). Stream popular music services like Spotify®, Pandora®, TIDAL and more wirelessly via Bluetooth, Apple AirPlay 2 and Wi-Fi with HEOS® Built-in. The Denon AVR-X4700H works with Amazon Alexa, Google Assistant, Apple Siri and Josh.ai for effortless voice control.

By visually guiding you through each step in the setup process, the award-winning Denon Setup Assistant ensures you get set up right the first time. Every home theater is different — that’s why Denon uses the premium Audyssey MultEQ XT32 room calibration technology from Audyssey that automatically measures and optimizes your AV receiver to provide a truly immersive 3D audio experience custom-tailored to your unique listening environment.

Features

  • High-performance discrete 9-channel amplifier: Delivers a dynamic 125W per channel (8 ohms, 20Hz-20kHz, THD: 0.05%, 2 ch. driven) to provide a trusted, precise and powerful Denon sound experience.
  • Full 8K/60Hz and 4K/120Hz support: With the latest HDMI support, enjoy 8K quality video from your 8K source devices. Supporting one 8K input and two 8K outputs allows for 8K/60Hz and 4K/120Hz pass-through. 8K upscaling is available on all 8 HDMI inputs.
  • The latest in HDMI support: With 8 advanced HDMI inputs with full HDCP 2.3 support and 3 HDMI outputs, connect to all your favorite media devices and output up to 3 monitor displays so you can enjoy from any room.
  • Enjoy your favorite immersive 3D audio: Enjoy immersive, 3D audio from sources like Dolby Atmos®, Dolby Atmos Height Virtualization, DTS:X®, DTS Virtual:X™ and Auro-3D®.
  • IMAX® Enhanced Technology: Delivers a true IMAX theater experience at home.
  • Enhanced Audio Return Channel (eARC) HDMI support: Through the main HDMI output, connect your TV with eARC HDMI support to allow uncompressed and object-based audio formats like Dolby Atmos® and DTS:X® directly from your smart TV app to your AV receiver.
  • The latest in video compatibility: The latest HDR format support including HDR10, HDR10+ (New in 2020), HLG, Dolby Vision, as well as Dynamic HDR (New in 2020), to provide the greatest picture quality for brightness, clarity and contrast.
  • The next generation in movie immersion: With 8K/60Hz pass-through and upscaling, Dynamic HDR and Quick Media Switching (QMS), enjoy crystal clear and smoothest picture in the highest quality available.
  • The latest in gaming experiences: With 4K/120Hz pass-through, Variable Refresh Rate (VRR), Auto Low Latency Mode (ALLM) and Quick Frame Transport (QFT), enjoy your gaming experience with amazing imaging with reduced lag.
  • New DSP for more processing power: With 11.2 ch. max audio processing, connect an external power amplifier to the AVR-X4700H to power two additional channels to enjoy a 11.2 ch. home theater setup.
  • Works with your favorite voice assistants: Use your voice to control the AVR-X4700H and wireless music services hands-free with Amazon Alexa, Google Assistant, Apple Siri and Josh.ai.
  • Wireless streaming from the most popular music services: Enjoy all of your favorite music services like Spotify®, Pandora®, Amazon Music HD, TIDAL, SiriusXM, Deezer and more. The AVR-X4700H also lets you enjoy your music via AirPlay 2, letting you stream your favorite tracks from Apple Music.
  • “Roon Tested” Certified: Get more out of your digital music library with searchable, surfable information about your favorite artists and songs. Find lyrics, concert dates, photos, bios, reviews and more.
  • Phono input: With the included phono input, the AVR-X4700H lets you connect your turntable and play your favorite vinyl records with ease. Enjoy your collection with exceptional quality and sound.
  • Dual subwoofer outputs: Smooths out low frequencies for better bass dispersion.
  • HEOS® Built-in wireless multi-room music streaming technology: Listen from any room for a connected, whole-home audio experience. The AVR-X4700H also works with the newly introduced Denon Home speakers to let you enjoy a whole-home audio experience.
  • High-resolution audio streaming for Hi-Fi enthusiasts: Enjoy your favorite Hi-Res quality file playback with FLAC, ALAC, and WAV support, as well as DSD 2.8/5.6MHz.
  • All Zone TV audio: Play the audio from your TV to another zone for your favorite shows without losing fully discrete surround sound in the main zone.
  • Built-in Bluetooth® and Wi-Fi with 2.4GHz/5GHz dual band support: Solid wireless network connectivity even in congested environments.
  • Bluetooth® Audio Transmitter: Enjoy your favorite audio through your Bluetooth headphones late at night or with your family member who is hearing impaired. This feature supports Bluetooth-only playback as well as simultaneous playback with connected speakers.
  • Award-winning Denon guided setup assistant and graphical user interface: Easy and intuitive out-of-box experience.
  • Smart TV connectivity: Control the Denon AVR-X4700H with your TV remote via HDMI CEC.
  • Audyssey MultEQ XT32, Dynamic Volume, Dynamic EQ, LFC and Sub EQ HT: Delivers the ultimate equalization for your individual room including subwoofer EQ.
  • OvrC and Domotz Pro remote system monitoring and management technology and RS232 Control: Lets custom integrators monitor and troubleshoot remotely, drastically reducing downtime.
  • Custom install ready: The Denon AVR-X4700H features external control and IP control capabilities for easy customization and compatibility with third-party integration solutions.
  • Equipped with two 12V trigger outputs: Connect up to two devices such as a cooling fan or projector and operate on standby power.
  • Amazing audio built on 110-years of innovation: Denon is the defining audio company of Japan. Founded in 1910, we enable the moments that matter through the relentless pursuit of quality, innovation and audio performance.
  • Includes three-year limited warranty (US only)

ULTIMATE HOME THEATER EXPERIENCE - 8K READY

The AVR-X4700H delivers the ultimate home theater experience with 8K/60Hz pass-through and upscaling, 4K/120Hz pass-through for gaming, and support for the latest HDMI specifications. The new AVR-X4700H lets you build the best 4K home theater today and gives you the comfort of knowing that your AV receiver is 8K ready when you are. Enjoy the highest quality 3D audio and video for even the most demanding entertainment needs.

POWERFUL 9-CHANNEL AMPLIFIER WITH THE LATEST HOME CINEMA SPECS

Featuring discrete high-current amplifiers on all channels, the AVR-X4700H delivers high-power performance at 125 watts per channel (8 ohms, 20Hz-20kHz, THD: 0.05%, 2 ch. driven) to ensure a dynamic and precise entertainment experience. Low impedance drivers provide operational stability for a wide range of speakers and create a balanced, tonal sound. The AVR-X4700H features an advanced HDMI section with HDCP 2.3 support, and video processing with 4K and 8K pass-through and upscaling for HDMI sources. Upgrade your expectations in home theater entertainment.

FULL 3D AUDIO SUPPORT

Immerse yourself in 3D audio with Dolby Atmos®, Dolby Atmos Height Virtualization Technology, DTS:X®, DTS Virtual:X™ and IMAX® Enhanced. The AVR-X4700H supports up to 11.2 channel processing with 9-channel amplification. Add your choice of 2-channel power amplifier to fill-in extra 2-channels and build a 7.2.4 or 9.2.2 Atmos theater for a more immersive, 3D audio experience.

DRIVE IMMERSIVE SURROUND SOUND

Set up a 5.1.4 or 7.1.2 Dolby Atmos surround system using the nine channels of amplification built-in to the AVR-X4700H. With Dolby Atmos elevation speakers or dedicated overhead speakers, enjoy the ultimate Dolby home theater experience.

With Dolby Atmos Height Virtualization Technology support, the AVR-X4700H also provides immersive audio without height channels, creating virtual height effects you’d enjoy in a 7.2, 5.2 or 2.2 speaker arrangement.

CLOSER TO THE ACTION

DTS:X and DTS Neural:X™ gives your movies, games and music a realism unmatched by traditional 5.1ch surround sound.

With DTS Virtual:X Height Virtualization Technology support, the AVR-X4700H also provides immersive audio without height channels, creating virtual height effects you’d enjoy in a 7.2, 5.2 or 2.2 speaker arrangement

IMAX® ENHANCED TECHNOLOGY

Get the most premium at-home entertainment experience with IMAX® Enhanced — the latest technology from DTS that sets a new standard for home theater imaging, sound, scale and clarity. Watch clearer pictures and brighter images. Feel immersive, heart-pounding audio and experience premium content digitally remastered by IMAX.

GEARED UP FOR 8K ULTRA HD

With the new AVR-X4700H, enjoy all your entertainment with latest technology available and watch your movies in unrivaled clarity. Enjoy your movies in 8K with 8K/60Hz pass-through and upscaling, as well the latest in AV receiver technology like Dynamic HDR and Quick Media Switching (QMS), which is used in movies to eliminate video delay.

ADVANCED 8K HDMI VIDEO SECTION WITH EARC

The AVR-X4700H features an advanced HDMI section (8 in/3 out) with a dedicated 8K input that will support 8K/60Hz and 4K/120Hz video pass-through. All HDMI inputs feature 4:4:4 Pure Color sub sampling, HDR10, Dolby Vision, Hybrid Log-Gamma (HLG), and BT.2020 pass-through support for exceptional color, clarity and contrast. Enjoy 8K upscaling as well as HDCP 2.3 processing to play copy-protected content uninhibited. The AVR-X4700H also adopts eARC (enhanced Audio Return Channel) to support 3D audio formats directly from your smart TV apps to your AV receiver.

ADVANCED VIDEO CONTROLS

HDCP 2.3 processing is available on all HDMI ports, letting you enjoy copy-protected content totally uninhibited. Certified by the Imaging Science Foundation, the AVR-X4700H features a full suite of video calibration controls (for use by an ISF technician), along with ISF Day and ISF Night video modes. Enjoy seamless compatibility with the latest HD and Ultra HD TVs, Blu-ray players and game consoles.

BRILLIANT COLOR – UNIVERSAL COMPATIBILITY, HDR10+ AND DYNAMIC HDR

The AVR-X4700H supports High Dynamic Range video format, HDR10, Dolby Vision and HLG (Hybrid Log Gamma). Dolby Vision transforms the viewing experiences with astonishing brightness, contrast, and color. HLG offers HDR technology over broadcast content for a crisper, cleaner image. The AVR-X4700H also supports HDR10+, which sends dynamic meta data to TV for more realistic images, as well as Dynamic HDR.

(Some technologies are not available on all televisions.)

THE NEXT GENERATION IN GAMING

Showcased in the new AVR-X4700H, enjoy gaming to its full potential. Enjoy your gaming with 4K/120Hz pass-through, as well as Variable Refresh Rate (VRR), Quick Frame Transport (QFT), and Auto Low Latency Mode (ALLM), which reduced or eliminates lag and frame tearing to offer a smoother, lag-free gaming experience.

WORKS WITH LATEST VOICE ASSISTANTS

Enjoy effortless voice control and total flexibility from the leading voice services. Using a smart speaker or your phone, speak commands with Amazon Alexa, Google Assistant, Apple Siri and high-end smart home automation, Josh.ai. Ask to play your favorite music, turn the volume up, skip to the next track, switch inputs and more. Switch between voice services or pick a favorite to use — the choice is yours. Functionality varies by voice agent.

WORKS WITH AMAZON ALEXA

Control the AVR-X4700H hands-free with Amazon Alexa and your voice. Adjust the volume, skip to the next track, switch inputs for your different media players and more — “Just Ask.” Download the HEOS® Home Entertainment Skill to enable Amazon Alexa voice commands for your AVR-X4700H, HEOS devices and other select Denon products. Requires Alexa app and Amazon Echo, Dot or equivalent.

WORKS WITH GOOGLE ASSISTANT

Start music in the HEOS app, then ask your Google Assistant to control volume, play, pause, skip tracks and more.

AIRPLAY 2 + APPLE SIRI VOICE CONTROL

Use AirPlay 2 to stream Apple music wirelessly to the AV receiver, or group with other AirPlay compatible speakers to fill your home with music.

Stream audio from your favorite music services like Apple Music and Spotify or watch videos from services like YouTube and Netflix from any iPhone, iPad, Mac or Apple TV and hear the audio perfectly synced to your speakers AirPlay 2 sources.

AirPlay 2 also supports multi-room audio – wirelessly stream content to multiple AirPlay 2 compatible devices simultaneously with improved audio buffering to ensure smooth audio playback. AirPlay 2 provides control and grouping of compatible audio devices within the Apple Music or Home app. Use AirPlay 2 in-app or with your voice via Siri.

JOSH.AI SMART HOME VOICE AUTOMATION

An elevated voice agent for the high-end smart home, Josh.ai offers flexible voice control for nearly any aspect of your day-to-day experience and entertainment environment. Use voice commands to control the thermostat, lights, home appliances, speakers, AV receiver and more. Josh.ai is installed by custom integrators and accessed through an app on your phone or tablet. Works with iOS and Android devices.

HEOS® BUILT-IN FOR WIRELESS MUSIC STREAMING

Enjoy your favorite music in any room of your home wirelessly with HEOS® Built-in technology. Play the same song in every room or select a different song for each connected room — the choice is yours. Also works with Amazon Alexa, Google Assistant, Apple Siri and Josh.ai to provide cutting-edge voice control and incredible sound for all your home entertainment. Connect your Denon Home speakers for a whole-home audio experience.

HEOS® supports free and premium Spotify, Pandora, Amazon Music HD, TuneIn, SoundCloud, SiriusXM, TIDAL and more.

(Not all music services available in all regions.)

HIGH-RESOLUTION AUDIO SUPPORT

Enjoy superb audio fidelity with your favorite high-resolution audio tracks. The AVR-X4700H features the latest AKM 32-bit D/A converters allowing for high resolution audio decoding with multiple lossless file types, including ALAC, FLAC and WAV at up to 192kHz/24bit. It is also compatible with 2.8/5.6-MHz DSD files (DSD is the audio coding format of SACD). Play them from memory devices via the front panel USB, or over network sources. The AVR-X4700H also supports other file types such as MP3 and WMA.

AL32 PROCESSING

Listen with advanced Denon audio processing features such as AL32 Processing. Denon-proprietary AL32 Processing technology provides multi-channel, ultra-high-resolution digital audio filtering on all audio channels and delivers a natural soundstage with enhanced imaging of the sound.

PHONO INPUT FOR TURNTABLE/VINYL SUPPORT

With the included phono input, the AVR-X4700H lets you connect your turntable and play vinyl records. Enjoy your vintage collection with exceptional quality and sound.

DUAL SUBWOOFER OUTPUTS

Immerse yourself in evenly distributed, accurate bass. The AVR-X4700H features two subwoofer outputs to smooth out low frequencies and provide better dispersion. Connected subwoofers can be calibrated independently with Audyssey Sub EQ HT for more seamless bass performance tailored to your room. No audible peaks or dips — just powerful, room-filling bass.

ROON TESTED” CERTIFIED

All new Denon AV receivers are now Roon Tested including the AVR-X4700H. Get more out of your digital music library with searchable, surfable information about your favorite artists and songs. Find lyrics, concert dates, photos, bios, reviews and more.

ADVANCED SOUND PROCESSING

Experience extraordinary sound quality from both music and movies.

DSP POWER PROCESSING

Inherited from the Denon flagship AVR-X8500H, a sophisticated digital audio processing system that incorporates two dual SHARC+ core DSP chips is adopted on the AVR-X4700H allowing up to 11 channel audio processing and decoding capability at ease.

PRE-AMPLIFIER MODE AT AMP ASSIGN

With new Pre-Amplifier Mode, your Denon AV receiver works as a perfect AV pre-processor with the latest HDMI connectivity. Pre-Amplifier Mode provides a cleaner signal path and more tolerance in clipping level by disconnecting internal amplifiers. Modernize your AV separate system without breaking the bank.

MULTI-SOURCE, MULTI-ROOM

With the Denon AVR-X4700H, it’s possible to enjoy 9.2 channel surround sound in one room and a separate source or music stream in up to 2 others for a total of 3 sources and 3 zones. Watch a movie in one room while another family member listens to music in a different zone without interruption. Make use of the internal amps to power the speaker or use the zone-pre-outs.

ALL ZONE TV AUDIO

Play the audio from your TV to all zones. Enjoy fully discrete audio such as Dolby Atmos in the main zone for a completely immersive experience while playing the same source in the second or third zone. Select “Source” for the second zone to share the main zone audio. The AVR-X4700H supports both HDMI and digital sources for your second or third zone.

BLUETOOTH AUDIO TRANSMISSION

Enjoy your favorite audio without waking your whole home by transmitting the audio coming from your AV receiver to your Bluetooth headphones. The AVR-X4700H even allows you to play the audio on both Bluetooth headphones and connected speakers simultaneously. If you have a family member or a friend who is hearing impaired, we recommend this setup.

EASY SETUP EXPERIENCE

The included AVR-X4700H Quick Start Guide provides simple, clear instructions for how to get started. Once you connect your TV to the AVR-X4700H via HDMI, the exclusive Denon Setup Assistant appears on your TV screen to walk you through setup, step by step. Also, on the back of the AV receiver, a row of color-coded speaker connections is laid out horizontally, making organizing and connecting speaker wires simple. The AVR-X4700H will rename HDMI inputs automatically when connected or you can rename manually for your convenience.

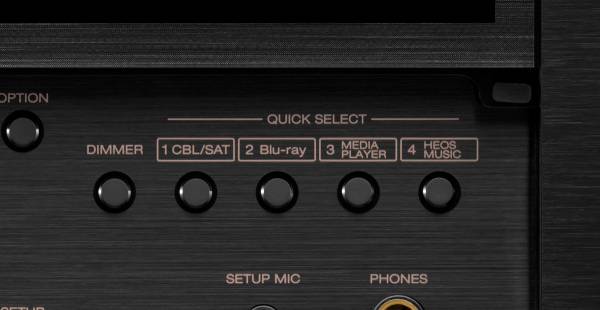

QUICK SELECTS FOR USER-FRIENDLY AUDIO TUNING

The Denon AVR-X4700H front panel features four Quick Select buttons that store your preferred audio settings for each source. Switch between TV audio, Blu-Ray, media players and more, and the AVR-X4700H adjusts the EQ settings to your preferences for that media source. Use the buttons on the front panel or opt for the same Quick Selects on the AVR remote for faster control.

SMART TV CONNECTIVITY

Control the Denon AVR-X4700H with your TV remote via the HDMI CEC functionality associated with your TV. The Smart Menu home screen provides you quick access to source and surround mode selections, the setup menu and four Quick Selects.

BUILT-IN BLUETOOTH, WI-FI AND AIRPLAY 2 COMPATABILITY

The heart of your wireless network. For Bluetooth, Wi-Fi and AirPlay 2 wireless streaming connectivity, the Denon AVR-X4700H is equipped with an advanced dual antenna transceiver system for robust streaming even in congested urban environments. Enjoy listening to your favorite audio content wirelessly from your smart devices.

With HEOS® Built-in technology play the same song in every room or select a different song for each connected room — the choice is yours. HEOS works with Amazon Alexa and Google Assistant, providing effortless voice control.

HEOS supports free and premium Spotify, Pandora, Amazon Music HD, TuneIn, iHeartRadio, Sound Cloud, SiriusXM, TIDAL and more.

DENON AVR REMOTE APP FOR SEAMLESS CONTROL

Better control in your back pocket. The free Denon AVR Remote for iOS and Android makes using the AVR-X4700H even easier — adjust volume, turn it on or off, mute the music, select a source or switch to HEOS®. Download the free Denon AVR Remote app to your smartphone or tablet today.

AUDYSSEY MULTEQ XT32 FOR SIMPLE SETUP AND ROOM CALIBRATION

Optimize your audio experience with Audyssey MultEQ XT32 for seamless setup of your listening environment. With the supplied measurement microphone, MultEQ XT32 analyzes each speaker's output (including subwoofers) at up to eight measurement locations and generates precision digital filters that optimize each channel for the correct frequency and time domain response. Audyssey Dynamic Volume smooths out disruptive jumps in volume (such as TV commercials), letting you listen at lower levels while still enjoying clear dialogue, music and sound. Audyssey Dynamic EQ provides full-range clarity at any listening level, and Audyssey Low Frequency Containment uses advanced psychoacoustic algorithms to deliver a full-range balance, including deep bass, without disturbing neighbors or people in other rooms of your home. Audyssey Sub EQ HT provides individual DSP tailoring of each subwoofer in a dual subwoofer setup for deeper bass with improved definition. Plus, the Audyssey MultEQ Editor app (available for purchase) lets you view and adjust settings for detailed tuning and customize the sound more precisely to your room and tastes.

The app is available for both iOS and Android.

DUAL SPEAKER PRESET MEMORY

The new AVR-X4700H allows storing of two Audyssey settings as well as switching between the two settings on the fly, giving you freedom to tweak your listening experience for the content or listening environment.

12V TRIGGER OUTPUT

Whether it’s a cooling fan or a projector control, the AVR-X4700H comes with two 12V trigger outputs that operates even when the AV receiver is on standby

Custom Install Ready

The Denon AVR-X4700H features external control and IP control capabilities for easy customization and compatibility with third-party integration solutions. It offers IP control capability for major third-party control devices, as well as Control4 SDPP (Simple Device Detection Protocol) certification for seamless integration with Control4 home automation equipment. An IR (infrared) remote control is included on the rear panel for remote control compatibility with other components in your home theater system, and remote monitoring capability is now supported for troubleshooting.

Remote Monitoring Capability

In today’s custom install environment, it’s critical for integrators to provide quick, reliable assistance and service to their clients, even after the install is complete. To support this effort, the AVR-X4700H AV receiver features Domotz Pro and OvrC remote system monitoring and management technology. These programs allow custom integrators to monitor the status of connected products and troubleshoot remotely from the office or on the go, radically reducing the time it takes to address the issue.

Amazing Sound Built on 110-Years of innovation

As Japan’s first audio electronics manufacturer with a deep legacy of firsts -- Denon is the defining audio company of Japan. Founded in 1910, we enable the moments that matter through the relentless pursuit of quality, innovation and audio performance. We innovate for a better experience.

Multichannel Surround
Audyssey DSX-
Multichannel StereoYes
Auro 3DYes
Dolby ProLogic Ilz Dolby Surround-/Yes
Dolby TrueHD Dolby Atmos Dolby Atmos Height VirtualizationYes/Yes/Yes
DTS Neo X DTS Neural X-/Yes
DTS HD Master / DTS:X / DTS:X ProYes/Yes/-
General
Maximum Dimensions17.1 x 15.3 x 6.6 ( 17.1 x 15.3 x 9.3 ) 【 17.1 x 14.9 x 6.6 】
Network Standby Consumption in W3.5
CEC Standby Consumption in W0.5
Standby Consumption in W0.1
Power Consumption No-Sound ECO On Off in W65 W / 110 W
Power Consumption in W710
Pre-programmed Learnable LCD DisplayYes/-/-
System Remote ControlRC-1240
Metal Front PanelYes
Specifications
Power Output 6 ohm 1 kHz 0 7 2ch Drive165 W
Power Output 8 ohm 20 Hz 20 kHz 0 05 2ch Drive125 W
Power Output 8 ohm 20 Hz 20 kHz 0 08 2ch Drive-
Number of Power Amps9
Inputs Outputs
AM FM TunerYes
USB Audio Made for iPod Made for iPhoneYes/-/-
Front Inputs Audio Composite Digital Opt HDMI USB-/-/-/Yes/Yes
Multi-Room Speaker Terminalassignable
Bi-amp Driveassignable
Speaker A Bassignable
Number of Speaker Terminals11
Speaker Terminal Gold Plated Screw Regular Screw-/Yes
7 1 Multichannel Input-
Subwoofer Out2 (independent)
Multichannel PreoutYes(11.2)
Multi-room Out Analog Digital2/-
Digital In Optical Coaxial2/2
Phono MM InYes
Analogue In out5/-
Multi-room Video Out Video HDMIYes/Yes
HDMI In Out7+1 / 3
Composite In Out3 / 2
Component In Out2 / 1
Others
Sleep TimerYes
ECO ModeYes
Bass SyncYes
Optimized Bass RedirectionYes
Variable Cross OverYes
Quick Select Plus Quick SelectYes/-
Setup AssistentYes
GUI Languages3
ISF CertificationYes
FL Display2 lines
Graphic User Interface - GUIAdvanced
Auto Speaker Setup by MicrophoneAudyssey MultEQ XT32
Multi-room CI
DC Trigger Output2
Remote In OutYes/Yes
IP Control RS232 Control Web Control App ControlYes/Yes/Yes/Yes
Zone HDMI Output from HDMI SourceYes
Zone Audio Output Speaker PreoutYes/Yes
Zone Audio Source HDMI Opt Coax Network USB AnalogYes(2ch) / Yes(2ch) / Yes/Yes
Multiroom zones3
HDMI
Auto LipSyncYes
General
Tuning frequency range520 kHz – 1710 kHz
Weight in LBS30.2
HDMI
Audio Return ChannelYes
CECYes
DSD Audio CapabilityYes
Picture Adjust Noise ReductionYes/Yes
HDMI pass-though in standby modeYes
4K Signal Pass-through Scaling GUI OverlayYes/Yes/Yes
8K signal pass-through / scaling / GUI overlayYes/Yes/Yes
3D Signal Pass-throughYes
GUI Overlay on HDMIYes
HDMI to HDMI Scalingup to 8K 60/50
Analogue to HDMI scaling480i/576i up to 8K 60/50
Video Conversion Analog HDMIYes
HDMI Outputs Main Zone2 / 1
HDCP2.3 supportYes
Network
BluetoothYes
HDMI
HDMI Inputs Back Front7 / 1
Network
Wi-FiYes
PandoraYes
SiriusXMYes
Compatible with Remote APP for Smart PhonesDenon 2016 AVR Remote
Ethernet PortsYes
SpotifyYes (connect)
Internet RadioYes(TuneIn)
AirPlay Audio StreamingYes(AirPlay2)
Photo Streaming JPEG-
Gapless playbackYes(FLAC, WAV, ALAC ,DSD)
ALAC 192 24Yes
WAV 192 24Yes
FLAC HD 192 24Yes
DSD Audio StreamingYes/(2.8/5.6MHz)
Multichannel Surround
Max Number of Processing Preamp Channels11.2
Sound Enhancements
Mono Block Power Amp Construction-
Discrete Power AmplifierYes
D D S C HD DigitalYes(32-bit)
Pure DirectYes
Gold Plated RCA Terminals-
Clock Jitter ReducerYes
Alpha ProcessingAL32 Processing Multichannel
Denon Link HD-
AudysseyMultEQ XT32
Audyssey Dynamic EQ Dynamic VolumeYes/Yes
Audyssey LFCYes
Compressed Audio RestorerYes
Network
Media ServerYes
Lossy Formats MP3 WMA AACYes/Yes/Yes
Lossless Formats FLAC ALAC WAVYes/Yes/Yes
