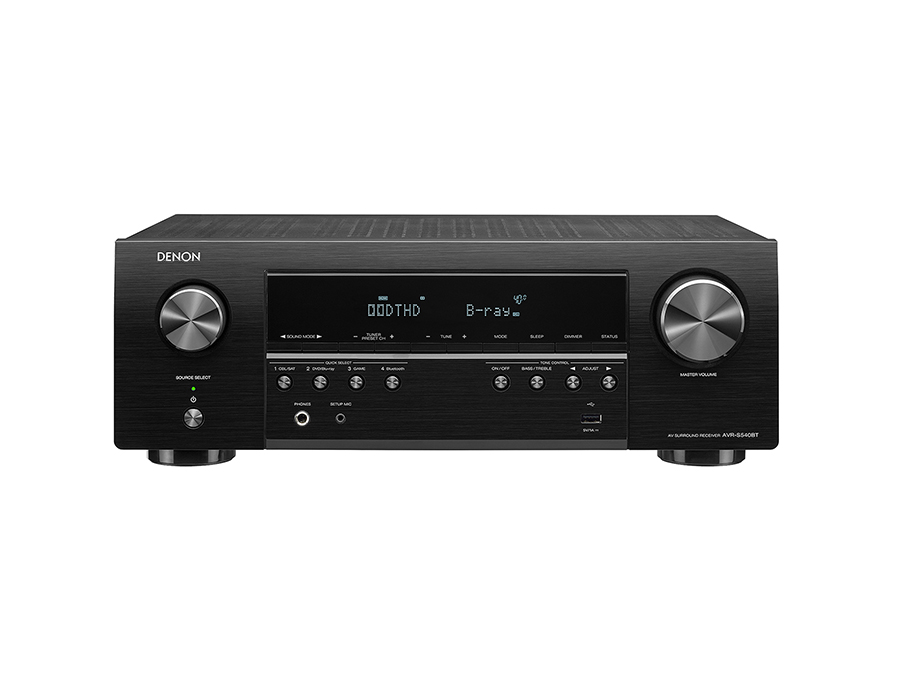

Denon 5.2 Ch. 4K Ultra HD AV Receiver with Bluetooth and Dolby Vision - AVRS540BTBKE3
Authorized Dealer
Price Match Guarantee
Denon 5.2 Ch. 4K Ultra HD AV Receiver with Bluetooth and Dolby Vision - AVRS540BTBKE3
AVRS540BTBKE3
The 5.2 channel AVR-S540BT features Dolby Vision™, HDR, HLG and 4K Ultra HD video pass-thru with 5 HDMI inputs / 1 output. Stream your favorite music tracks wirelessly via Bluetooth. With our award-winning Denon Setup Assistant, the Denon AVR-S540BT is just as easy to setup as it is to enjoy.
Overview
The 5.2 channel AVR-S540BT features Dolby Vision™, HDR, HLG and 4K video upscaling for a stunning home theater experience. It includes 5 HDMI inputs at 4K/60 Hz with full-rate pass-through and HDCP 2.2 support on all HDMI ports. Use the front panel USB port to listen to your favorite tracks seamlessly, or stream music via Bluetooth® with your smart devices. Control power, volume and source with the Denon 500 Series Remote app. With our award-winning Denon Setup Assistant, the AVR-S540BT is just as easy to setup as it is to enjoy.
High-Performance 5 Channel Discrete Amplifier
Featuring discrete power output devices on all channels, the AVR-S540BT delivers a maximum of 140 watts per channel. It’s equipped with low impedance drive capability for operational stability within a wide range of speakers.
GEARED UP FOR 4K ULTRA HD.
The advanced HDMI video section of the AVR-S540BT lets you enjoy your favorite movies and shows with the best picture quality available.
ADVANCED VIDEO SECTION
BREATH NEW LIFE INTO LEGACY SOURCES.
All five HDMI inputs support 4:4:4 Pure Color sub-sampling, HDR, BT.2020 pass-through, Dolby Vision compatibility and HLG (Hybrid Log-Gamma); full 4K Ultra HD with 60Hz pass-through and HDCP 2.2 processing is available on three HDMI ports to support copy-protected content.
HDR / DOLBY VISION
NEXT GENERATION VIDEO FORMATS.
The AVR-S540BT supports High Dynamic Range (HDR) video format. It is even ready for Dolby Vision and HLG (Hybrid Log Gamma). Dolby Vision transforms the viewing experiences with astonishing brightness, contrast, and color. HLG offers HDR technology over broadcast content.
SET-UP AND CONNECT WITH EASE.
The included AVR-S540BT Quick Start Guide provides simple, clear instructions for how to get started. Once you connect your TV to the AVR-S540BT via HDMI, the exclusive Denon Setup Assistant appears on your TV screen to walk you through setup, step by step. A row of color-coded speaker connections is laid out horizontally, making organizing and connecting speaker wires simple.
BLUETOOTH
BLUETOOTH BUILT-IN
Your favorite tracks, at your fingertips. Stream music from your computer or smart devices with the AVR-S540BT and built-in Bluetooth. It can remember up to eight paired Bluetooth devices, so invite family and friends to share their music and enjoy the audio quality of the AVR-S540BT. To stream via Bluetooth, simply select the Denon AVR-S540BT from the Bluetooth menu on your smart device.
APP CONTROL
DENON 500 SERIES REMOTE APP FOR SEAMLESS CONTROL
Better control in your back pocket. The Denon 500 Series Remote app for iOS and Android makes using the AVR-S540BT even easier — adjust volume, turn it on or off, mute the music, and select a source. Download the Denon 500 Series Remote app today.

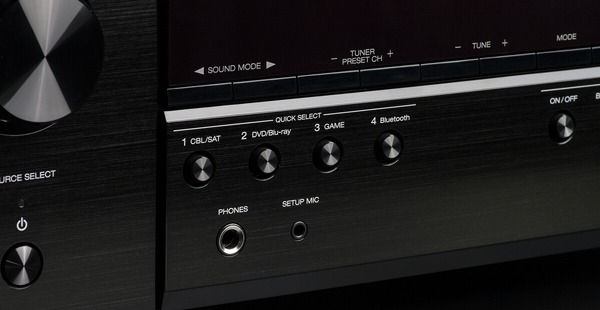

QUICK SELECT
The 5.2 channel AVR-S540BT features Dolby Vision™, HDR, HLG and 4K Ultra HD video pass-thru with 5 HDMI inputs / 1 output. Stream your favorite music tracks wirelessly via Bluetooth. With our award-winning Denon Setup Assistant, the Denon AVR-S540BT is just as easy to setup as it is to enjoy.
FRONT USB PORT FOR HIGH-RESOLUTION AUDIO
In addition to numerous analog and digital AV connectors, the AVR-S540BT features a USB port on the front panel for convenient audio playback. It’s compatible with a wide range of portable USB devices and supports MP3, WMA, FLAC and MPEG-4/AAC tracks. Whether you want to listen to your latest MP3 download or soak in the fidelity of audiophile-quality FLAC recordings, you have quick access to your favorite songs.
COMPATIBLE WITH DENON HEOS LINK
Connect the AVR-S540BT to the Denon HEOS Link (sold separately) for wireless music streaming and the ultimate in sound quality. The HEOS Link enables the AVR-S540BT to play back nearly unlimited online streaming services like Spotify, TIDAL, Pandora and more. With the HEOS Link you can add HEOS multi-room audio to your home theater audio system, and you can play different songs in different rooms or the same song in every room. Also available is is ability to control your HEOS experience with Amazon Alexa voice commands. Once connected, use the HEOS app to control the AVR remotely. Enjoy more music and flexibility with the same great Denon quality.
| Network | |
|---|---|
| Lossy Formats: MP3 / WMA / AAC | No/No/No |
| DLNA Certified | - |
| Sound Enhancements | |
| Compressed Audio Restorer | Yes |
| Audyssey LFC | No |
| Audyssey Dynamic EQ / Dynamic Volume | No/No |
| Audyssey | No |
| Denon Link HD | No |
| Alpha Processing | No |
| Clock Jitter Reducer | No |
| Gold Plated RCA Terminals | No |
| Pure Direct | No |
| D.D.S.C. HD Digital | No |
| Discrete Power Amplifier | Yes |
| Mono Block Power Amp Construction | No |
| Multichannel Surround | |
| Max Number of Processing (Preamp) Channels | 5.1 |
| Multichannel Stereo | Yes |
| Audyssey DSX | No |
| Auro 3D | No |
| Dolby ProLogic Ilz / Dolby Surround | No/NO |
| Dolby TrueHD / Dolby Atmos | Yes/No |
| DTS Neo:X / DTS Neural:X | No/NO |
| DTS HD Master / DTS:X | Yes/No |
| HDMI | |
| GUI Overlay on HDMI | Yes |
| Video Conversion Analog -> HDMI | no |
| HDMI Outputs: Main / Zone | 1/No |
| HDCP 2.2 support | Yes |
| HDMI Inputs: Back / Front | 5/No |
| HDMI to HDMI Scaling | no |
| Analog to HDMI Scaling | no |
| Network | |
| AirPlay / Airplay2 Audio Streaming | No/No |
| HEOS App Control | No |
| Other Streaming Services * | No |
| SiriusXM* | No |
| Pandora* | No |
| Spotify* | No |
| ALAC 192/24 | No |
| WAV 192/24 | No |
| FLAC HD 192/24 | No |
| Lossless formats: FLAC HD 192/24 / WAV 192/24 / ALAC 192/24 | No |
| HEOS Wireless Multi-Room Technology | No |
| Media Server | No |
| Bluetooth | Yes |
| Wi-Fi | No |
| Ethernet Ports | NO |
| Compatible with Remote APP for Tablets | Android / iOS / Amazon Kindle |
| Compatible with Remote APP for Smart Phones | Denon 500 Series Remote |
| Internet Radio | No |
| Windows PlayTo / Windows8 Certified | No |
| Gapless playback | No |
| Photo Streaming (JPEG) | No |
| DSD Audio Streaming | No |
| Lossless Formats: FLAC / ALAC / WAV | No/No/No |
| Others | |
| ECO Mode | Yse |
| Bass Sync | No |
| Optimized Bass Redirection | No |
| Variable Cross Over | Yes |
| Firmware Update by: Network / USB | No/Yes |
| Quick Select Plus / Quick Select | No/Yes |
| Setup Assistant | Yes |
| GUI Languages | 3 |
| ISF Certification | No |
| Graphic User Interface - GUI | GUI |
| FL Display | 1 Line |
| Auto Speaker Setup by Microphone | - |
| Multi-Room / CI | |
| HDMI Diagnostics | No |
| DC Trigger Output | No |
| Remote In / Out | No/No |
| IP Control / RS232 Control / Web Control / App Control | No/No/No/No |
| Zone HDMI Output from HDMI Source | No |
| Zone Audio Output: Speaker / Preout | No/No |
| Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog | No/No/No/No |
| Multi-Room Zones | No |
| HDMI | |
| HDR / HLG / Dolby Vision | Yes/Yes/Yes |
| HLG / Dolby Vision | - |
| Enhanced Audio Return Channel | No |
| HDMI: 3D / 4K / CEC / ARC / InstaPrevue | No/Yes/yes/yes/no |
| Auto LipSync | no |
| Audio Return Channel | Yes |
| DSD Audio Capability | No |
| CEC | Yes |
| Picture Adjust / Noise Reduction | No/No |
| HDMI Pass-Through in Standby Mode | Yes |
| 4K Signal Pass-through / Scaling / GUI Overlay | Yes/No/yes |
| 3D Signal Pass-through | Yes |
| Inputs/Outputs | |
| Speaker Terminal: Gold Plated Screw / Regular Screw | No/No |
| 7.1 Multichannel Input | No |
| Subwoofer Out | 2 |
| Multichannel Preout | yes(2.0 ch)/no |
| Multi-room Out: Analog / Digital | No/No |
| Digital In: Optical / Coaxial | 2/1 |
| Phono (MM) In | No |
| Analog In / Out | 2/NO |
| Multi-room Video Out: Video / HDMI | No/No |
| HDMI In / Out | 5 / 1 |
| Component In / Out | No/No |
| Composite In / Out | 2 / 1 |
| Others | |
| Sleep Timer | Yes |
| Auto Power Off | Yes |
| General | |
| Power Consumption in W | 310 W |
| Pre-programmed / Learnable / LCD Display | No/No/No |
| System Remote Control | RC-1216 |
| Metal Front Panel | No |
| Specifications | |
| Power Output (6 ohm, 1 kHz, 10% 1ch Drive) | 140 W |
| Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive) | 90W |
| Power Output (8 ohm, 20 Hz - 20 kHz, 0.05% 2ch Drive) | - |
| Power Output (8 ohm, 20 Hz - 20 kHz, 0.08% 2ch Drive) | 70W |
| Inputs/Outputs | |
| AM/FM Tuner | Yes |
| Specifications | |
| Number of Power Amps | 5 |
| Inputs/Outputs | |
| Number of Speaker Terminals | 5 |
| Speaker A / B | No |
| Bi-amp Drive | No |
| Multi-Room Speaker Terminal | No |
| Front Inputs: Audio / Composite / Digital (Opt) / HDMI / USB | No/No/No/No/Yes |
| USB Audio / Made for iPod / Made for iPhone | Yes/No/No |
| General | |
| Weight in LBS | 16.8 |
| Antenna: Horizontal: (W x D x H) in Inches | 17.1 x 12.6 x 6 |
| Network Control On Consumption in W | - |
| CEC Standby Consumption in W | 0.5 W |
| Standby Consumption in W | 0.1w |
| Power Consumption No-Sound (ECO On / Off) in W | 26W/35W |
