Audio Technica Dual Moving Coil Cartridge With Neodymium Magnet - AT33EV
| Our Price |
$799.00 CAD |
Or as low as $133.17/month over 6 months. Apply Now
Audio Technica Dual Moving Coil Cartridge With Neodymium Magnet - AT33EV
AT33EV
$799.00
Literature

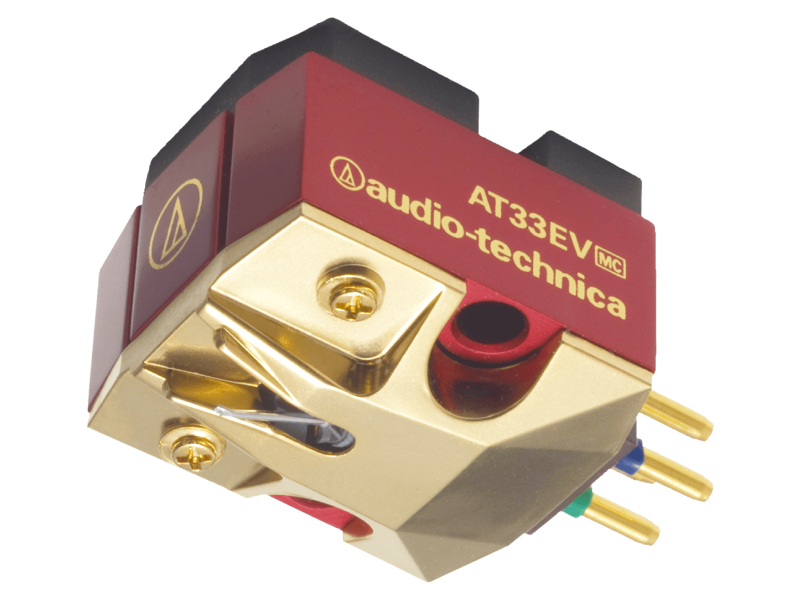

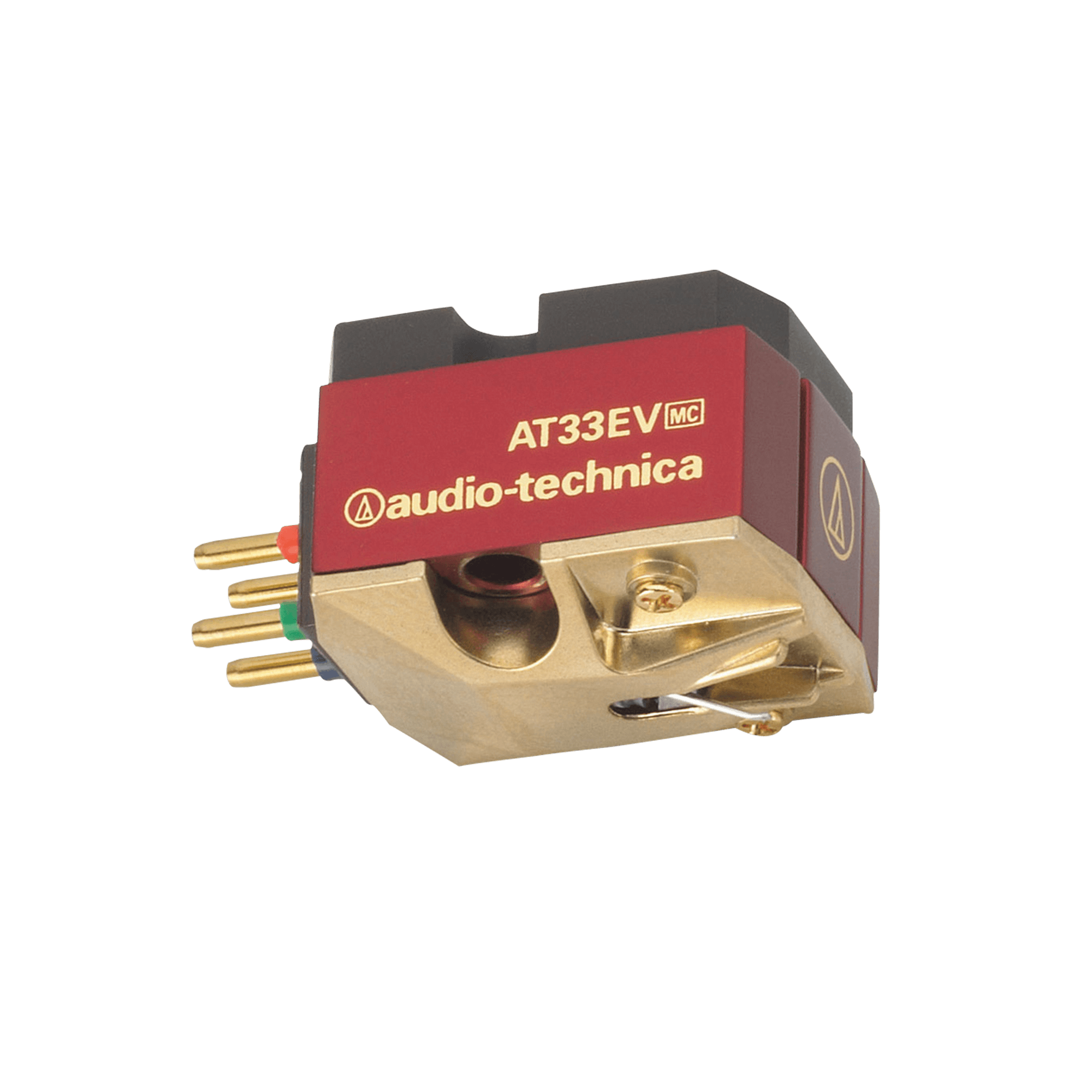

The new half-inch standard mount .3 x .7 mil elliptical AT33EV cartridge features a tapered duralumin cantilever. Dual Moving Coil cartridge design increases channel separation and extends the frequency response range delivering extraordinary audio quality. Internally constructed with neodymium magnet for enhanced magnetic energy and PCOCC wire for pure audio transmission.
| Specifications | |
|---|---|
| Frequency Response | 15-50,000 Hz |
| Channel Separation | 30 dB (1 kHz) |
| Vertical Tracking Angle | 23° |
| Vertical Tracking Force | 1.8-2.2 grams (2.0 grams standard) |
| Stylus Construction | Nude Square Shank |
| Recommended Load Impedance | 100 ohms (with head amplifier connected) |
| Coil Impedance | 10Ω (1kHz) |
| DC Resistance | 10Ω |
| Coil Inductance | 22µH (1kHz) |
| Output Voltage | 0.3 (mV at 1 kHz, 3.54 cm/sec) |
| Output Channel Balance | 0.5 dB (1 kHz) |

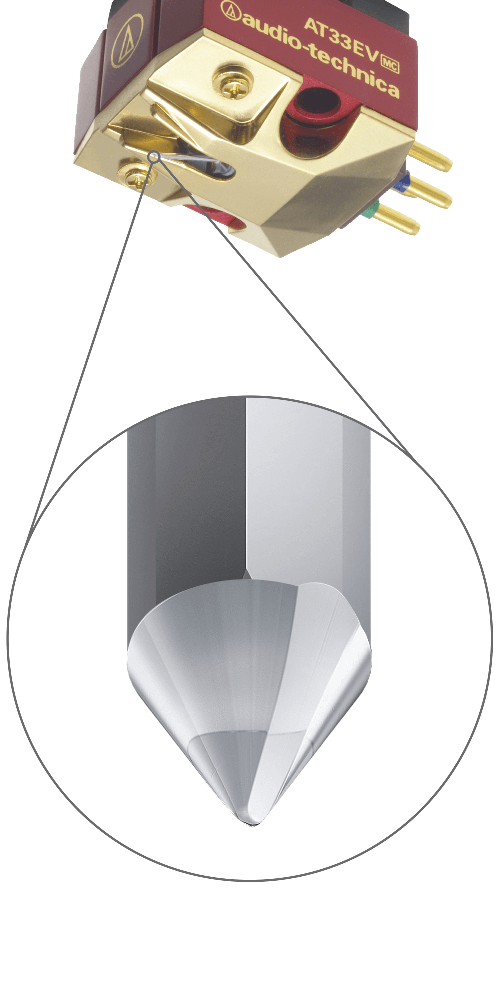

| Stylus Shape | 0.3 x 0.7 mil nude elliptical |
| Cantilever | Duralumin tapered pipe |
| Static Compliance | 40×10-6cm/dyne |
| Dynamic Compliance | 10×10-6cm/dyne (100Hz) |
| Mounting | Half-inch |
| Dimensions | H16×W16.6×D26.5mm |
| Accessories Included | Non-magnetic screwdriver × 1, Washer × 2, Protector × 1, Cartridge installation screws 13 mm × 2 and 19 mm × 2, Nut × 2, Brush × 1, PCOCC lead set × 1 |
| Body Material | Aluminium/Synthetic Resin |
| Mounting Feature | Half-inch mount |
| Stylus Curvature Radius | 0.3 x 0.7 mil |
| Terminal Pins | Brass |
| Type | Dual Moving Coil |
| Weight | 6.9g |
