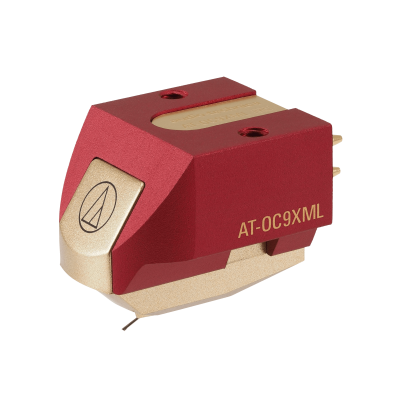

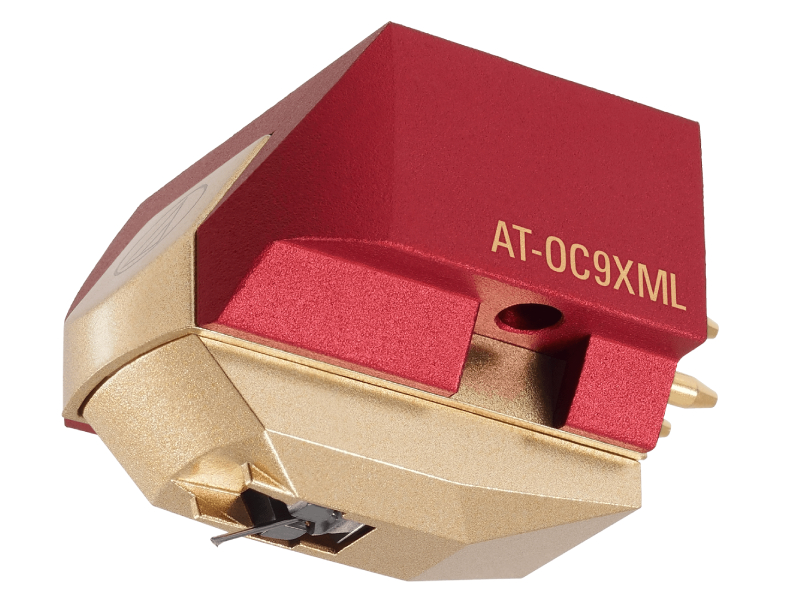

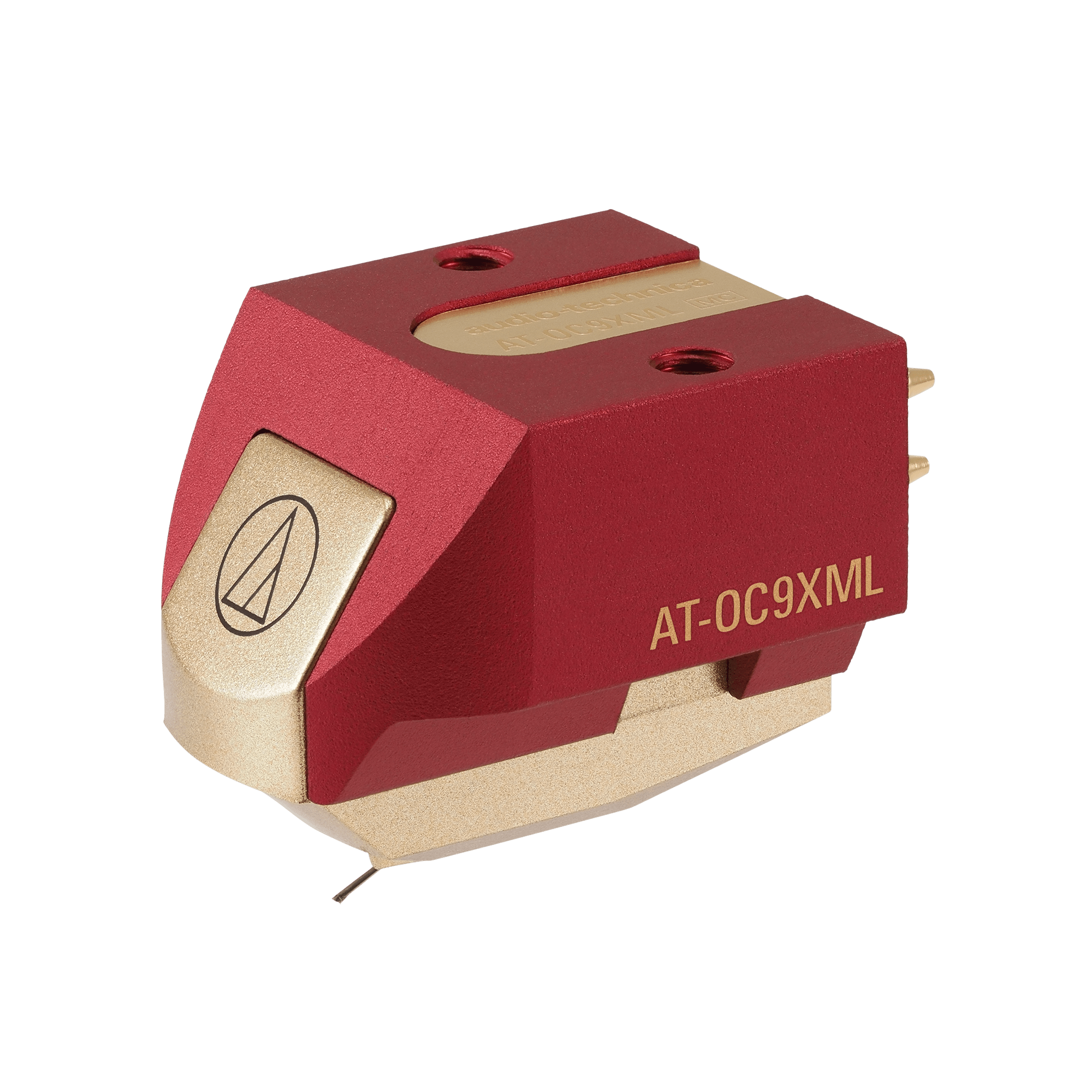

Audio Technica Dual Moving Coil Cartridge With Microlinear Stylus - AT-OC9XML

Price Match Guarantee
Price Match Guarantee
The Power Centre offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.
Our Price $799.00 CAD

Or as low as $133.17/month over 6 months. Apply Now


Availability
Call for availability

Literature

The AT-OC9XML Dual Moving Coil cartridge with Microlinear stylus is designed to provide outstanding channel separation. The Pure Copper by Ohno Continuous Casting (PCOCC) coils ensure pure audio transmission and are aligned in a reverse V-shaped formation to exert less pressure on the stylus, thereby minimizing distortion. Audio quality is further enhanced by a rigid aluminum body that reduces resonance, a neodymium magnet and premium permendur yoke that increase the magnetic energy, and the nude Microlinear stylus on a boron cantilever that tracks the record groove with incredible accuracy, low distortion and high-transient response. The cartridge body has been pre-threaded, enabling it to be mounted to a headshell or integral tonearm with just two screws – no nuts required.

Features

  • Dual Moving Coil design, featuring independent coils for both left and right channels, provides outstanding channel separation
  • The coils are aligned in a reverse V-shaped formation, which exerts less pressure on the stylus, thereby minimizing distortion
  • The cartridge body is pre-threaded, enabling it to be mounted onto the headshell or integral tonearm with just two screws – no nuts required

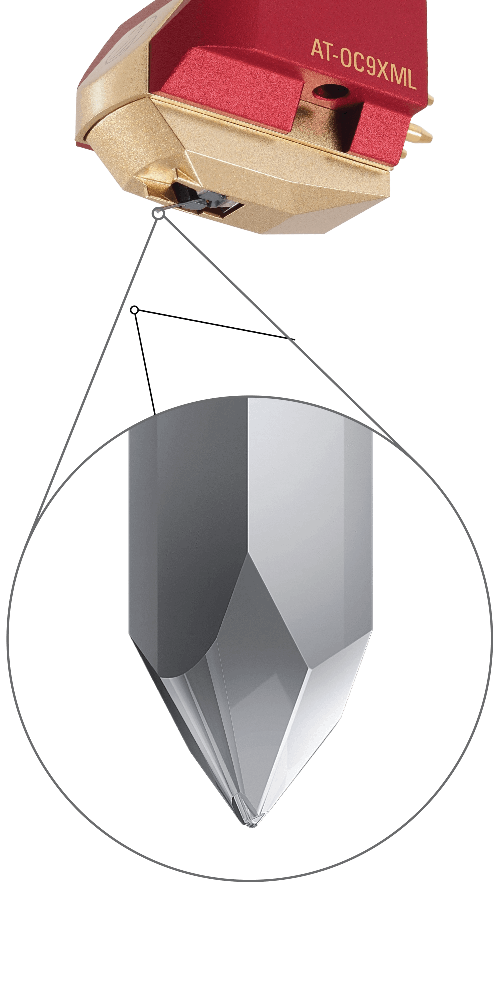

  • Nude Microlinear stylus and boron cantilever provide lower distortion and high transient response
  • A neodymium magnet and a premium permendur yoke with high saturation flux density and outstanding magnetic properties further enhance the concentrated magnetic field of the coil gap
  • Aluminum body minimizes unwanted vibration for reduced resonance and superior audio reproduction
  • Pure Copper by Ohno Continuous Casting process (PCOCC) is used for the coils to achieve pure signal transfer
Specifications
Frequency Response20-47,000 Hz
Channel Separation27 dB (1 kHz)
Vertical Tracking Angle 20°
Vertical Tracking Force 1.8-2.2 g (2.0 g standard)
Stylus ConstructionNude square shank
Recommended Load ImpedanceMin. 100 ohms (when head amplifier is connected)
Coil Impedance12 ohms (1 kHz)
DC Resistance12 ohms
Coil Inductance25 mH (1 kHz)
Output Voltage 0.4 mV (at 1 kHz, 5 cm/sec)
Output Channel Balance1.0 dB (1 kHz)
Stylus ShapeMicrolinear
Cantilever0.28 mm diameter nude boron
Static Compliance20 x 10-6 cm/dyne
Dynamic Compliance16 x 10-6 cm/dyne (100 Hz)
MountingHalf-inch
Cartridge Weight7.6 g
Dimensions17.3 mm (0.68") H × 16.8 mm (0.66") W × 25.7 mm (1.01") D
Accessories IncludedNon-magnetic screwdriver; 2 washers; cartridge installation screws (5 mm × 2, 8 mm × 2, 10 mm x 2, 12 mm x 2); plastic protector; brush
Body MaterialAluminum
ModelAT-OC9XML
Mounting FeatureHalf-inch mount
Stylus Curvature Radius2.2 x 0.12 mil
Stylus SizeNude square shank
Terminal PinsBrass
TypeDual Moving Coil
Weight7.6 g (0.3 oz)
Wire Used for CoilPCOCC
