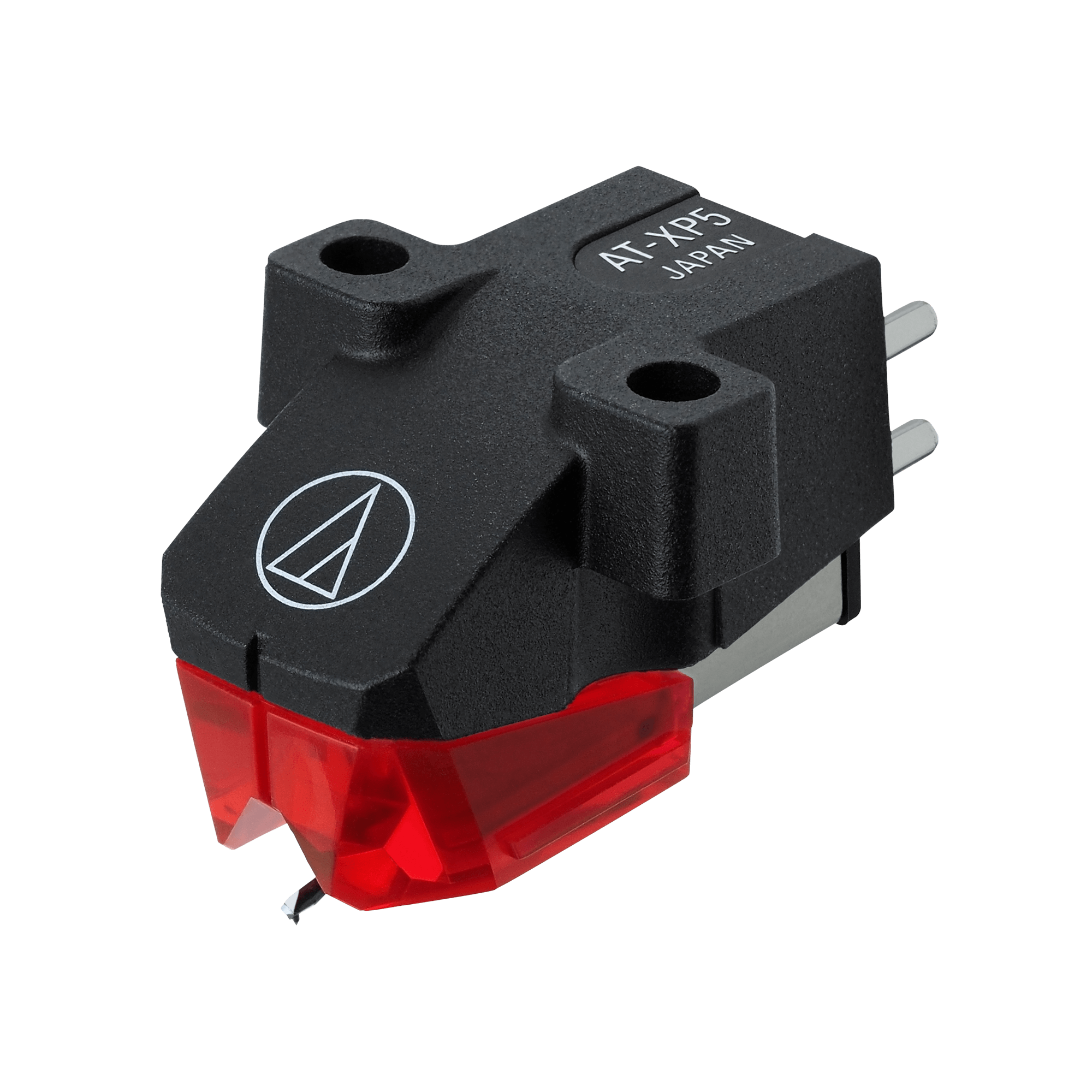

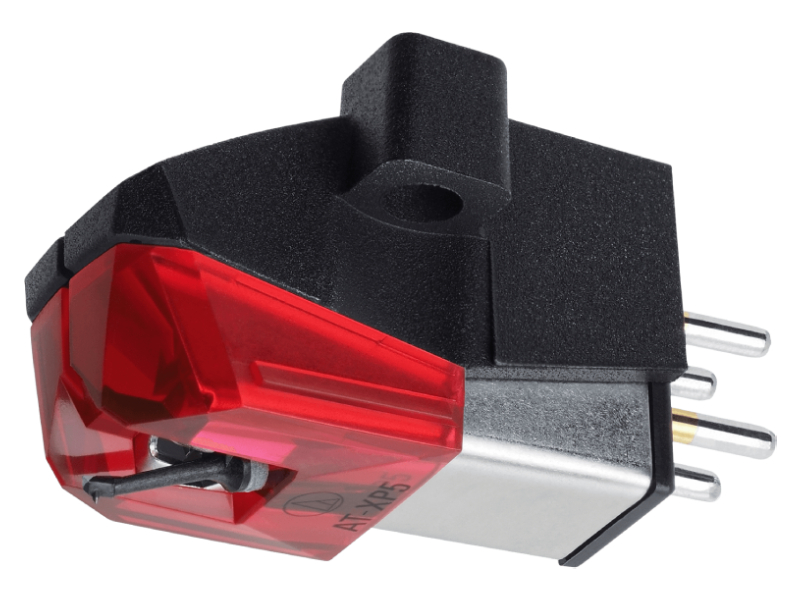

Audio Technica DJ Cartridge - AT-XP5

Price Match Guarantee

The Power Centre offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.

Our Price

$119.00 CAD

Quote Request

Availability
Call for availability

AT-XP5
Best Deal Promise

Description
Features

The AT-XP5 is specially designed for the needs of DJs. This cartridge features a highly-rigid polyphenylene sulfide (PPS)/glass fiber body and a tracking force of 2 to 4 grams. It also offers a powerful output level of 5.5 mV, and its 0.3 x 0.7 mil elliptical bonded stylus tracks the record groove with high accuracy for outstanding audio reproduction. Plus, the cartridge is specifically designed to provide maximum visibility of the stylus tip.

Features

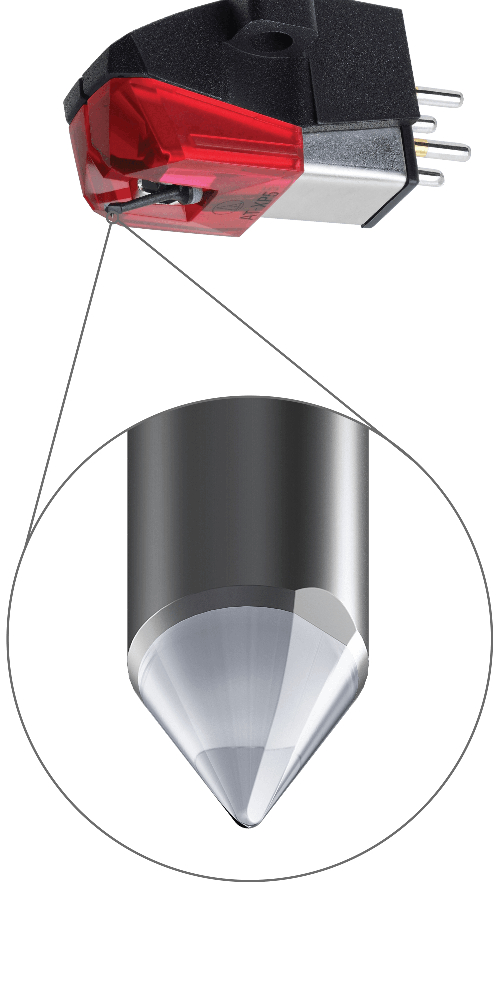

0.3 x 0.7 mil elliptical bonded stylus tip
Highly-rigid polyphenylene sulfide (PPS)/glass fiber body
5.5 mV high-level output
Tracking force of 2.0 to 4.0 grams (3.0 grams standard)
Durable carbon fiber-reinforced ABS cantilever and nylon wire suspension ensure precise tracking
Design offers maximum visibility of the stylus tip
Great tracking and channel separation for high-fidelity sound

Specifications
Frequency Response	20-18,000 Hz
Channel Separation	20 (dB at 1 kHz)
Vertical Tracking Angle	20°
Vertical Tracking Force	2.0-4.0 g (3.0 g standard)
Stylus Construction	Bonded round shank
Recommended Load Impedance	47,000 ohms
Coil Impedance	6.7 k ohms (1 kHz)
DC Resistance	990 ohms
Coil Inductance	1.0 H (1 kHz)
Output Voltage	5.5 mV (1 kHz, 5 cm/sec.)
Output Channel Balance	2.0 dB (1 kHz)
Stylus Shape	0.3 x 0.7 mil elliptical
Cantilever	Carbon fiber-reinforced ABS
Static Compliance	20 x 10-6 cm/dyne
Dynamic Compliance	6.0x10-6cm/dyne (100Hz)
Mounting	Half-inch
Dimensions	17.2 mm (0.68") H × 17.8 mm (0.67") W × 28.3 mm (1.20") D
Accessories Included	Cartridge installation slotted screws 11.0 mm (0.43”) x 2 and 8.0 mm (0.31”) x 2, Washer x 2, Round nut x 2, Non-magnetic screwdriver x 1
Mounting Feature	Half-inch mount
Recommended Load Capacitance	100 to 200 pF
Replacement Stylus	ATN-XP5
Stylus Size	0.3 x 0.7 mil
Type	VM Dual Magnet
Weight	6.2 g (0.22 oz)
