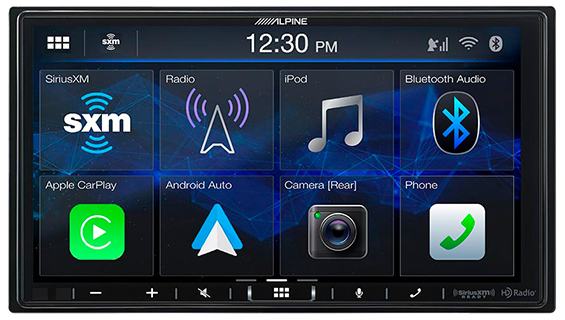

The iLX-407 is the next evolution of the PowerStack™ receiver with HD Radio, HDMI, and Maestro Compatibility for the ultimate sound system builder.
- 7-inch Anti-glare 2-DIN Touchscreen Display
- Shallow Mount Design (2-6/16" Depth)
- PowerStack™ Capable with the KTA-450 and KTA-200M (sold separately)
- Customizable User Interface (29 available widgets/apps)
- Customizable Wallpaper
- Works with Apple CarPlay®
- The Google Assistant is available on Android Auto™
- Bluetooth® built-in for hands-free calling and audio streaming
- SiriusXM-Ready® (SXV300 Connect Vehicle Tuner Kit sold separately; SiriusXM subscription required)
- Built-in HD Radio®
- HDMI Input
- iDatalink® Maestro Connectivity
- 2 RCA Camera Inputs
- Rearview Camera Distance Guide Display
- 7” Touchscreen Receiver/Monitor
- Mounting Bracket
- Wiring harness
- Preout/Camera harness
- Right Angle USB Extension Cable (3.3’ length)
- Microphone (w/ attached 12.5’ cable)
- Quick Reference Guide
- Installation Manual
- Online Registration Information
- Width: 7" (178mm)
- Height: 4" (100mm)
- Depth: 2-6/16" (60mm)
- Screen Size: 7"
- Screen Resolution: WVGA 800 x 480px
- PowerStack™ Capable: Yes
- HDMI Input: 1
- Camera Input: 2 RCA
- USB Input: 1
- 4V Pre-Outs: 3
- Built-in Amplifier: 16W RMS/50W peak x 4
- EQ: 5-Band Graphic
- DAC: 24 Bit
- Subwoofer level control
- High pass crossover/ low pass crossover
- 6-channel time correction
- Audio Playback: AAC, FLAC, MP3, WMA, WAV
- Photo Playback: JPG, PNG, BMP
- Video Playback: AVI, MP4, MPG, MOV, WMV
- CTA-2006 compliant

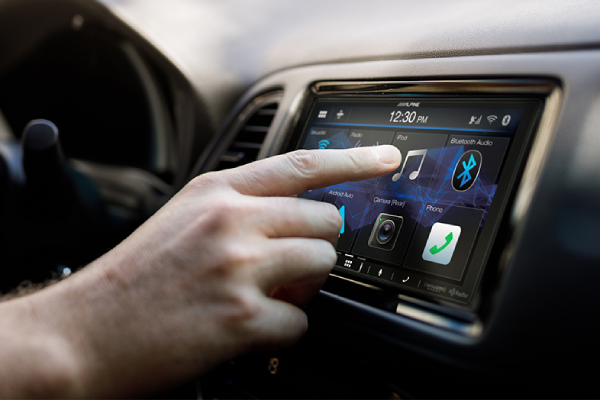

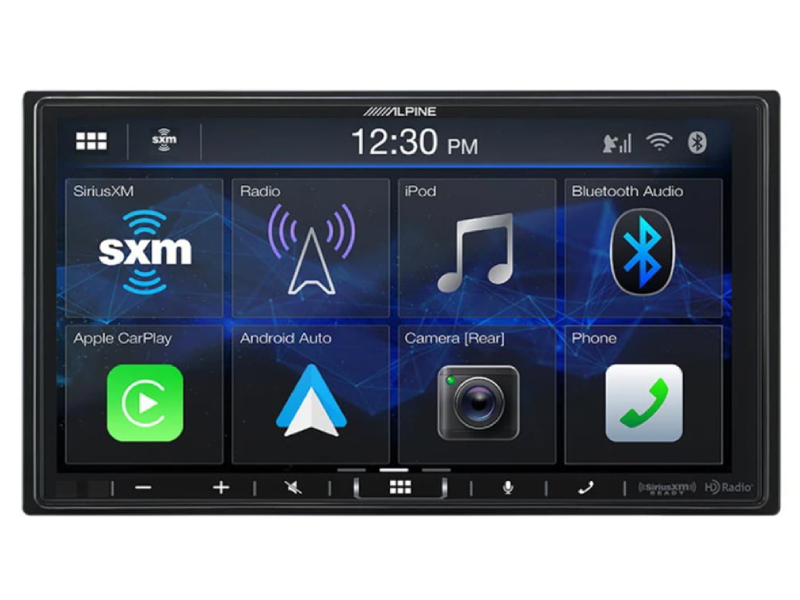

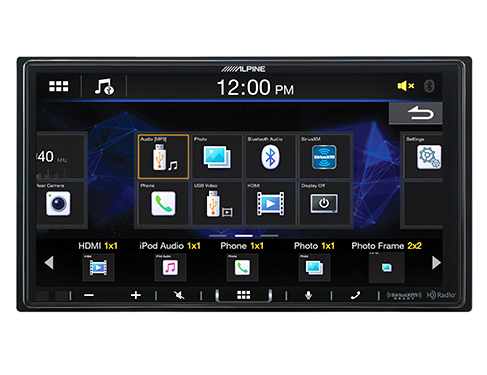

Customize the screen exactly the way you want it by using drag-and-drop motions with your finger to add, remove, or move over 29 available widgets. You can prioritize your three home screens so you can quickly find the apps you want like Apple CarPlay®, Android Auto™, Camera, Bluetooth® functions, and more. Add a customizable wallpaper from your photos through a thumb drive.

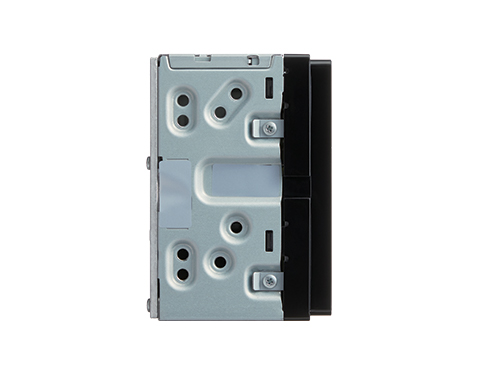

Measuring at only 2.4” deep, the iLX-407 can fit into vehicles that don’t have a lot of space behind the dashboard. The shallow chassis is optimized to mount either the KTA-450 4-channel or KTA-200M Mono Power Pack Amplifiers (sold separately). Alpine’s award-winning PowerStack™ design adds more power to your sound system while occupying the same depth as a traditional 2-DIN radio.
The iLX-407 “Works with Apple CarPlay” and lets iPhone users make and receive calls, access text messages, play music, and get directions in a way that allows them to stay focused on the road. Apple CarPlay is accessed through the capacitive touch screen or the mic button to activate Siri voice control and is compatible with iPhone 5 and later (iPhone must be connected via Apple lightning cable).

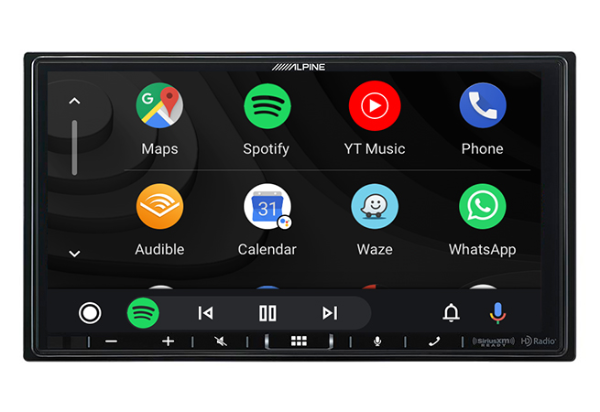

The iLX-407 includes Android Auto and works with the Google Assistant (requires both a USB cable and Bluetooth® connection; requires an Android™ phone running 5.0 [Lollipop] or higher and the Android Auto app). To access the Google Assistant on Android Auto, say "OK Google" or select the mic button. Google Assistant in Android Auto allows users to play their favorite music, get driving directions to their destination, interact with smart home devices and reply to text messages – hands-free.
MORE ENTERTAINMENT OPTIONS

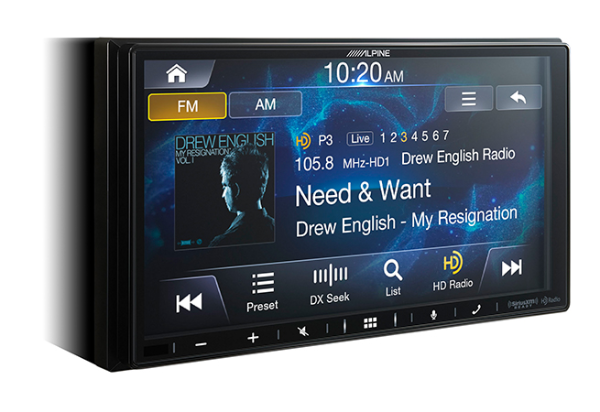

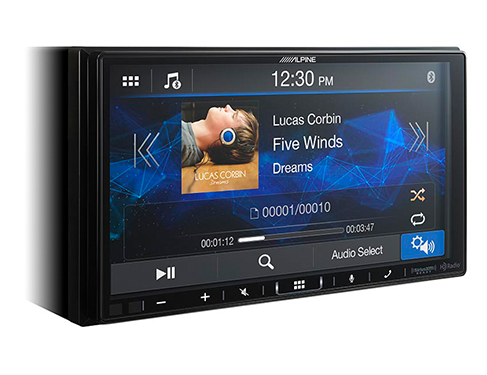

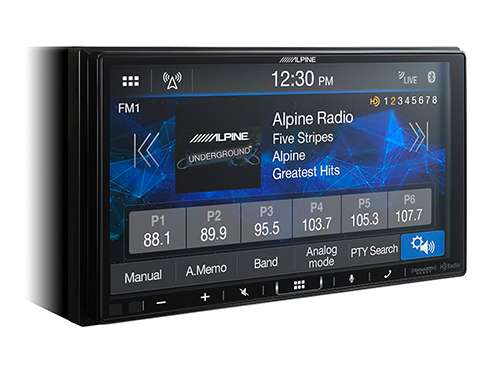

While the iLX-407 is mech-less(no CD/DVD Player),you still have plenty of entertainment options that will make every drive exciting.A rear USB port allows you to listen to your music or video file via USB or connect your smartphone to access your music by searching song title,artist, info, or album.The iLX-407 has built-in HD Radio and can also connect to Pandora Internet Radio through your iPhone or android smartphone. SiriusXM Radio is also available with an optional tuner and paid subscription. And HDMI input is available should you choose to connect a CD Or DVD player for all-digital audio and video connection through a single cable.
RETAINS FACTORY CONTROLS
Upgrading dash technology can often result in a loss of factory functionality. such as climate control and vehical function setting. The iLX-407 is compatible with the iDatalink Maestro Module(sold saparately) so select OEM feaures are retained and vehicle information is displayed on the screen.
ADD A REAR CAMERA AND MORE

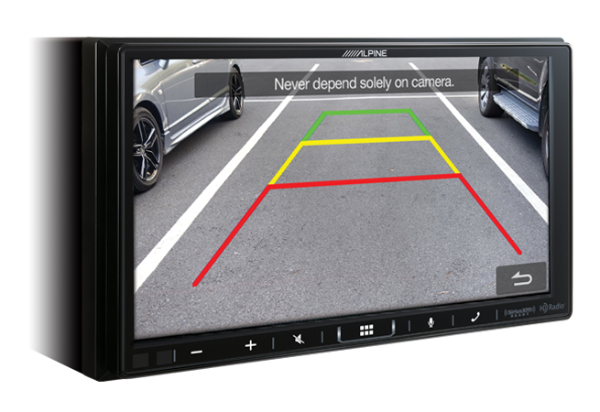

See your drive on a 7-inch,anti-glare screen with dual camera input that allow you to add a front or rear-view camera to your vegicle. The iLX-407 comes with a built-in rearview camera distance guide disply that makes blind sports a distant memory.
EXPENSIVE AUDIO TOOLS

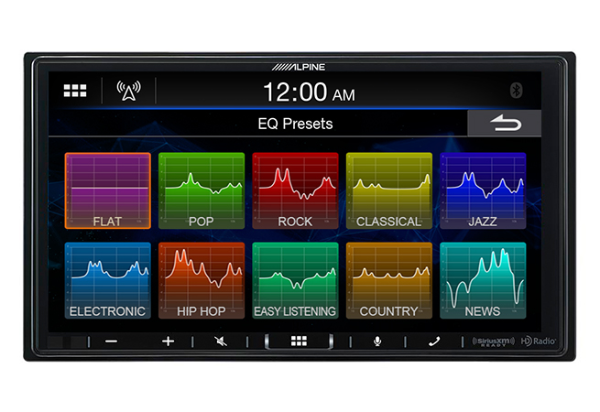

Get the most from your music by using the 5-band graphic equalizer and 6-channel time correction tool to costomize the sound the way you want it. If you're looking for more power, add additional amplifiers using the three sets of true 4V preamp outputs with subwoofers level control on the third set
