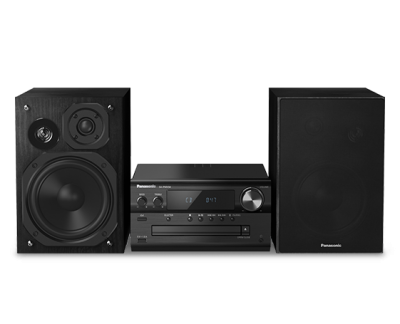

Panasonic True High-Resolution Compact audio - SC-PMX90

Authorized Dealer Price Match Guarantee
Price Match Guarantee
The Power Centre offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.
Our Price $399.99 CAD

Call for availability


Clear and dynamic sound

The PMX90 produces a beautifully expressive, dynamic sound perfectly suited to high resolution audio. This is thanks to its combination of a 3 way speaker design and a silk dome tweeter capable of reaching frequencies as high as 50 kHz.

Natural sound with minimal interference or distortion

Experience music exactly as it was meant to be heard thanks to the LincsDAmp. The latest innovative version of this technology manages to correct issues such as jitter and power supply noise that usually cause distortion in digital music playback.

High quality audio parts unlock the full potential of high-res sound

To get the best sound quality from today‘s high-res audio formats, you need to use the best quality components. This is why Panasonic has left no stone unturned in sourcing only the finest materials for the PMX90 to ensure it's built to make a genuine HiFi difference.


Rich sound from Hi-Res sources

The PMX90 uses a unique DAC controller and USB driver system to ensure you get to hear all the detail and richness of today’s high resolution audio formats such as DSD, FLAC, WAV and AIFF.

Rich sound expression

Bluetooth® ReMaster compensates the signals that are lost due to data compression when streaming Bluetooth® sounds. It gives you high quality playback of sound sources from Bluetooth® compatible devices such as smartphones and tablets.

AUX-IN Auto Play for audio devices & streaming devices

Simply connect your existing audio device or streaming device, such as Chromecast Audio, to AUX-IN. Even if the PMX90 power is turned off, the sound signal from the device will be recognized, the power will be automatically turned on, and music will be played from the AUX terminal.

Experience TV with greatly improved sound quality

The PMX90 is equipped with optical input terminals for easy connection with your TV. Enhance your viewing experience with superb quality sound.

Elegant, compact design

Designed to suit every room decor. Aluminum is used in the main unit’s front panel, top panel, and sound volume dial, to provide a simple, high grade appearance.

Amp TypeLincs D-Amp™ (3rd generation)
RMS Output Power - Front channel60 W per channel (3 ohms, 1 kHz, 10 % THD)
RMS Output Power - Total RMS stereo mode power120 W
Speaker System
Bass expansionBass reflex port
Front speaker - Type3 way, 3 speaker system (bass reflex)
Front speaker - Speaker unitWoofer: Bamboo charcoal PP 14 cmTweeter: Silk dome 1.9 cmUltra tweeter: Piezo 1.5 cm
Playback disc *¹CD-R / RW
FormatCD-DA / MP3
USB standardUSB 2.0 high-speed
Playback formatDSD (2.8 MHz *Does not support 5.6 MHz), MP3, AIFF, AAC,FLAC (up to 192 kHz/24 bit), WAV (up to 192 kHz/24 bit)
Battery chargeOther portable device (1.5 A)
USB-DAC function - Playback formatDSD (2.8 MHz *Does not support 5.6 MHz), MP3, AIFF, FLAC (up to 192 kHz/24 bit), WAV (up to 192 kHz/24 bit)
USB-DAC function - Player application (Windows / Mac OS)Yes
Auto tuningYes
Antenna terminal75 ohm unbalanced
Station presets - FM30 stations
AUX-In Auto PlayYes
Bluetooth - VersionBluetooth® Ver 2.1 + EDR
Bluetooth - ClassClass 2 (2.5 mW)
Bluetooth - Wireless audio playback functionYes
Bluetooth - Remote control functionYes
Bluetooth - CodecSBC, AAC
Bluetooth - Multi-pairingYes (MAX 8 Devices)
Panasonic Music Streaming App - Supported OSiOS*³(Bluetooth), Android*³(Bluetooth)
Super Sound EQ, Super Bass SoundD.Bass
XBS MasterYes
High-Res AUDIOYes
EQ - Preset4 Preset
EQ - ManualBass / Treble
Re-Master - BluetoothYes
USB PortUSB Type-A x1 / USB Type-B x1
Audio INRCA Pin Jack (AUDIO IN) / 3.5 mm Stereo mini (AUX IN) / Opt-In (for LPCM)
Audio OUTPhones (3.5 mm)
Speaker terminalScrew type
Power supplyAC 120 V, 60 Hz
Auto OffYes
Power consumption - Normal Use40 W*⁴
Power consumption - Normal Standby0.25 W*⁴
Power consumption - Bluetooth Standby0.35 W*⁴
Timer - SleepYes
Timer - ClockYes
Timer - PlayYes
Dimensions, Weight
Main unit - Dimensions (W x H x D)211 x 114 x 267 mm
Main unit - Weight2.8 kg
Speaker unit - Dimensions (W x H x D)161 x 238 x 262 mm
Speaker unit - Weight2.6 kg
NOTE*1 Playability may vary depending on the contents, discs and quality of the recording.*2 Only a USB flash drive. Playback is not possible from a portable device (Apple, Android, etc.) using a USB extension cable.*3 Download on the App Store. Download on Google Play™.*4 Specifications are subject to change without notice. All numbers given here are approximate.
LEGAL NOTICERecording and playback of content on this (or any other) device may require permission from the copyright owner. Panasonic has no authority to and does not grant you that permission and explicitly disclaims any right, ability or intention to obtain such permission on your behalf. It is your responsibility to ensure that your use of this or any other device complies with applicable copyright law in your country.
